Solar Module
Ground at
Positive Pole:

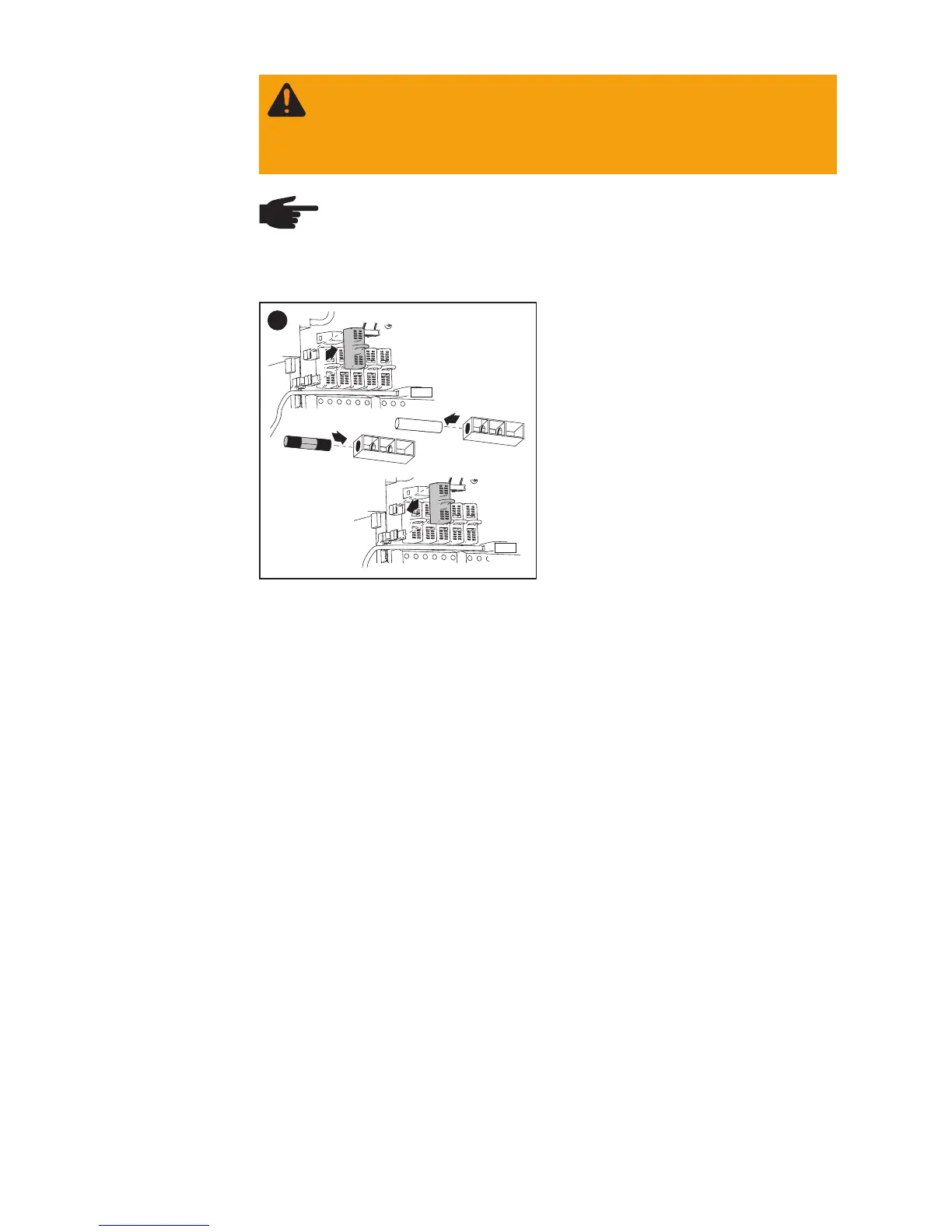

Inserting
String fuses
into the Froni-
us IG Plus
(continued)
NOTE
- Insert fuses only with a fuse cover in the respective fuse
holder
- Do not operate the Fronius IG Plus without fuse covers
1
4
2
3
2
DC-
DC-
WARNING! An electrical shock can be fatal. Danger from DC
voltage from solar modules.
Fuse covers are for installation purposes only. They offer no
protection against contact.
