Fronius IG Plus 3.0-1 User Manual

62
Selecting the
public grid
(continued)

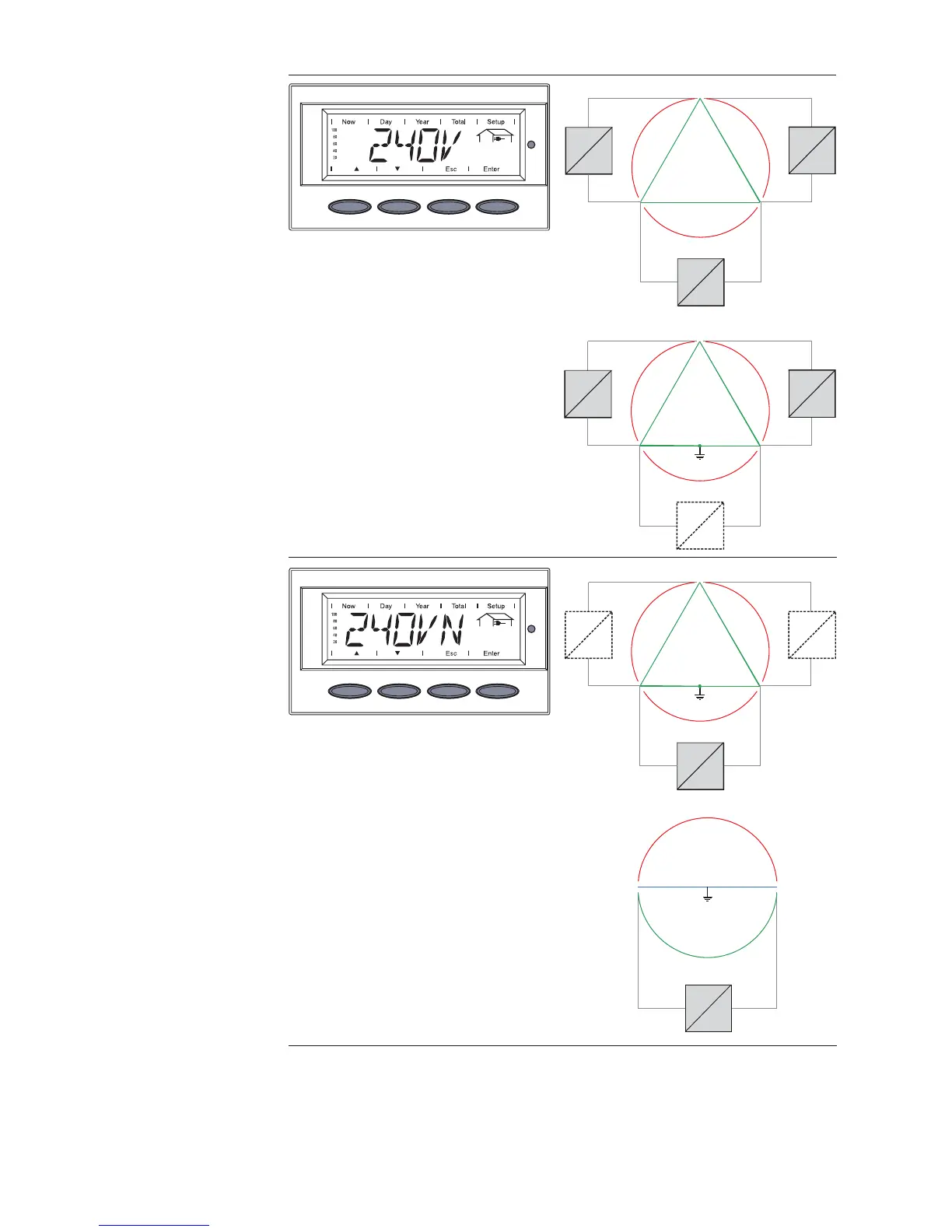

Grid voltage 240 V Delta
No neutral conductor in the system
Neutral conductor monitoring is deactivated
240 V
240 V
240 V
120 °
120 °
12 0 °
L1
L2L3
=
~
=
~
=
~
Grid voltage 240 V: 120 V Stinger
Neutral conductor available in the system
Neutral conductor monitoring is activated
240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~
180 °
120 V 120 V
240 V
L1 L2
N
=
~
Grid voltage 240 V: 120 V Split Phase
Neutral conductor available in the system
Neutral conductor monitoring is activated
240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~

Fronius IG Plus 3.0-1 Specifications

General

Protection class	IP 44
Max. output current	13 A
Nominal AC voltage	230 V
THD	< 3%
Max. DC voltage	500 V
Maximum Input Voltage	500 V
Number of MPP Trackers	1
Operating Temperature Range	-20°C to +55°C
Cooling	Convection
Warranty	5 years
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC voltage range	180 - 264 V
