Connections, Switches, and Mechanical Compon-
ents

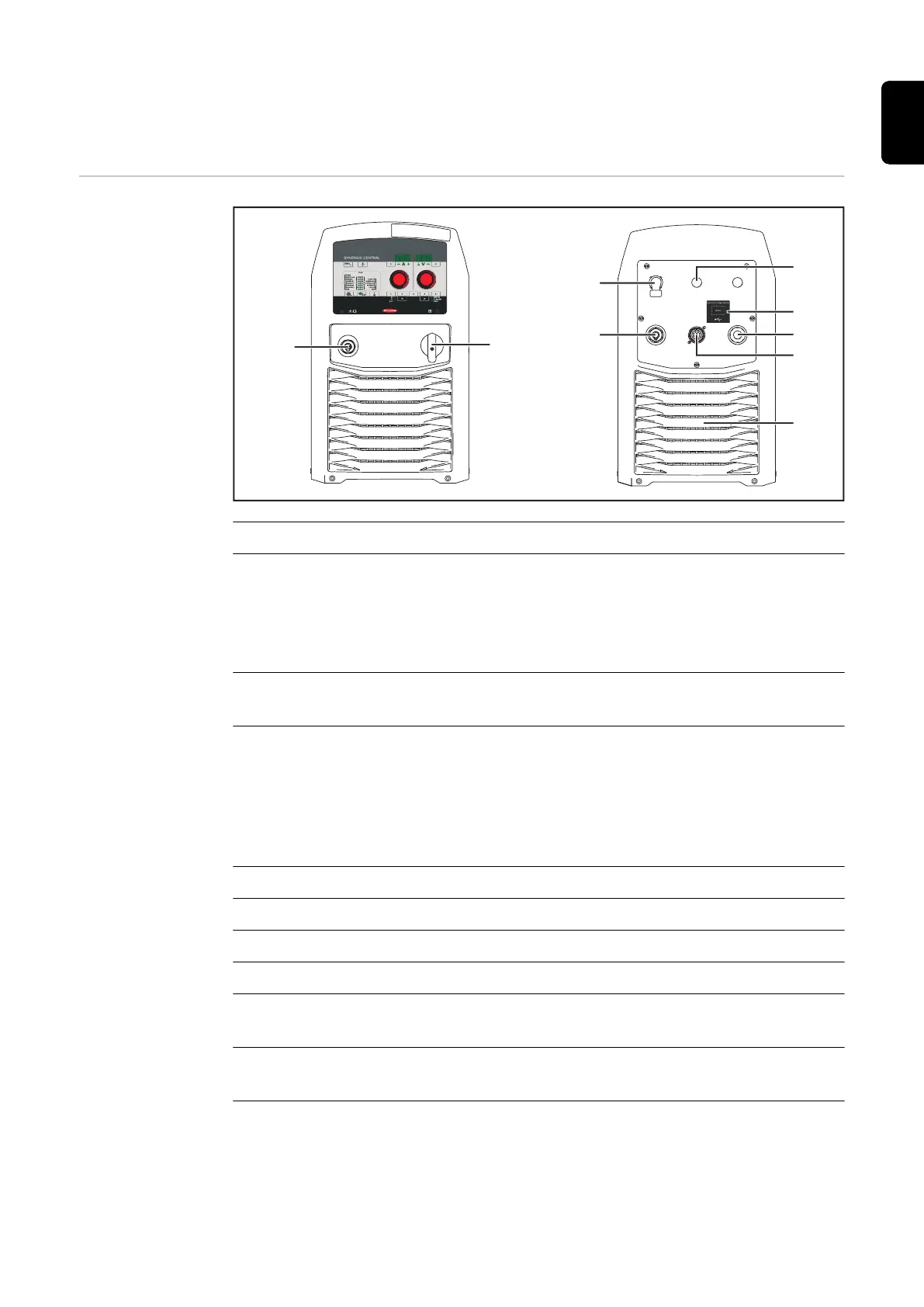

TransSteel
4000/5000
Pulse connec-
tions
(1)
(2)
(3)
(4)
(6)
(7)
(9)
(8)
(5)
No. Function
(1) (-) Current socket with bayonet latch
Used for
-
Connecting the grounding cable for MIG/MAG welding
-
Connecting the electrode cable or grounding cable for manual metal
arc welding (depending on the type of electrode used)
(2) Power switch
For switching the power source on and off
(3) (+) Current socket with bayonet latch
Used for
-
Connecting the mains cable from the interconnecting hosepack for
MIG/MAG welding
-
Connecting the electrode cable or grounding cable for manual metal
arc welding (depending on the type of electrode used)
(4) Gas pre-heater socket (option)
(5) Automatic Interface (option)
(6) EASY DOCUMENTATION label
(7) Mains cable with strain relief
(8) LocalNet connection
Standardized connection for wirefeeder (interconnecting hosepack)
(9) Air filter
Pull out from the side for cleaning
39
EN-US
