MIG/MAG Operating Modes
General
WARNING!
Operating the device incorrectly can cause serious injury and damage to prop-
erty.
▶
Do not use the functions described here until you have fully read and under-
stood the Operating Instructions.
▶
Do not use the functions described here until you have fully read and under-
stood all of the Operating Instructions of the system components, especially
the safety rules.
For details of the meaning, settings, setting range and units of the available
welding parameters (e.g., gas pre-flow time), please refer to the "Setup paramet-
ers" chapter.

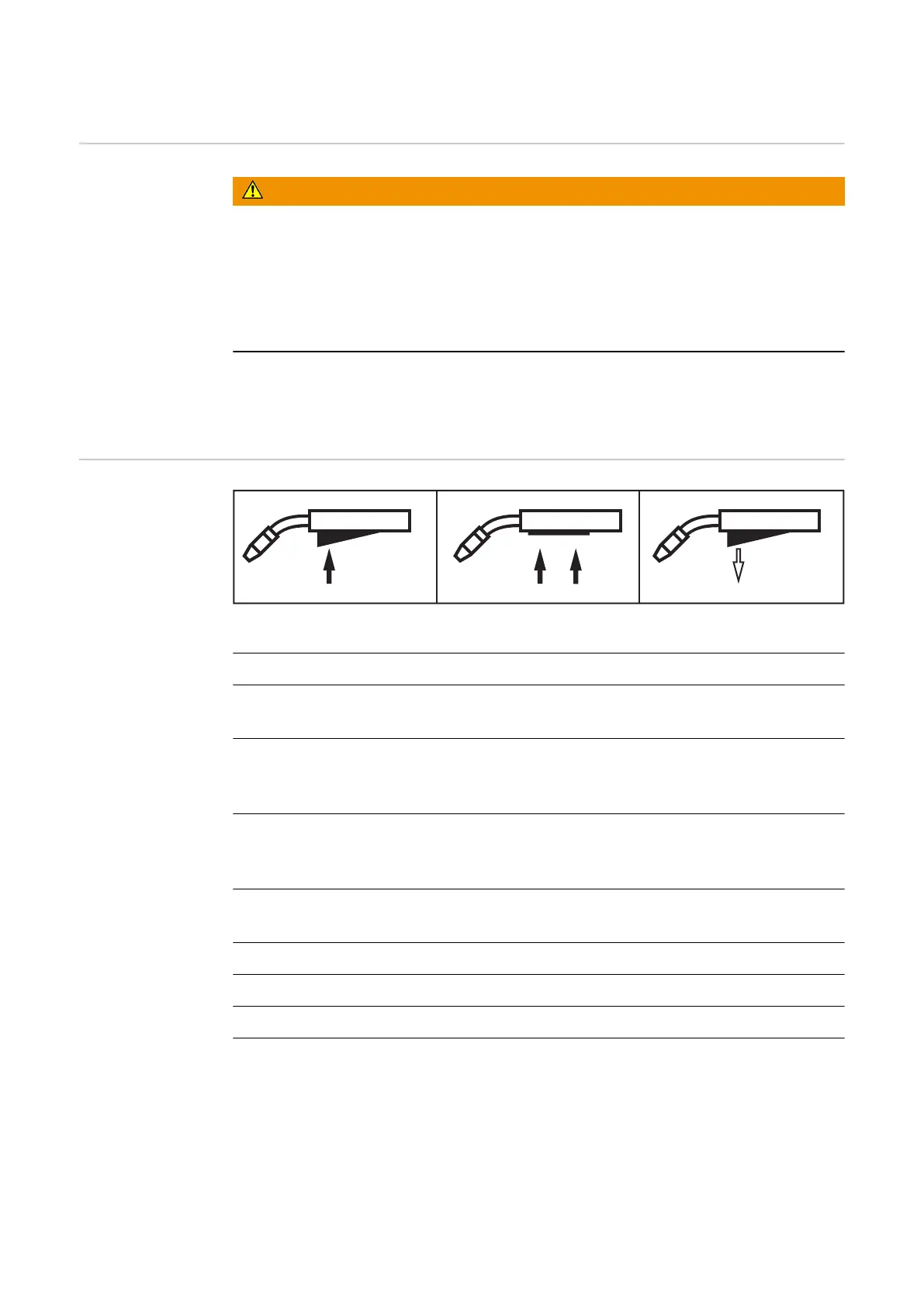

Symbols and ex-
planations
Press the torch trigger | Hold the torch trigger | Release the torch trigger
GPr Gas pre -flow time
I-S Starting current
Can be increased or decreased depending on the application
SL Slope
Starting current is continuously lowered as far as the welding current and
the welding current as far as the final current
I Welding current phase
Even heat input into the parent material whose temperature is raised by
the advancing heat
I-E Final current
To fill up end-craters
GPo Gas post-flow time
SPt Spot welding time / interval welding time
SPb Interval pause time
