Fuji Electric Faldic-a RYS-R Series User Manual

8-9
MHT260a (Engl.)
(2) Manual operation
By turning on the bit 0 in word +4 [RUN] of WB area (as factory set), the motor can be rotated.
For the WB area, see 5.9 WB area. If the top address setting is 50, specify "B540" at bit 0 in word +4. If a signal is allocated to CN1, check
the +24 [V] DC power supply to CN1.
(a) Supply power to the amplifier.
(b) Make sure a voltage is outputted from the +24 [V] DC power supply.
(c) Check the connection of forced stop signal (Beware of NC contact input.)
(d) Turn on the run command [RUN] signal.
By the keypad panel of amplifier, make sure the LEDs light according to the run command.
(e) On the keypad panel, the sequence mode recognized by the amplifier can be checked.
(f) The motor starts running by turning on the bit 2 in word +4 [FWD] signal after turning on bit A in word +4 [X1].
At factory setting, the motor speed is 100 [r/min] (basic para. 1 setting). Make sure that the current position indication changes in words +2,
+3.
(g) Turning off the CONT7 [FWD] stops the motor whether CONT12 [X1] is on or not.

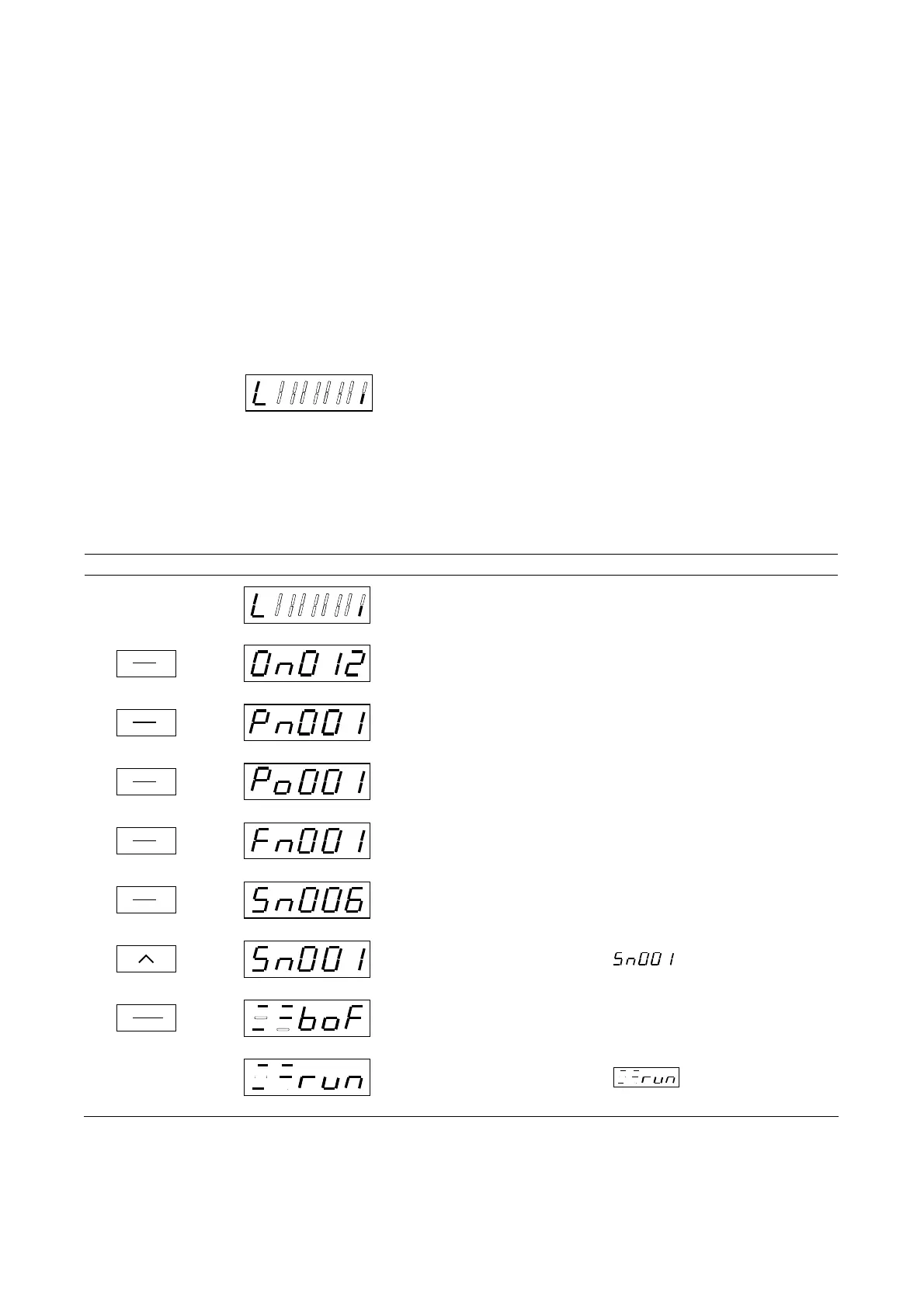

Key operation Indication display (example) Remark
Example of monitor mode display
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
The MODE key selects a mode.
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
Change the mode.
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
Change the mode.
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
Change the mode.
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
Change the mode.
By the ∧ key or ∨ key, select [ ].
SHIFT
SHIFTSHIFT
SHIFT
ENT
ENTENT
ENT
Holding down the ENT key for at least 1 [s] causes the sequence display.
Turning on [RUN] signal displays [ ].
