8-8
MHT260a (Engl.)
8.5 T-link (T-link direct connection)
The T-link direct connection type amplifier operates according to the on/off status of WB area.
(1) Control input signal
At factory setting, no signals are allocated to CN1.
Test running can be made without connecting to CN1.
For safety purpose, allocate the following signals before usage. The forced stop (10) is an NC contact input, and requires the control power
+24 [V] DC.
・Forced stop (10)
・Origin LS (6)

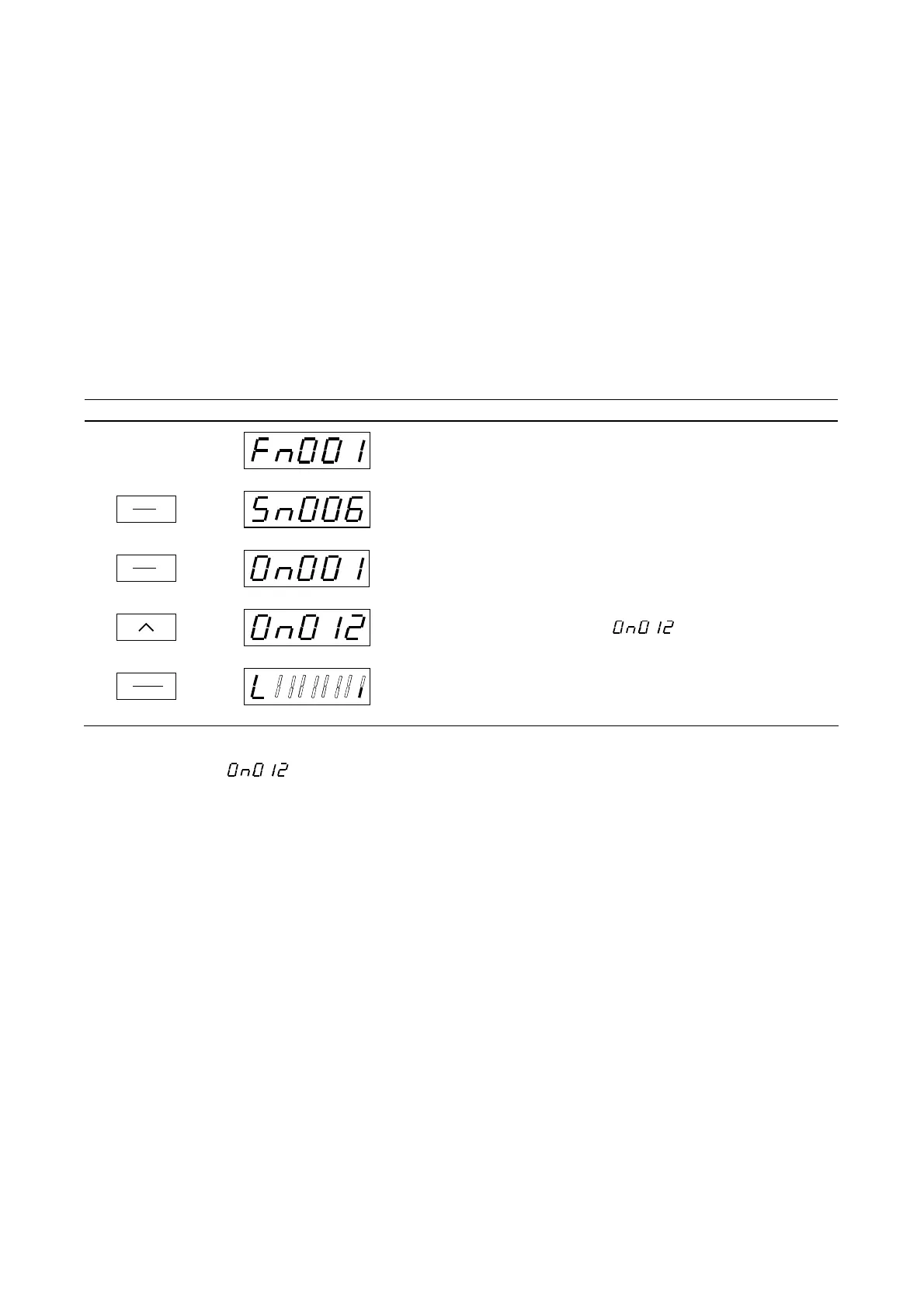

Key operation Indication (example) Remark
Example of test running mode display
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
The MODE key selects a mode.
MODE
MODEMODE
MODE
ESC
ESCESC
ESC
Select the monitor mode.
By the ∧ key or ∨ key, select [ ].
SHIFT
SHIFTSHIFT
SHIFT
ENT
ENTENT
ENT
Holding down the ENT key for at least 1 [s] allows to check the input signal
on/off.
If a control input signal on CN1 turns on, the corresponding LED lights.
The input signal display [
] in the monitor mode is updated in real-time.
To Next Page
