2. INSTALLATION AND BEFORE START OF
OPERATION OF THE FLOW TRANSMITTER

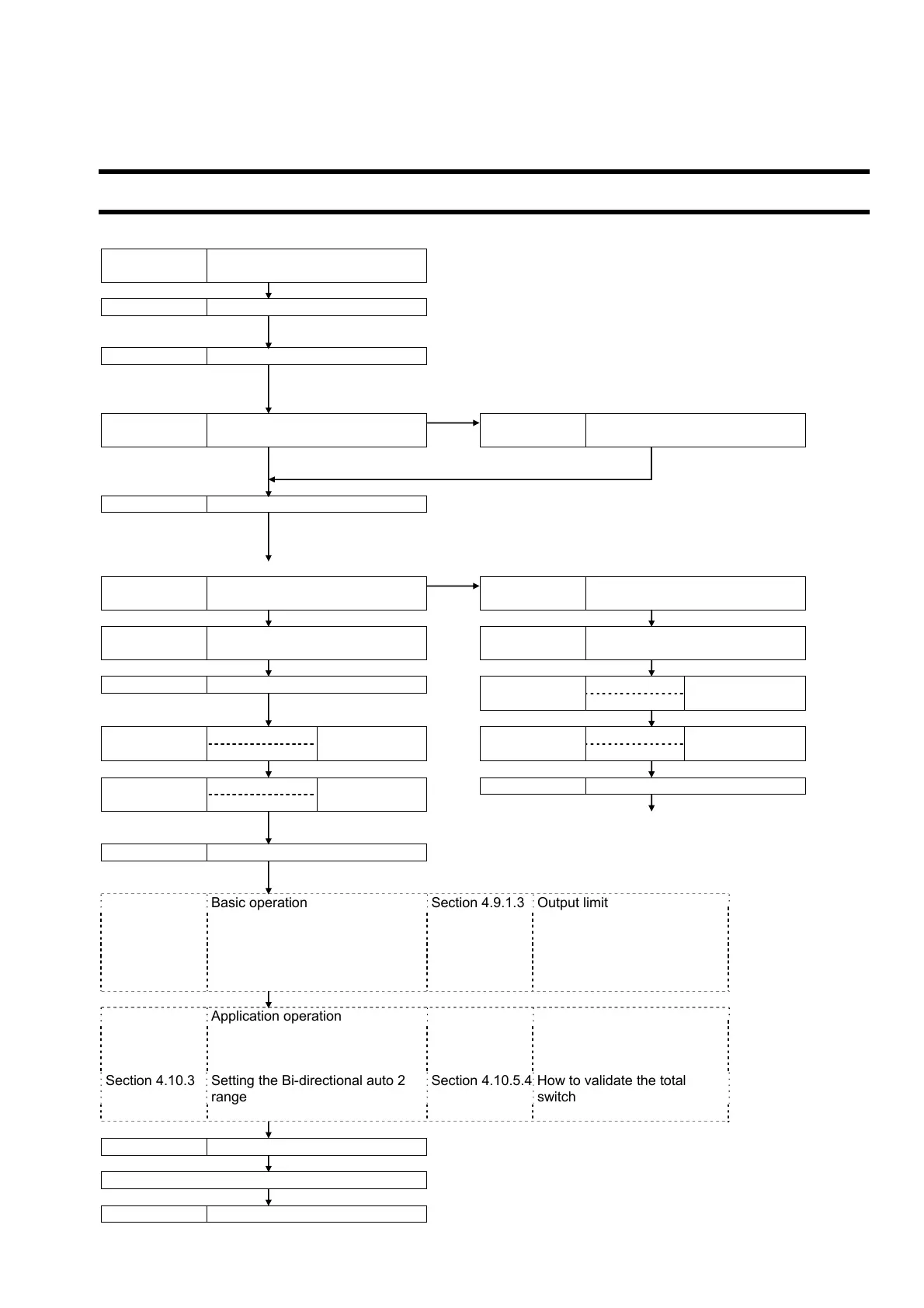

2.1. Outline of installation procedure
Install the flowmeter according to the following procedure.
Section 3.2
Section 3.3
Installation of flow transmitter
Flow transmitter wiring
Power ON * Check the power supply specifications and wiring before
turning on the power. (Refer to “1.2.Check on type and
specifications”.)
Section 4.4 Parameter protection * Metric system is selected for unit.
* The initial display language is English. Switch the languages
as required.
NG When Y or C is selected for the 12th digit
Section 4.6
Checking and Setting of Piping
Specifications/Detector
Section 4.6.2 Piping parameter setting method
OK When A or B is selected for the
12th digit
Section 5 Mounting of detector * Be careful not to mount the sensor units with wrong mounting
dimension. Mount it with the dimension displayed at the
process setting of the piping parameter. (Refer to “5.
Mounting of detector”.)
NG (LED display is red)
Section 6.5.1.3 Checking the RAS information
Section 6.5.2
Displaying the data in
maintenance mode
OK (LED display is green)
Section 6.5.2
Displaying the data in
maintenance mode
Check the data display
Check the data display AGC U
45% or more
AGC D
AGC U
45% or more
P/H U
Outside the range
of 5528 to 6758
AGC D P/H D
P/H U
5528 to 6758
Section 6.5.6 Checking received waveforms
P/H D
Contact Fuji Electric’s service representative.
Section 4.7 Zero Adjustment *
Before performing zero point adjustment, check that the pipe
is filled with fluid, the fluid is in still state, and that the
measurement status is normal.
Basic operation Section 4.9.1.3 Output limit * Check A, B for
the 12th digit of
code symbol
only.
Section 4.8 Setting of unit Section 4.9.2 Setting thee
Section 4.9.1.1 Setting of flow rate range (single
range)
Section 4.9.3 Setting the DO output
Section 4.9.3.1 How to validate the total pulse
output
Section 4.9.1.2 Setting of analog output at error
(Burnout)
Section 4.9.4 Setting the LCD indication
Application operation
Section 4.9.1 Setting of flow rate range Section 4.10.5.2 How to validate the alarm
output
Section 4.10.1 Setting automatic 2 ranges
Section 4.10.2 Setting the Bi-directional range Section 4.10.5.3 Setting the flow switch
Section 4.10.3 Setting the Bi-directional auto 2
range
Section 4.10.5.4 How to validate the total
switch
Section 7.3 ORDERING INFORMATION
Run (Measurement)
Section 6 CHECK AND MAINTENANCE
Note) Set the parameter protection to OFF before you change settings or perform zero adjustment.
To Next Page
