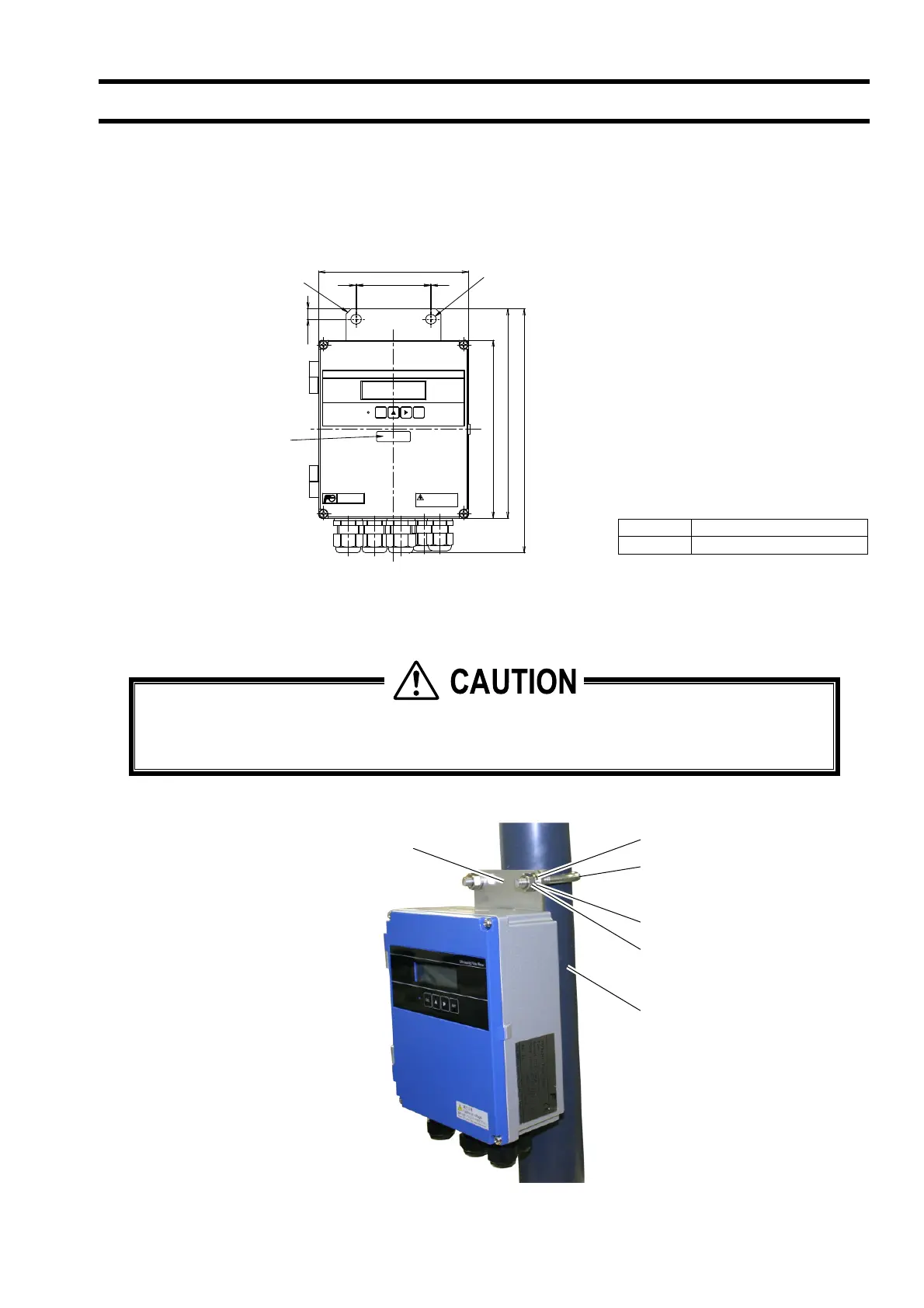

3.2. Installation of flow transmitter
The flow transmitter may be mounted on a wall or 2B pipe stand (option).
3.2.1. Wall mounting (Flow transmitter : FSV···S (IP66))
For wall mounting, use two M8 bolts.
Drill holes according to the mounting hole dimensions shown below, and fasten the flow transmitter using the M8 bolts.
電源を切断してからカバーを開けて下さい。
Power off when you open the cover.
Ultrasonic Flow Meter
ENT
ESC
DELTA-C
TIME
Caution（hi voltage）
高圧注意
70
1
1
142
10
170
200
（233）
Mounting hole 9 × 10
Mounting plate
Stainless tag
(option)
3.2.2. 2B pipe stand mounting (Flow transmitter : FSV···S (IP66))
When mounting on 2B pipe, be sure to use a complete set of fixtures (U bolt, support fixture, plain washer,
spring washer, nut) furnished if optionally designated. Tighten the nut by hand. If any support fixture is not used
or if the assembly is excessively tightened by tool, the wall mounting fixture may be deformed.
Mount the instrument on 2B pipe stand as illustrated below.
Norminal Standard tightening torque
M8
12.5 [N

m]
2B pipe stand
U bolt (M8)
Plain washer
Spring washer
Nut
Support fixture
CAUTION
