Fuji Electric Time Delta-C FSV-2 User Manual

-8-

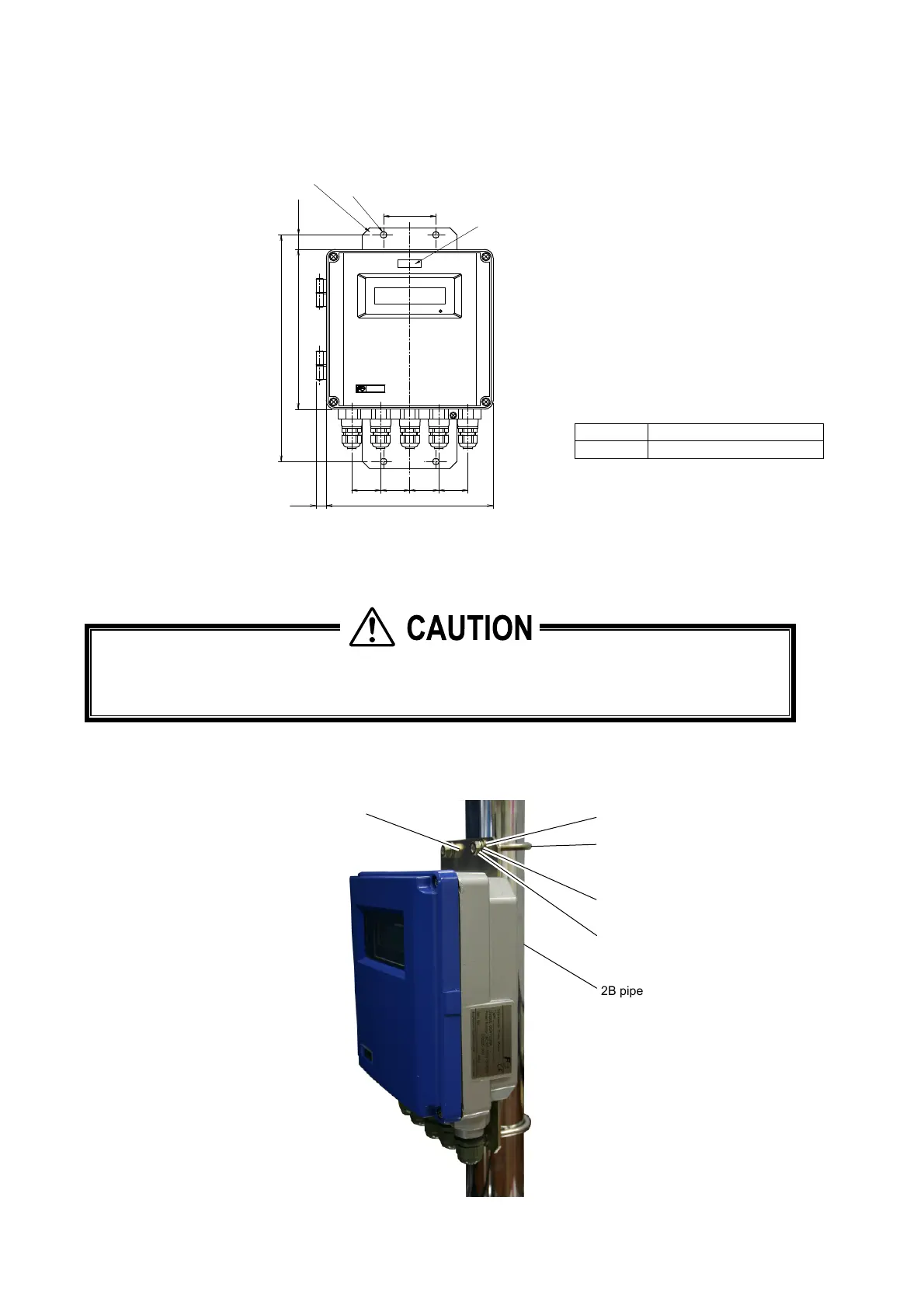

3.2.3. Wall mounting (Flow transmitter : FSV···H (IP67))
For wall mounting, use four M8 bolts.
Drill holes according to the mounting hole dimensions shown below, and fasten the flow transmitter using the M8 bolts.
DELTA‑C
TIME
ULTRASONICFLOWMETER
STATUS
72
220
40
40
4040
312
14
230
20
Mounting hole 2-φ9
Mounting plate
Stainless tag
(option)
3.2.4. 2B pipe stand mounting (Flow transmitter : FSV···H (IP67))
When mounting on 2B pipe, be sure to use a complete set of fixtures (U bolt, support fixture, plain washer,
spring washer, nut) furnished if optionally designated. Tighten the nut by hand. If any support fixture is not used
or if the assembly is excessively tightened by tool, the wall mounting fixture may be deformed.
Mount the instrument on 2B pipe stand as illustrated below.
Norminal Standard tightening torque
M8
12.5 [N

m]
CAUTION
2B pipe stand
U bolt (M8)
Plain washer
Spring washe
r
Nut
Support fixture
