-78-
5.1.1. Mounting of detector
For sensor spacing, select either method in advance.
 Calculate from flow transmitter
Turn ON the flow transmitter.
Enter the piping information, etc described in Section 4.6.2, and display it.
Display example: PROCESS SETTING S=16 ( 48mm)
During wiring work, be sure to turn the power off.
Calculate from our website.
Address http://www.fujielectric.com/ products/instruments/products/flowmeter/top.html
 Calculate from the CD attached to the equipment.

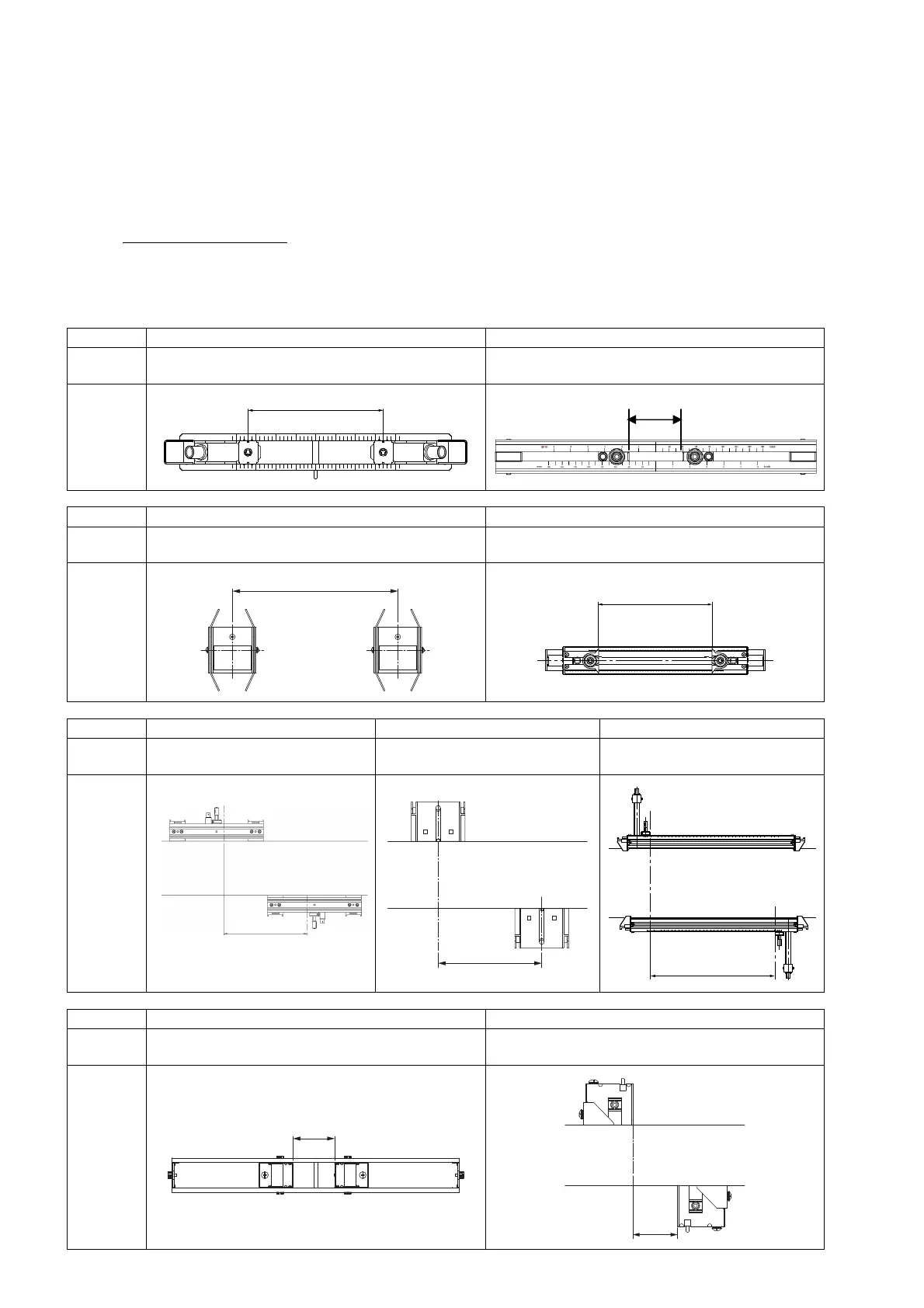

5.1.2. Image figure of mounting dimension
Type FSS, FLS_12, FLS_22 FSSC
Mounting
method
V method V method
Mounting
dimension
Mounting dimension
Mounting size
Type FSSE, FSG_50, FSG_51 FSSD, FSD22, FSD32
Mounting
method
V method V method
Mounting
dimension
Mouting size
Mounting dimension
Type FSSC FSSE, FSG_50, FSG_51 FSSH, FSD32
Mounting
method
V method V method V method
Mounting
dimension
Mouting size
Mounting dimension
Type FSG_31, FSG_32 FSG_41
Mounting
method
V method Z method
Mounting
dimension
Mounting size
Mouting
size
Mounting size
