5.2. Selection of mounting method

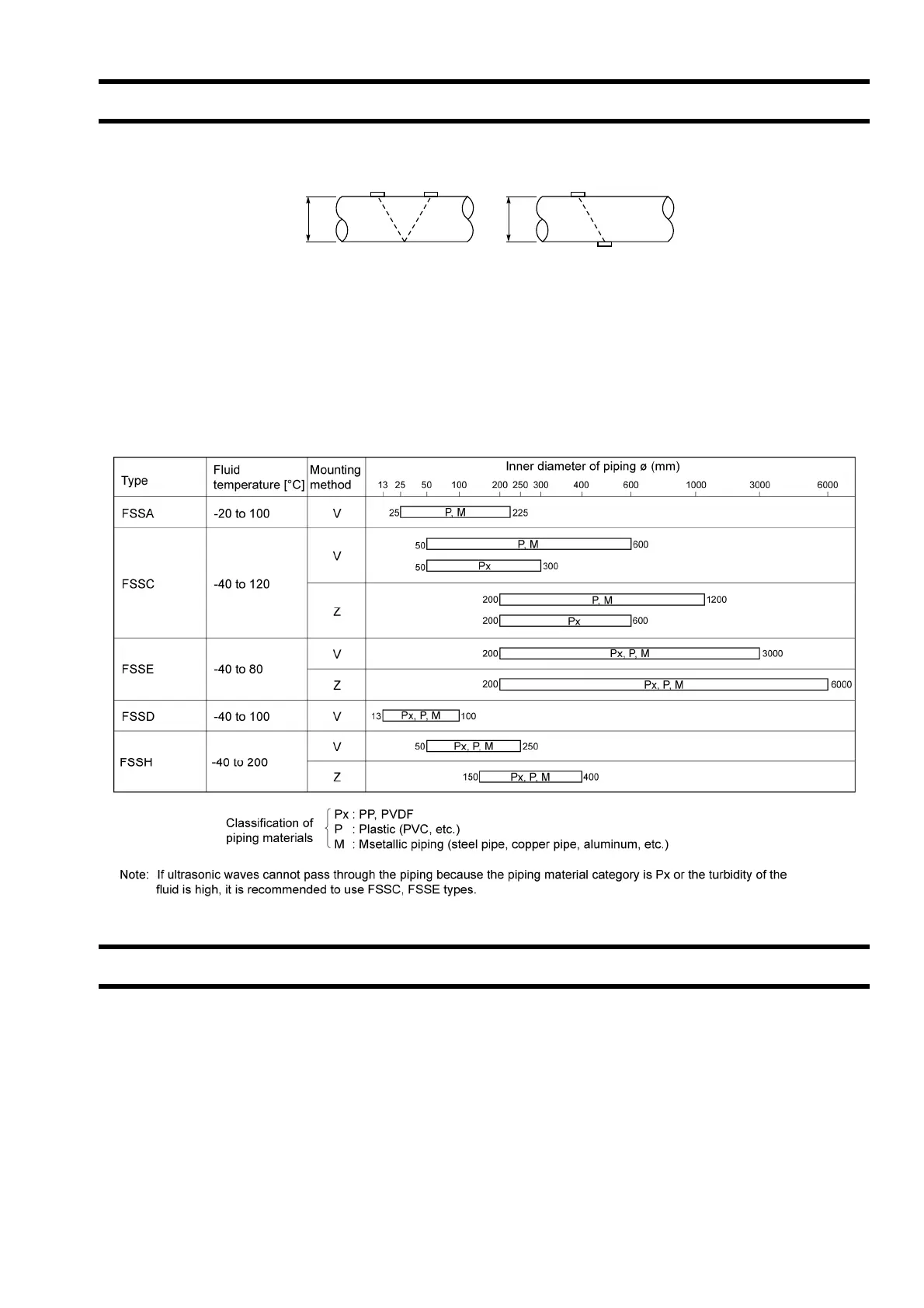

There are 2 methods for mounting the detector; V method and Z method. (See Fig. 5-1.)
Detector
D
V method
Detector
D
Z method
Fig. 5-1 Mounting method
The Z method should be used in the following cases.
Where a V mounting space is not available.
When measuring fluid of high turbidity such as sewage.
When the pipe has a mortar lining.
Piping is old and presumed to have a deposit of a thick layer of scales inside the piping.
Selection standard
The Z method for large size sensor is recommended for outer diameter 300mm or more.
5.3. Mounting method on the pipe
Refer to the separate instruction manual “ULTRASONIC FLOWMETER DETECTOR”
