-47-

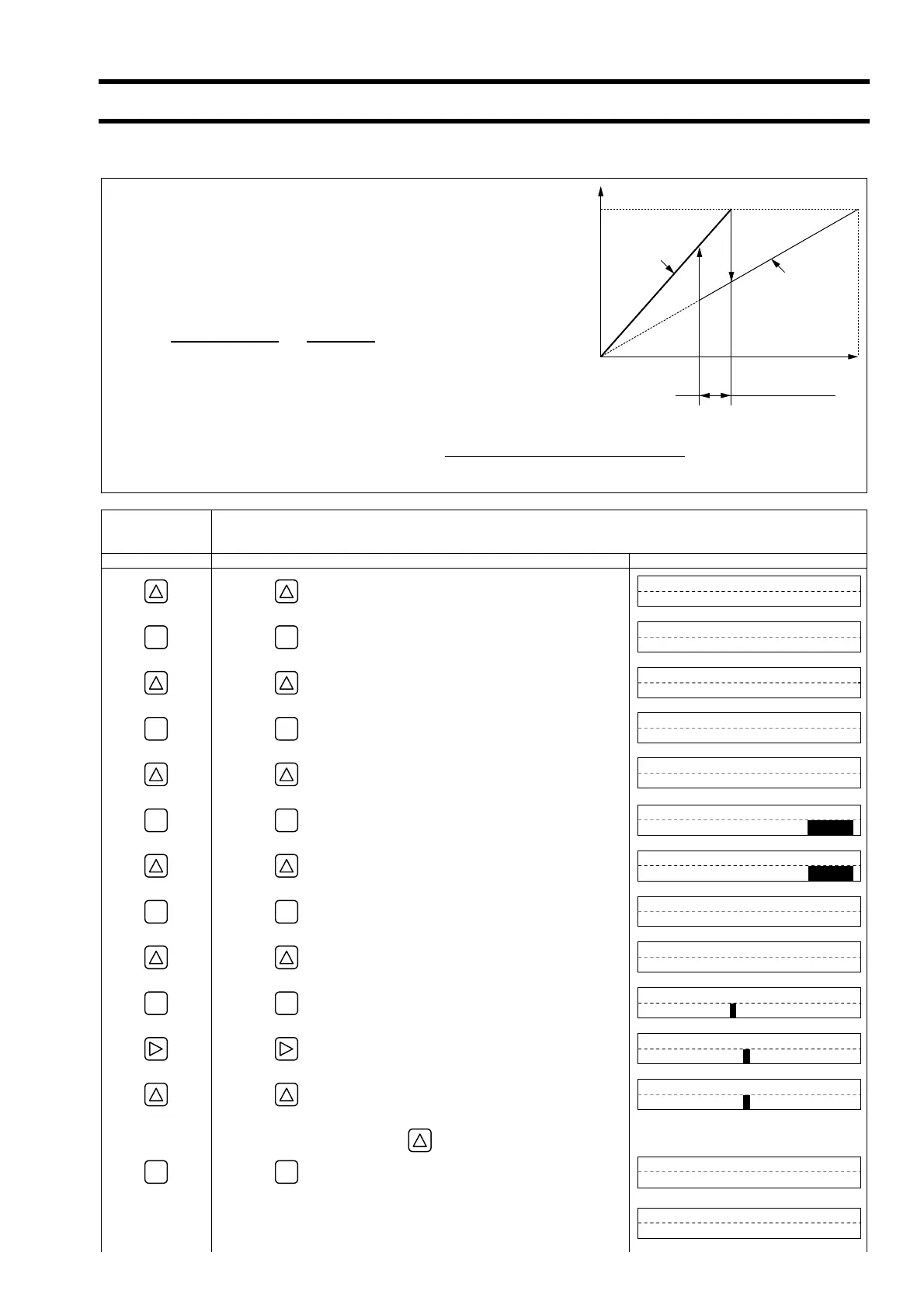

4.10. Application operation of parameter
4.10.1. Setting automatic 2 ranges
Description
The function carries out a measurement while changing over the range
according to the flow rate.
The current output changes with the action range as illustrated on the right.
The hysteresis can be set to between 0 and 20% of the smaller range.
Upon setting DO1 and/or DO2 to "FULL SCALE 2", a contact outputs "FULL
SCALE 2" action. Select “ACTIVE ON” or “ACTIVE OFF” separately. (See
4.10.5.)
Settable range: 0.3 to 32 [m/s] in terms of flow velocity in piping for any of
FULL SCALE1 and FULL SCALE2.
* Preset PIPE PARAMETER and FLOW UNIT.
* If a value beyond the settable range is inputted, "INPUT ERROR" appears
and then last setting is resumed.
* If "FLOW UNIT" has been changed after setting the range, redo the range
setting.
* When FULL SCALE2 is not used (in the case of single range), set “0” to
FULL SCALE2.
<Note> The flow rate unit is as selected by "FLOW UNIT". Before setting range, set the "FLOW UNIT". (See 4.8.2.)
For actual keying, refer to the typical operation indicated below. Set the protection to OFF beforehand. (See Section 4.4.1.)
Operation
(example)
Set “AUTO 2” to “RANGE TYPE”, 10[m
3
/h] to “FULL SCALE1”, and 60[m
3
/h] to “FULL SCALE2”.
Set “RANGE HYS.” to 7%.
* Preset “PIPE PARAMETER” and “FLOW UNIT”.
Key operation Description Display
▼
Press the key twice to display “OUTPUT SETUP”.
OUTPUT SETUP
ENT
▼
Press the
ENT
key once to display “ZERO ADJUSTMENT”.
ZERO ADJUSTMENT
SET ZERO
▼
ENT
▼
▼
Press the
key for 4 times to display “RANGE”.
Press the
ENT
key once to display “KIND”
Press the
key once to display “RANGE TYPE”
RANGE
KIND
FLOW RATE
RANGE TYPE
SINGLE RANGE
ENT
▼
Press the
ENT
key twice to blink the cursor.
RANGE TYPE
SINGLE
▼
Press the key once, and select “AUTO 2”.
RANGE TYPE
AUTO 2
ENT
▼
Press the
ENT
key once to display “RANGE TYPE”.
RANGE TYPE
AUTO 2
▼
Press the key once to display “FULL SCALE1”.
FULL SCALE1
20.0000 m3/h
ENT
▼
Press the
ENT
key once to blink the cursor on the 2nd line.
FULL SCALE1
0020.0000 m3/h
▼
Press the key several times to align the cursor to “2”.
FULL SCALE1
0020.0000 m3/h
▼
Press the key several times to change to “1”.
Note) To change the decimal point position, align the cursor with a place
to change to, and press the
key.
FULL SCALE1
0010.0000 m3/h
ENT
▼
▼
▼
▼
Press the
ENT
key once to register.
FULL SCALE1
COMPLETE
↓
――― FULL SCALE1 has been registered. ―――
FULL SCALE1
10.0000 m3/h
20mA
4mA
FULL SCALE1
FULL SCALE2
Hysteresis
To Next Page
