-46-

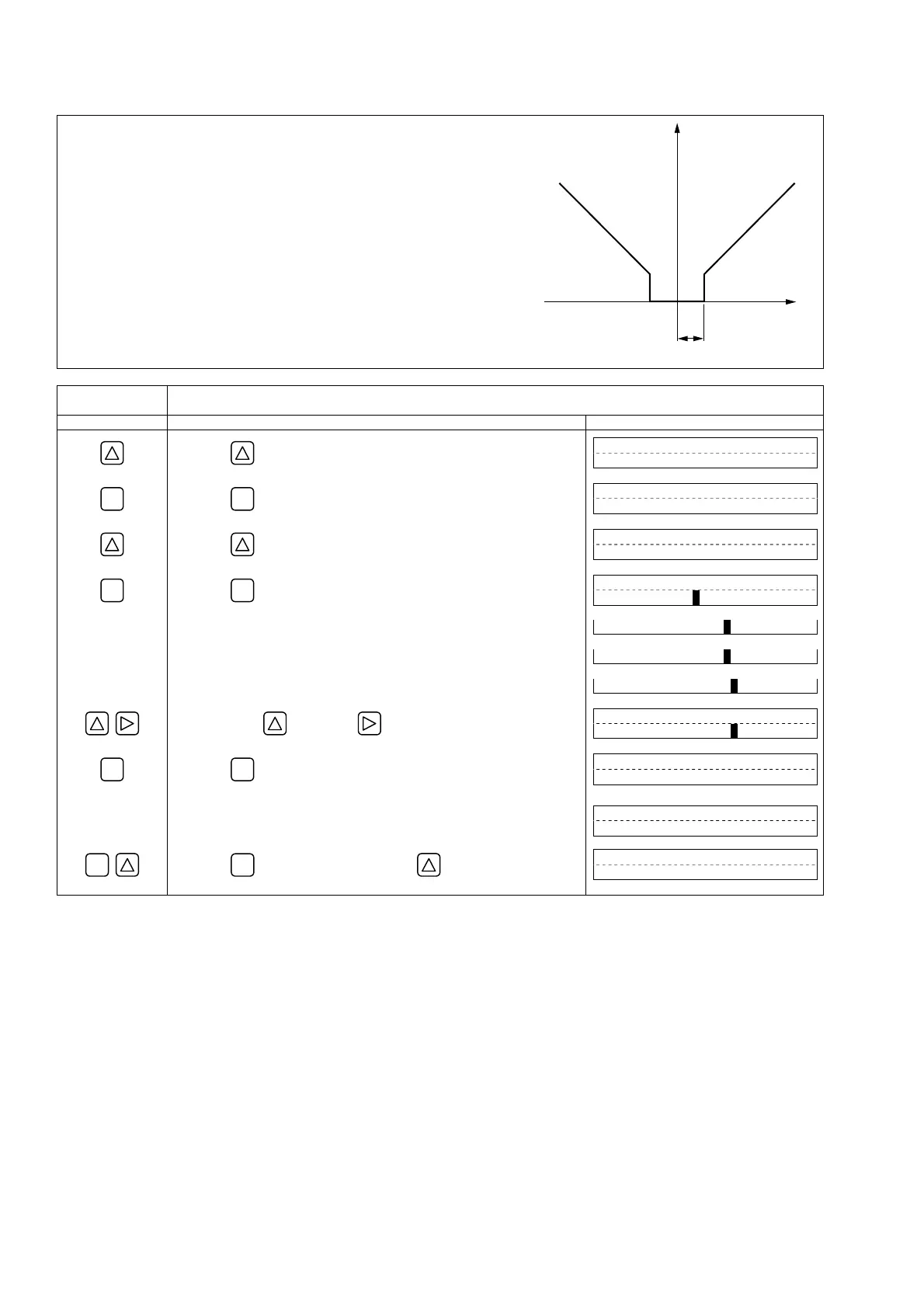

4.9.6. Setting the low flow rate cutting
Description
The output can be cut when the flow rate is too small.
Effective for indication, analog output (4-20mA) and total operation.
Settable range: 0 to 5 [m/s] in terms of flow velocity.
(Factory set: 0.150 [m
3
/h])
Note 1) As required, set the low flow rate cut because the flow meter may read a
flow rate when the fluid in the piping is moving on account of convection,
etc. even if the valves are closed.
Note 2) The flow rate unit is as selected by "FLOW UNIT" in "MEASURE SETUP".
(See 4.8.2.)
For actual keying, refer to the typical operation indicated below. Set the protection to
OFF beforehand. (See Section 4.4.1.)
Operation
(example)
Set the low flow rate cut point to 0.5 [m
3
/h].
Key operation Description Display
▼
Press the key twice to display “OUTPUT SETUP”.
OUTPUT SETUP
ENT
▼
Press the
ENT
key once to display “ZERO ADJUSTMENT”.
ZERO ADJUSTMENT
SET ZERO
▼
Press the key twice to display “CUT OFF”.
CUT OFF
0.150 m3/h
ENT
▼
Press the
ENT
key once to blink the cursor.
CUT OFF
0000.150 m3/h
0000.150 m3/h
0000.550 m3/h
0000.550 m3/h
▼
Set “0.5” by the key and the key.
CUT OFF
0000.500 m3/h
ENT
▼
▼
▼
▼
Press the
ENT
key once to register.
CUT OFF
COMPLETE
↓
――― CUT OFF has been registered. ―――
CUT OFF
0.500 m3/h
ESC
Press the
ESC
key once and then press the key for 3 times to enter
the measurement mode.
0.000 %
0.000 m3
Output
Flow rate
Low flow cut setting value
To Next Page
