CHAPTER 3
Small Configuration
Installing the Optical/Tributary Shelf
FNC-7500-0061-200
Issue 1, May 2009
FLASHWAVE 7500 Release 6.1
Equipment Installation
3-40
Fujitsu and Fujitsu Customer Use Only
5 Identify the eight flange mounting holes on the side of the Optical/Tributary shelf. See
Figure 3-24 [p. 3-40].
6 Using eight pan-head Phillips M4 screws (8 mm long) on each side, secure the left and right
shelf flanges to the Optical/Tributary shelf as shown in Figure 3-19 [p. 3-35].

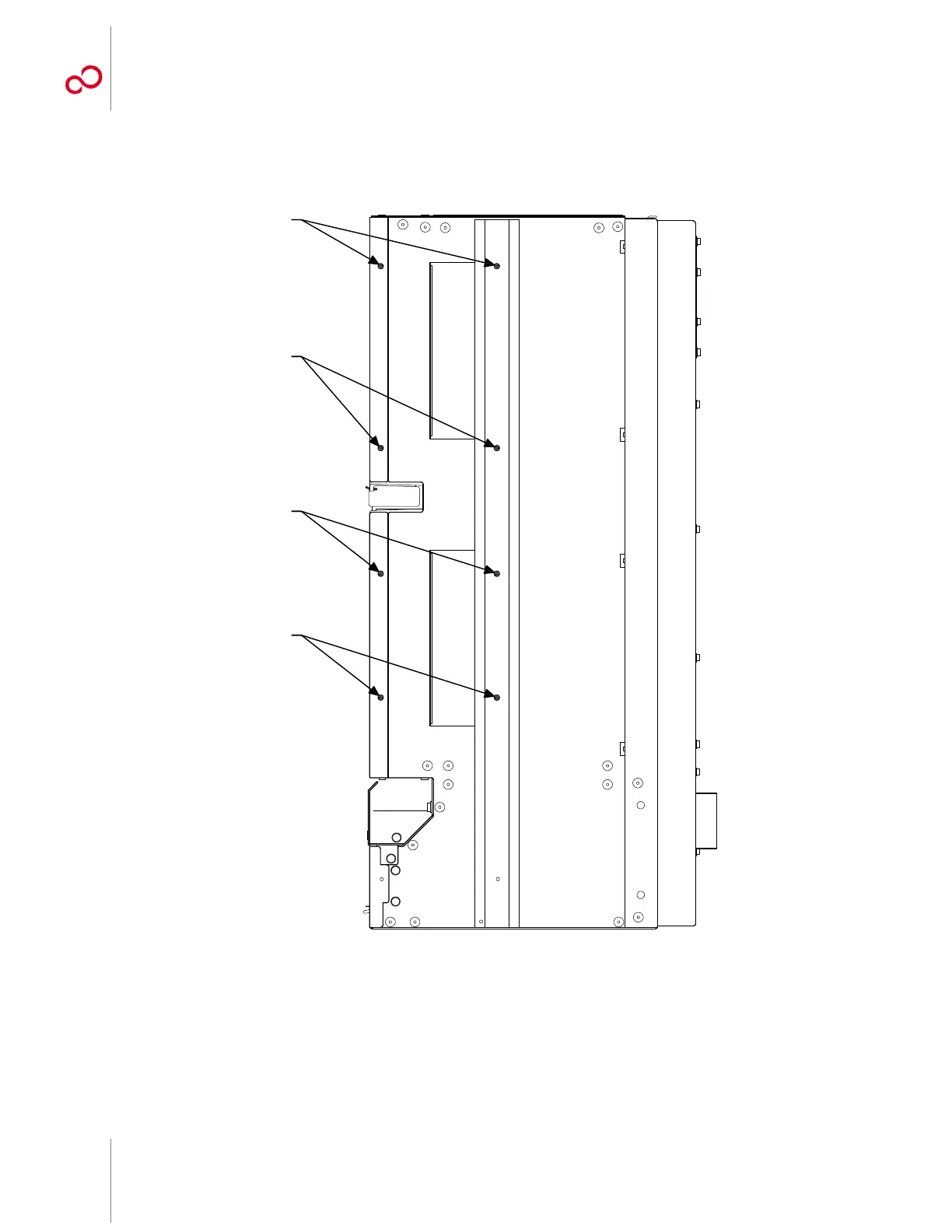

Figure 3-24: Flange Mounting Holes on Right-Side View of Optical/Tributary Shelf
Mounting Holes
Mounting Holes
Mounting Holes
Mounting Holes
m1656tb_1
