CHAPTER 3
Small Configuration
Installing the Optical/Tributary Shelf
3-41
FLASHWAVE 7500 Release 6.1
Equipment Installation
Fujitsu and Fujitsu Customer Use Only
FNC-7500-0061-200
Issue 1, May 2009
Figure 3-25 [p. 3-41] shows a right-side view of the Optical/Tributary shelf after the flange is
mounted.
7 Proceed to Step 12 [p. 3-44].

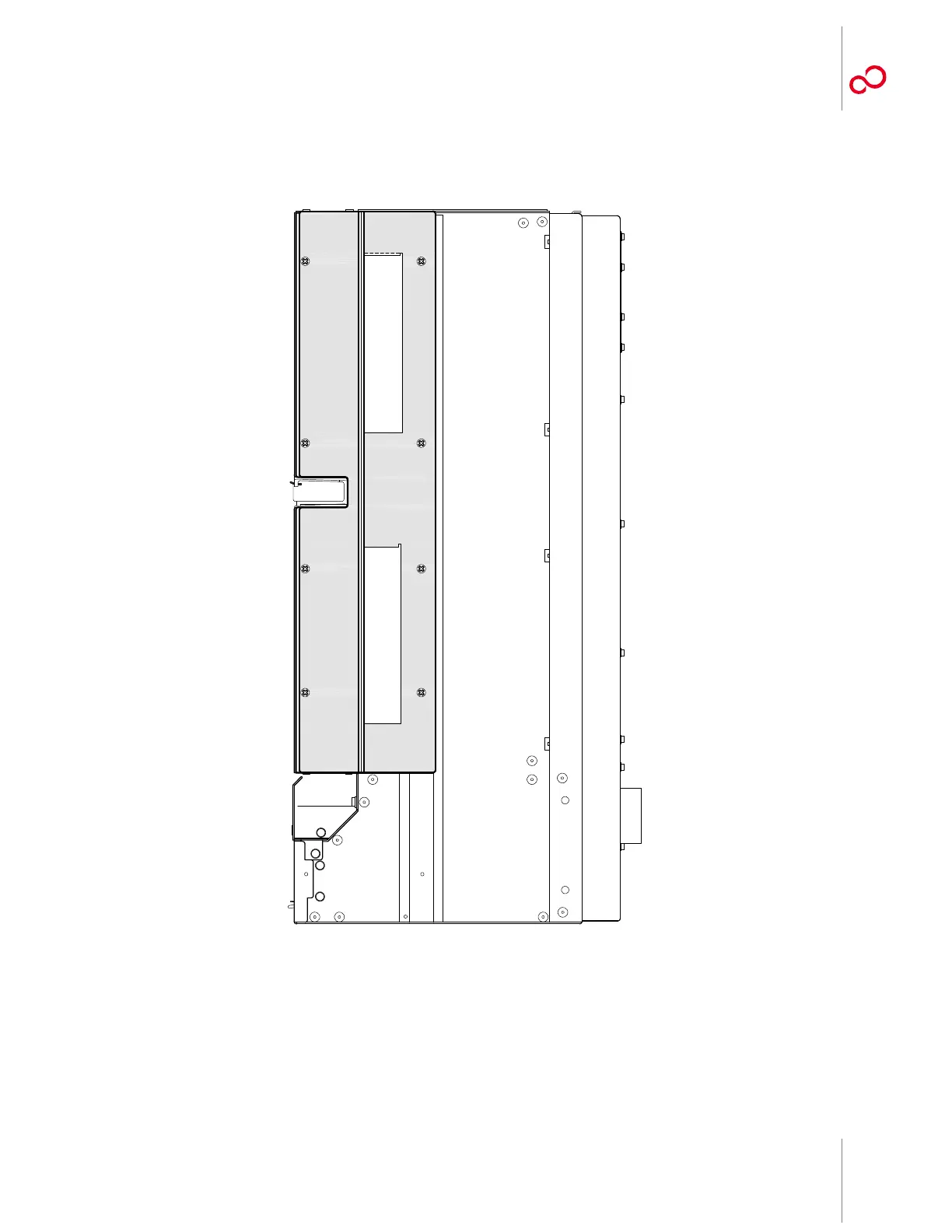

Figure 3-25: Flange Mounted on Right Side of Optical/Tributary Shelf (19-Inch Rack Installation)
