3-2 SPARC Enterprise Mx000 Servers XSCF User’s Guide • January 2012
3.1.1 Terminal Operating Modes for Connection to
XSCF
The FIGURE 3-1 shows the terminal operating modes for connecting to XSCF.

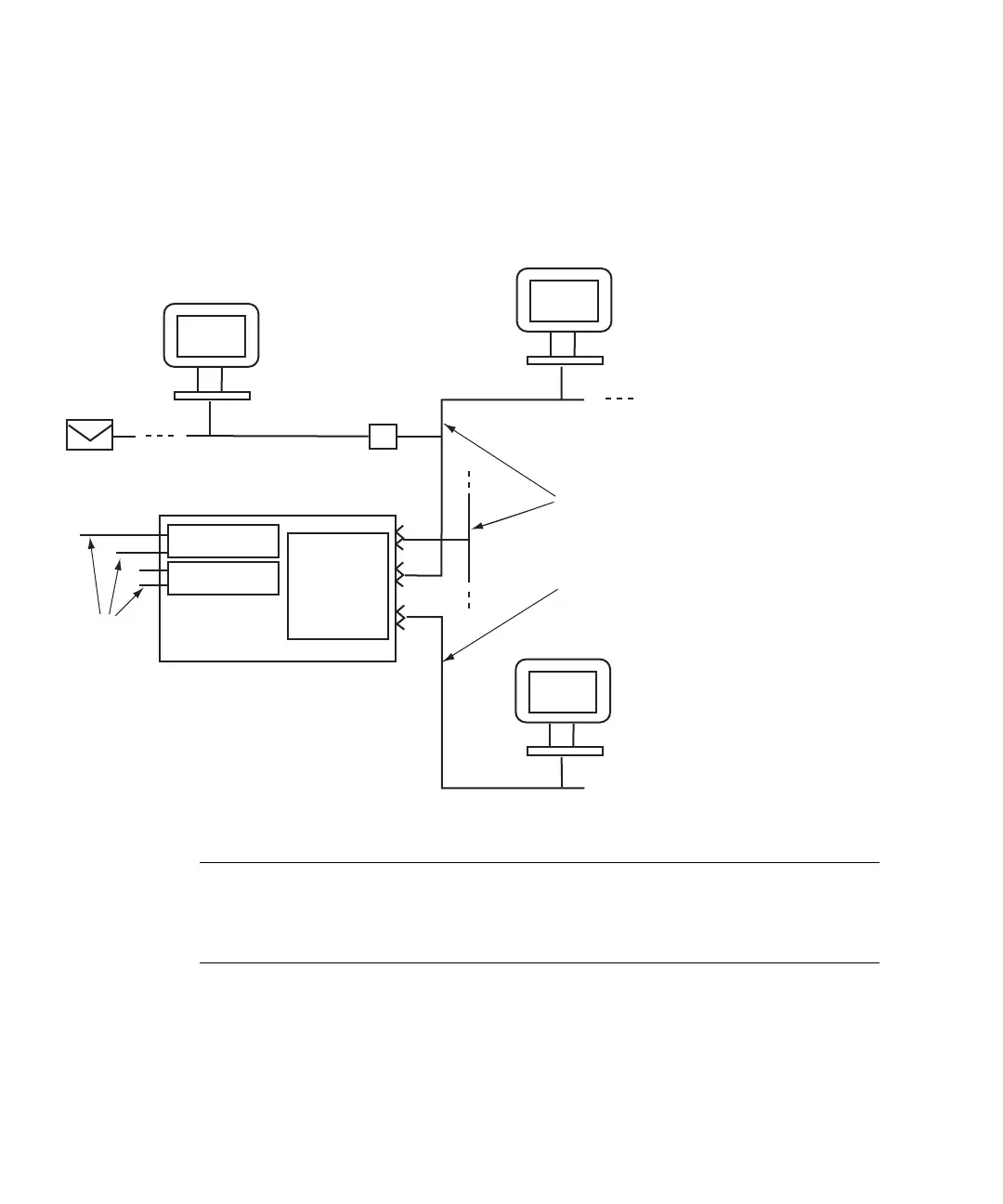

FIGURE 3-1 Operating Modes for Connection to XSCF (In Midrange Servers)
Note – In a system that has one XSCF Unit (M3000/M4000/M5000 servers), the
number of XSCF-LAN ports is two, and the number of serial ports is one. In systems
with two XSCF Units (M8000/M9000 servers), the number of actual XSCF-LAN and
serial ports is twice that of the system with one XSCF Unit.
SSH/telnet/
https
connection
SSH/telnet/
https
connection
Mail
notification
Router
XSCF-LAN
Ethernet connection
Connection to the
serial port
Terminal
Terminal
Terminal
Server
:
User
LAN
Domain
Domain
XSCF
