Chapter 1 XSCF Overview 1-15
1.3 Types of Connection to XSCF
This section outlines types of connection to the XSCF.
XSCF enables access to the server over a serial port or from networks connected to
XSCF-LAN.
FIGURE 1-4 outlines the connections to the XSCF.

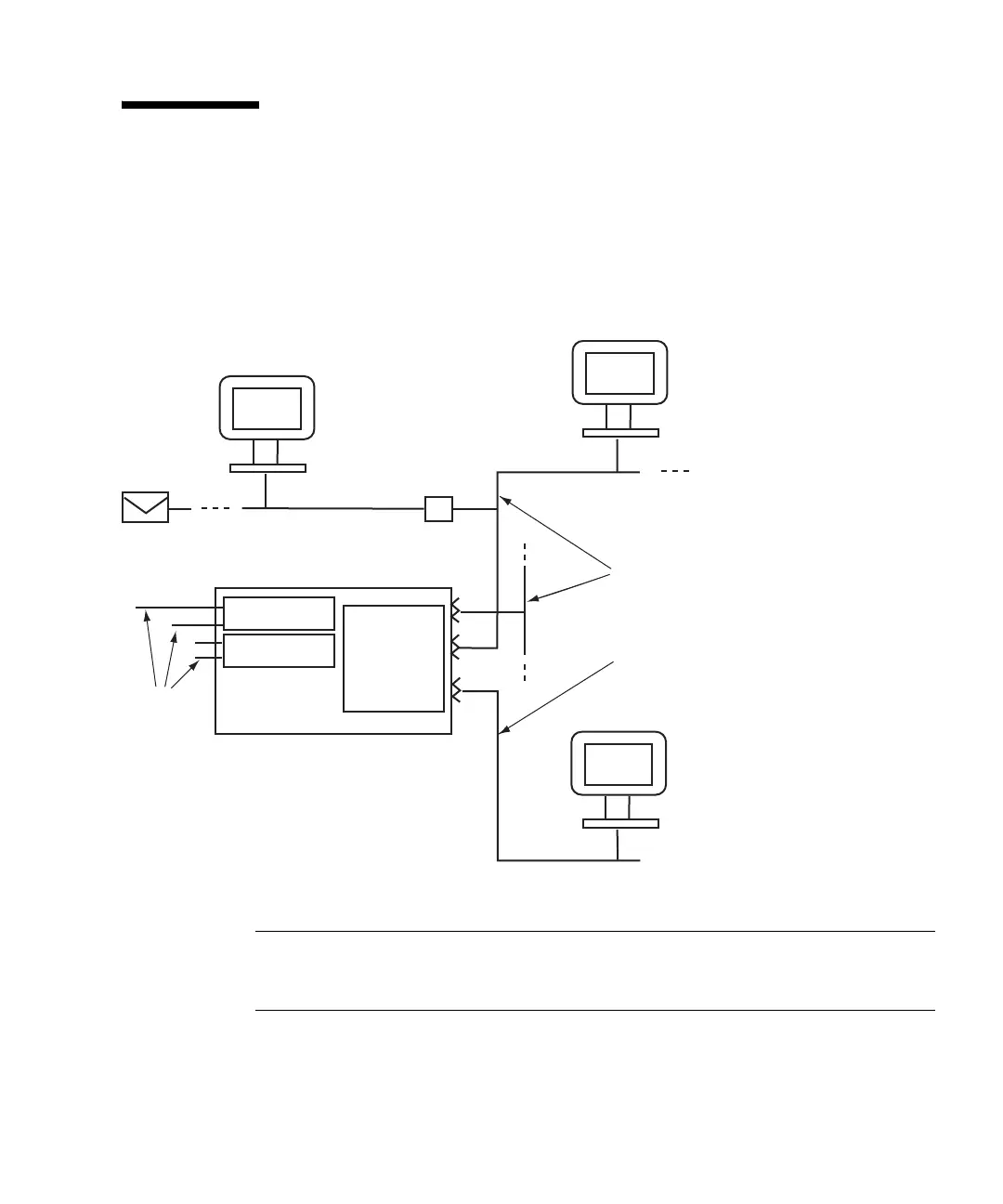

FIGURE 1-4 Connections to XSCF (In the Midrange Servers)
Note – In the systems with two XSCF Units, the XSCF Unit is in a redundant
configuration, and there are physically twice as many XSCF-LAN ports and serial
ports. Also, in the entry-level server, there is only one domain.
SSH/telnet/
https
connection
SSH/telnet/
https
connection
Router
Server
XSCF-LAN
Ethernet connection
Connection to the
serial port
Terminal
Terminal
Terminal
:
User
LAN
Domain
Domain
XSCF
