Chapter 3 Connecting to the XSCF and the Server 3-7
3.1.4 Connecting to XSCF via the Serial Port
The following is the procedure for connecting to a terminal to XSCF via the serial
port.
1. Confirm that a serial cable is inserted into the serial connector on the front of
the XSCF Unit, and confirm that the PC and workstation to be used are
correctly connected.
2. Check whether the following are set on the terminal software.
FIGURE 3-2 shows an example with settings.

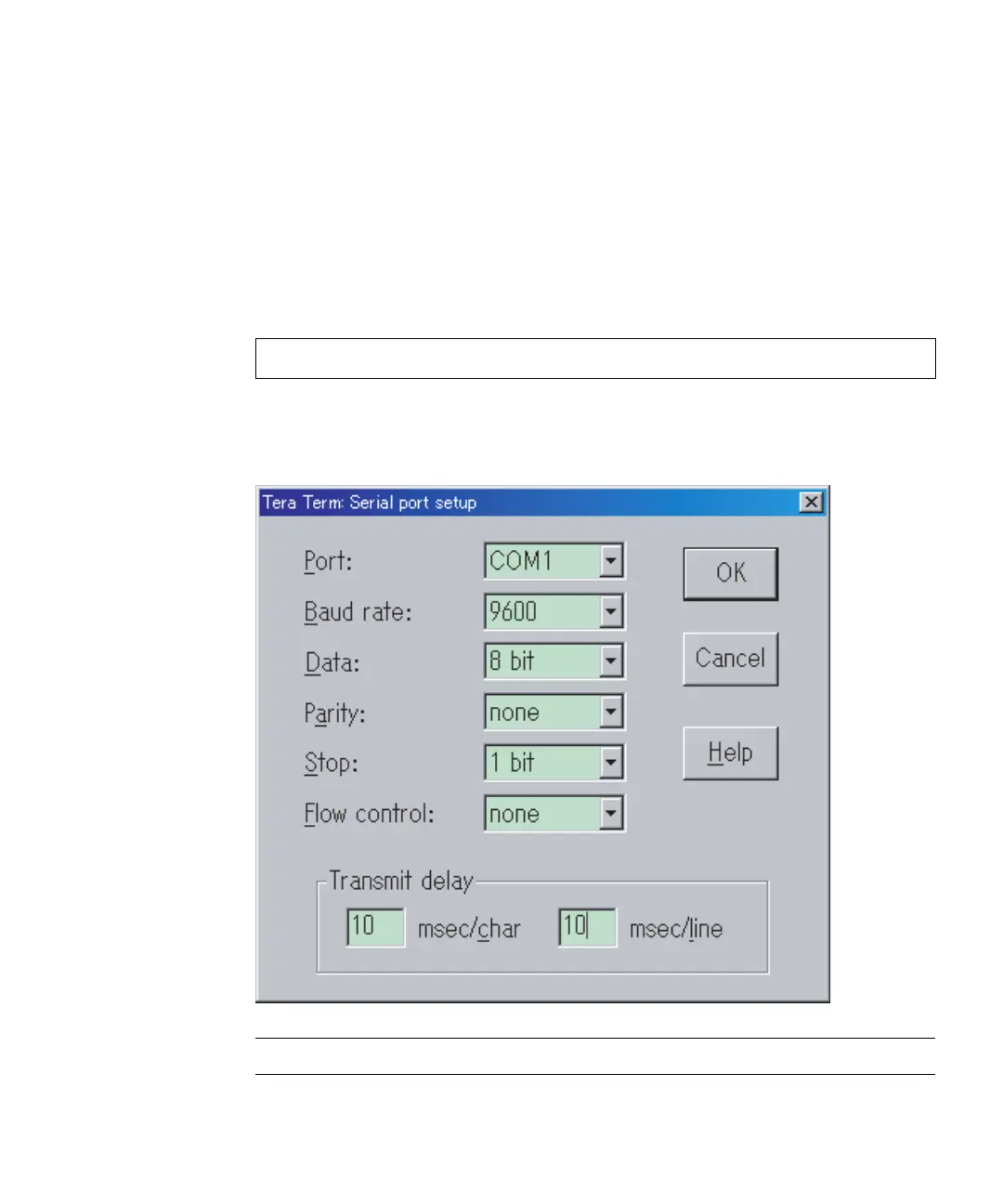

FIGURE 3-2 Example of Terminal Software Settings
Note – Please increase the delay, when you cannot connect.
Baud rate: 9600 bps, Data length: 8 bit, No parity, STOP bit: 1 bit,
No flow control, Delay: Except for 0
