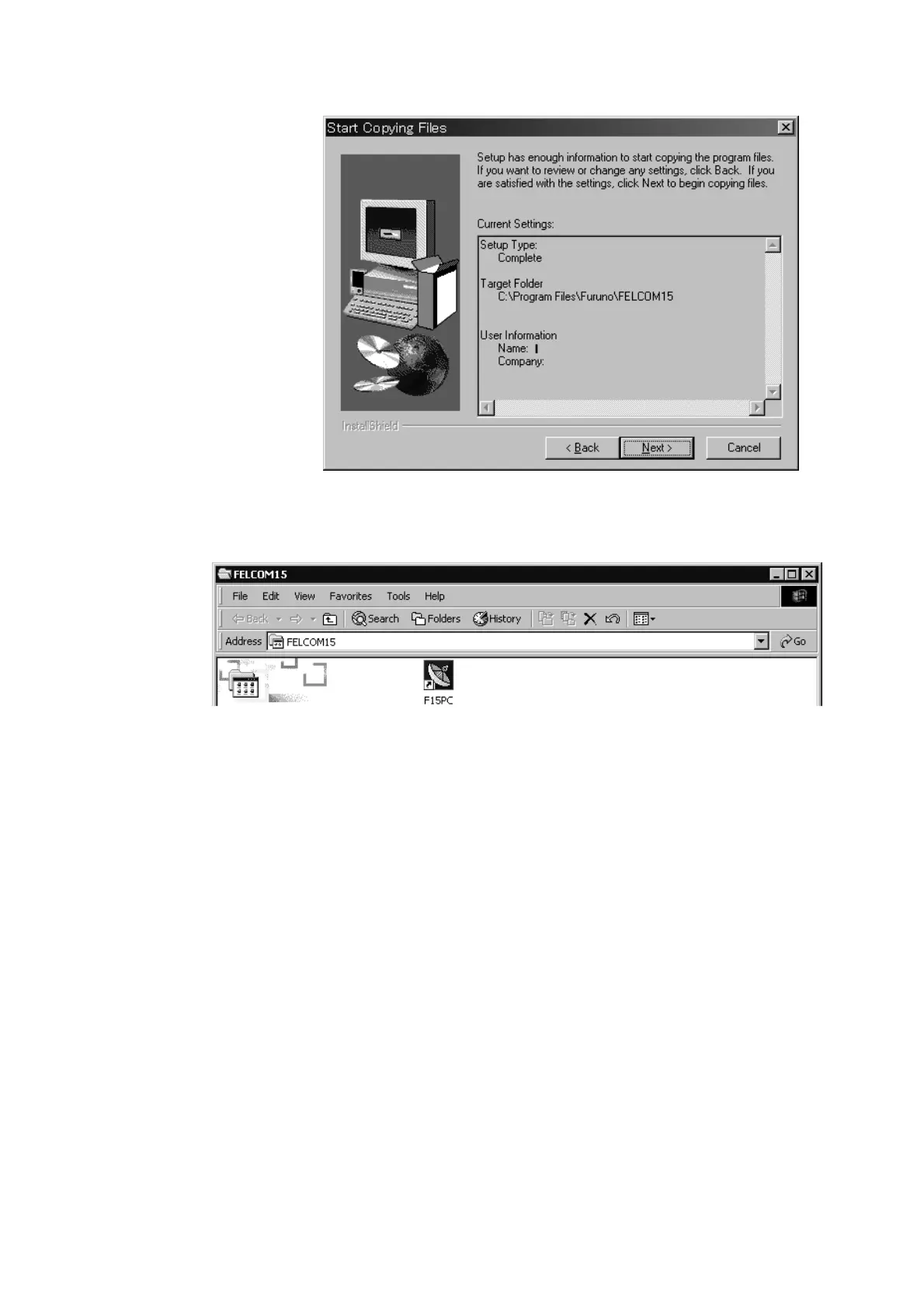

1. OPERA
TIONA
L
OVERVIEW
1-1
7
6.
Cl
ic
k the [Nex
t] but
ton.
S
tar
t copyi
ng files di
alog box
7.
Cl
ic
k the [Nex
t] but
ton and the i
nst
all
ation begi
ns.
W
hen t
he inst
all
ati
on
i
s
compl
eted, t
he FELCO
M 15 di
al
og box appear
s.
FELCO
M
15 dialog box
32
34
Table of Contents
Default Chapter
4
Table of Contents
4
Foreword
8
System Configuration
10
Inmarsat C System Overview
11
1 Operational Overview
17
Terminal Unit
17
Turning the Power On/Off
17
DISTRESS Button
17
Diagnostics
17
Floppy Disk Drive, Floppy Disks
18
Audio Alarm
18
Adjusting Brilliance
18
Keyboard
19
Key Description
19
Shortcut Keys
21
Function Key Description
21
Distress Alert/Received Call Unit IC-305, Alarm Unit IC-306
22
Printer PP-510 (Option)
23
Standby Display
24
Display Indications
25
Menu Overview
29
Error Messages and Alerts
30
Using a PC (Local Supply)
31
Installing Software
31
Starting Up, Quitting the Application
35
2 System Initialization
37
System Settings
37
Confirming the Main Terminal
37
System Setup
38
Terminal Setup
42
Login and Logout
44
Login
44
Logout
46
EGC Settings
47
What Is the EGC (Enhanced Group Call) Service
47
EGC Setup
49
Adding EGC Channels
52
Saving, Printing EGC Messages Automatically
54
Adding NCS Channels
56
LES List
58
Displaying Toll Charges
58
Registering LES to LES List
60
Editing the LES List
61
Printing the LES List
62
Station List
63
Adding Stations to the Station List
63
Editing the Station List
66
Printing the Station List
67
Entering Own Ship's Position
68
Creating a Directory
69
Creating a Directory Where to Store Messages
69
Specifying Directory Where to Store Messages
71
E-Mail Service/Sms Station List
72
E-Mail Setup
75
Saving, Loading System Settings
76
Saving System Settings to a Floppy Disk
76
Loading System Settings to the Terminal Unit
76
3 File Operations
77
Files and Working Areas
77
Preparing Files
78
Preparing a Routine File
78
Preparing a Confidential File
79
Editor Menu Setup
80
Working with Text
81
Saving Files
86
Formatting a Floppy Disk
87
Saving Files
88
File Menu
89
Opening Files
90
Switching between Files
90
Opening a File When both Working Areas Are Occupied
91
Saving a File under a New Name
92
Printing Files on Floppy Disks
93
Combining Files
93
Deleting Files
94
Renaming Files
95
Decoding E-Mail Attachment
96
4 Inmarsat C Communications
99
Transmitting
99
Code Description
99
Transmitting Prepared Message
100
Transmitting a File Stored on a Floppy Disk
113
Canceling Transmission on a Message Awaiting Transmission
114
Requesting Delivery Status
115
Accessing the 2-Digit Code Services
118
Displaying the Send Message Log
120
Receiving
121
When a Message Is Received
121
Setting the Receive Alarm
122
Displaying, Printing Received Messages
123
Automatically Printing Received Messages
126
Saving Received Messages to a Floppy Disk
126
Automatically Saving Received Messages to a Floppy Disk
127
Deleting Received Messages
128
Log
129
Displaying and Printing the Display Log
129
Automatic Printing of Display Log
130
EGC Messages
131
Displaying and Reprinting EGC Messages
131
Displaying EGC Closed Network ID (ENID)
132
Receiving EGC Distress or Urgent Message
133
Displaying the EGC Message Log
133
5 Data Reporting and Polling
135
Data Reporting
135
Setting a Data Report
136
Setting a Message Report
138
Automatic Printing of Data Report, Polling Command
141
Polling
142
Polling Commands
142
Other Polling Commands
144
Polling Reception
145
DNID (Data Network Identification)
146
Displaying DNID
146
Enabling/Disabling DNID
146
6 Distress Operations
147
Transmitting the Distress Alert
147
Transmitting the Distress Alert with Nature of Distress Specified
148
Distress Message
150
Testing the Distress Button
151
7 Other Functions
153
Aborting an Operation
153
Scanning NCS Common Channel
154
Choosing EGC Receiving Channel
155
Choosing NCS Channel
156
LES Information
157
8 E-Mail by Pc
159
Overview
159
Overview of Mail Functions
159
E-Mail Restrictions
160
E-Mail Precautions
160
Connection of FELCOM 15 with Single PC
162
Function Settings
163
Setting IP Address and Subnet Mask
163
Enabling DHCP Settings
164
Gateway Setting
165
Restricting Access
166
Restricting Outgoing Message Size
167
Automatically Converting Attachments
168
Connection of FELCOM 15 to Shipboard LAN Mail Server
169
Selective Forwarding
171
E-Mail Client Setup Example
173
SMTP Error Messages
174
9 Maintenance, Troubleshooting
175
General Checking and Maintenance
175
Diagnostics
176
Self Test at Power on
176
Testing the Terminal Unit through the Keyboard, Displaying Program Version no
176
Performance Verification (PV) Test
177
PV Test Sequence
177
PV Test Procedure
178
Displaying PV Test Results
179
System Status Monitor
180
Replacing the Battery
182
Replacing the Fuse
182
Error Messages
183
Equipment Trouble Messages
183
Warning Messages
184
Appendix
185
Menu Tree
185
International Telex/Telephone Country Code List
193
LES List
201
International Telex Abbreviations
202
International Telegraphy Alphabet
203
Messages
204
Digital Interface
207
Nd Edition
207
Parts List
218
Parts Location
220
Antenna Unit
221
Specifications
223
Index
225
Declaration of Conformity
228
