114
5.1.1.3 Snapshot Linkage
After snapshot linkage is configured, the system can automatically alarm and take snapshots
when an alarm is triggered.
After Motion is enabled in Snapshot, the system takes snapshots when an alarm is triggered.
For querying and setting snapshot storage location, see "4.5.2.5 Path."
5.1.1.3.1 Setting Snapshot Plan
According to the configured snapshot plan, the system enables or disables snapshot at
corresponding time.
Step 1 Select Setting > Storage > Schedule > Snapshot.
The Snapshot interface is displayed. See Figure 5-1.

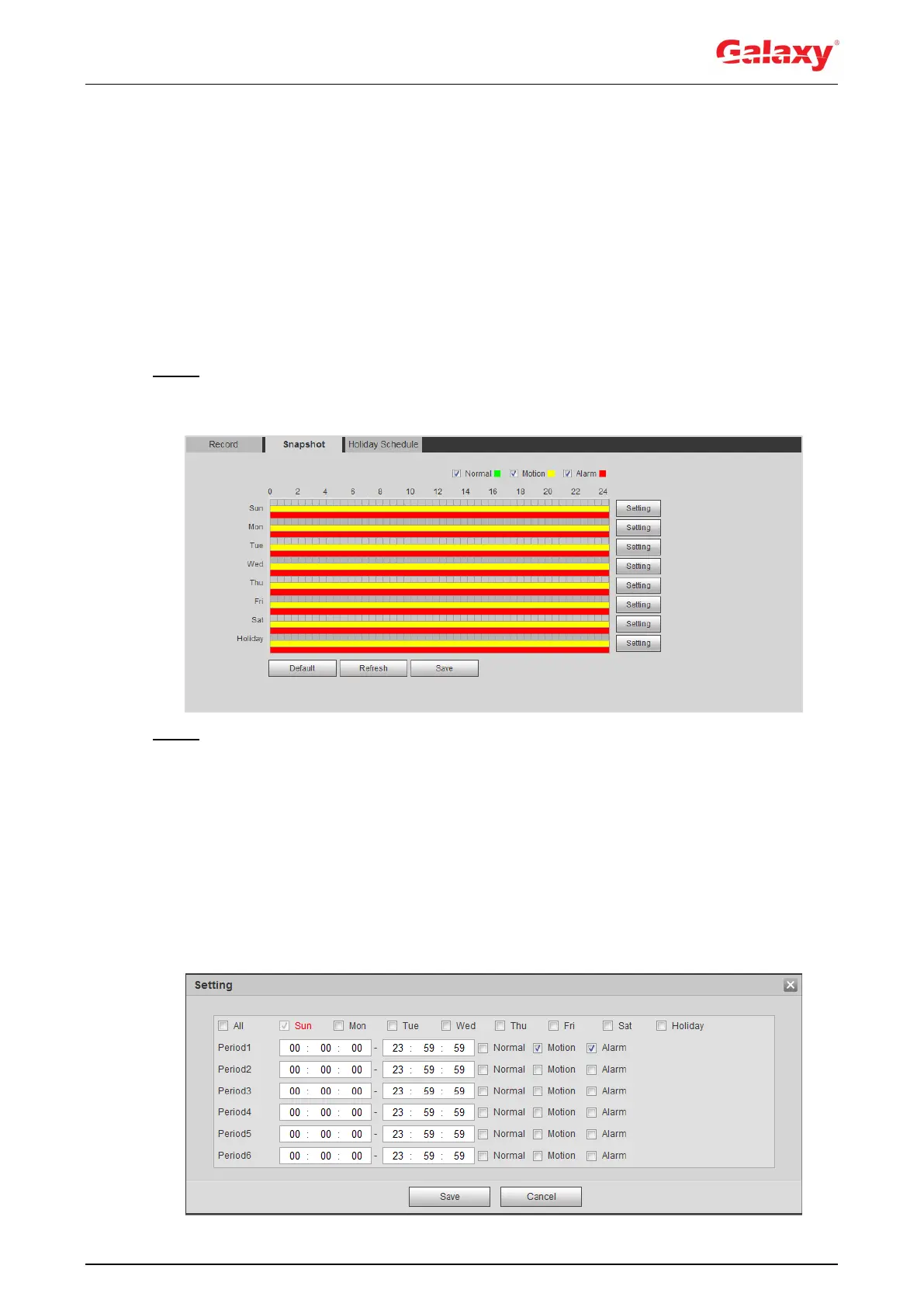

Figure 5-1 Snapshot
Step 2 Select snapshot type and set time period.
Green represents normal snapshot plan (such as timing snapshot); yellow represents
motion snapshot plan (such as snapshot triggered by intelligent events); red represents
alarm snapshot plan (such as snapshot triggered by alarm-in).
Method one: Select snapshot type, such as Normal, and directly press and drag
the left mouse button to set time period for normal snapshot on the timeline.
Method two: Enter an actual time period.
1) Click Setting next to a day.
The Setting interface is displayed. See Figure 5-2.
Figure 5-2 Setting (snapshot time period)
