6 FASTENING OF PANEL SCREWS
The following applies to panels that are fastened with M6 stainless steel button screws.
These screws are torqued to 5-7Nm and have an application of Loctite 243 or Loctite 248
to prevent them from self-loosening.
If panels are removed at install or for servicing, then the screws need to be retorqued to
5-7Nm and must have a new application of Loctite 243 or Loctite 248 applied.*
The diagrams highlight the locations of all the relevant screws that these instructions
apply to.
* Ensure that the manufacturer’s instrucons for
the applicaon of Locte are correctly followed.
C Series
L Series
Q Series
1
2
3

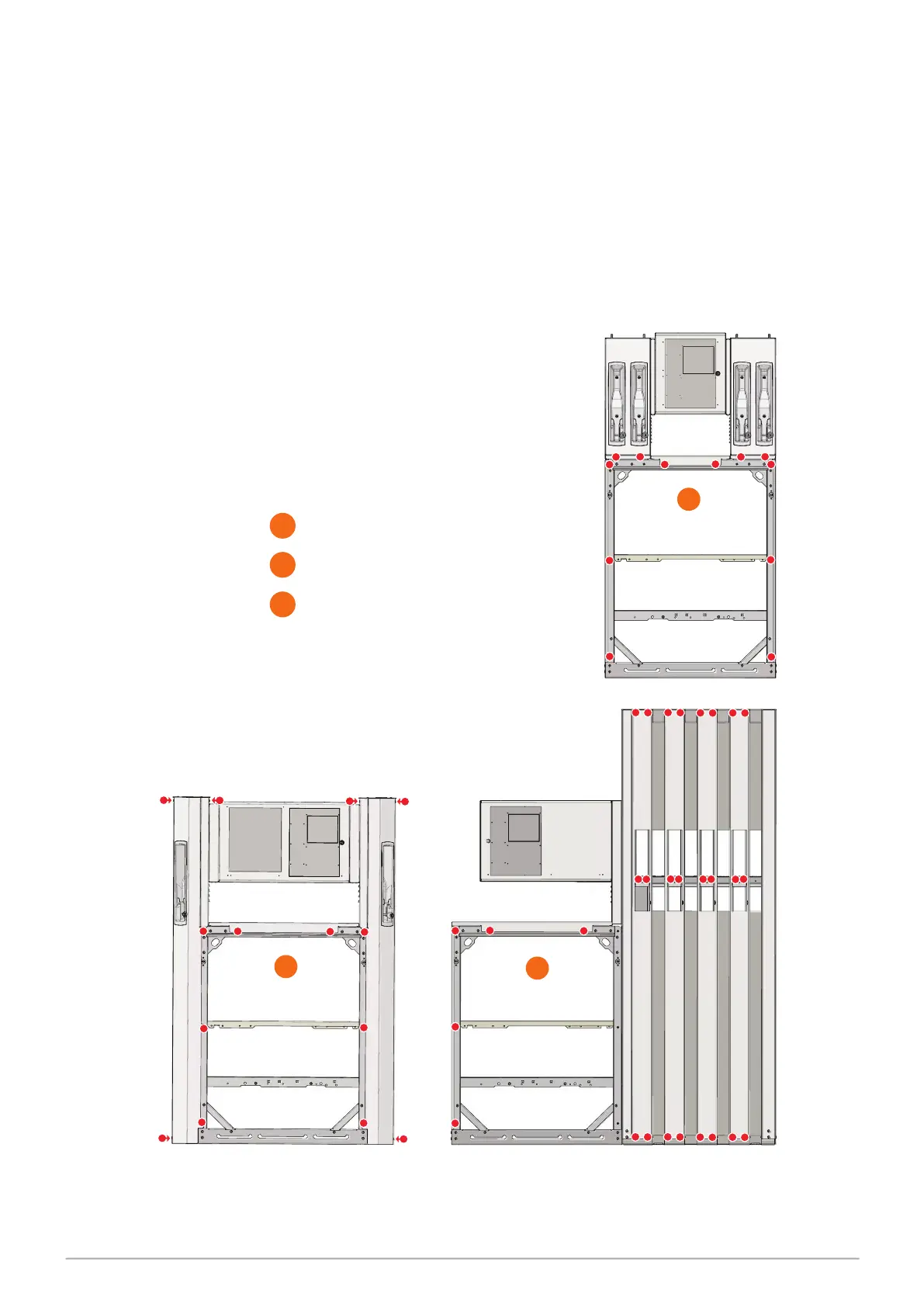

Figure 2. Location of Panel Screws
