Gallagher PULSE Series - Connect the Hoses

INSTALLATION
25
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
1. Thread the hose end 1 into the column through
the holes on the base-plate of the spreader, as
indicated.

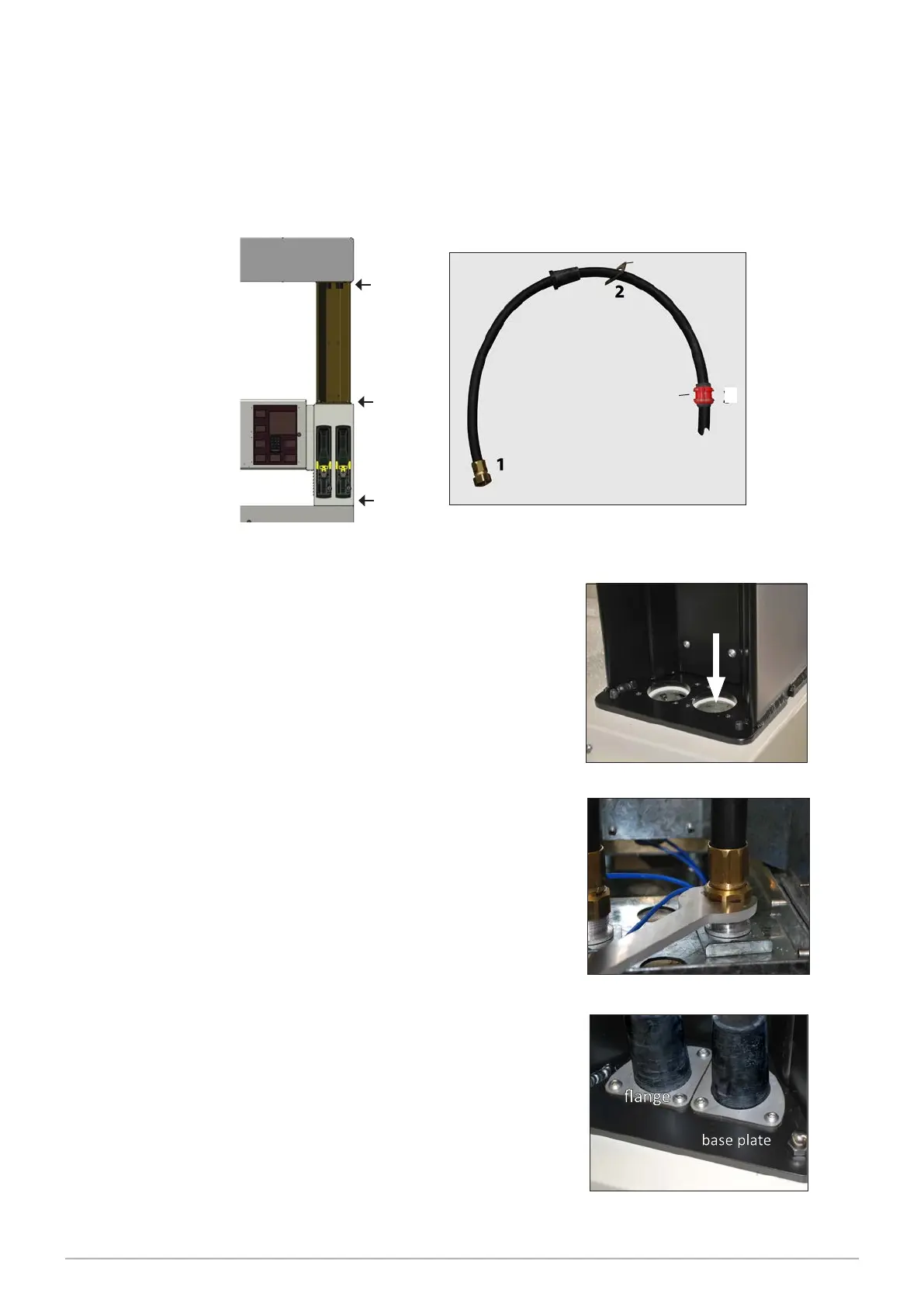

5.4 Connect the Hoses
Once the hose is threaded into the column it requires securing in 3 places. The brass end
to the column; the hose flange to the base plate of the spreader; and the hose hanger
point to the hose retractor. These connection points are described with matching numbers
in the diagram below. Position 3 is detailed in 5.5.
1
2
3
flange
2. Fasten the brass end of the hose to the column.
3. Secure the hose by fastening the 3-hole flange
to the spreader base plate.
hose sleeve
3
