2.3.1 Anchor Point Locations
Ensure that all anchor points as shown below are fastened with a M12 bolt.
Dispensers are to be installed on a flat surface to ensure that the anchor bolts can be
secured sufficiently.

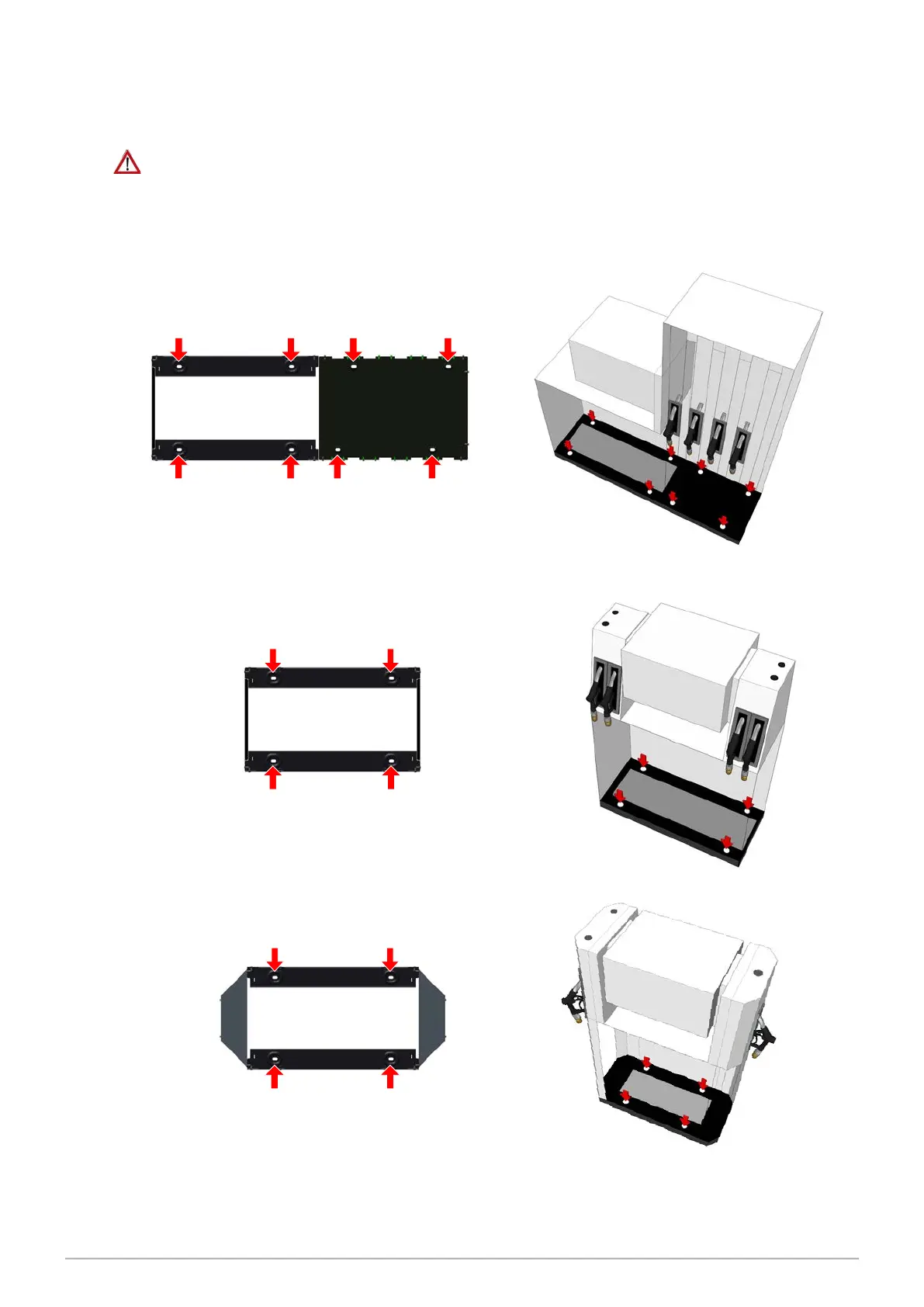

Figure 3. Anchor Point Locations
C Series
L Series
Q Series
