SERVICING
75
PULSE Installaon, Commissioning and Servicing Manual - Revision 19

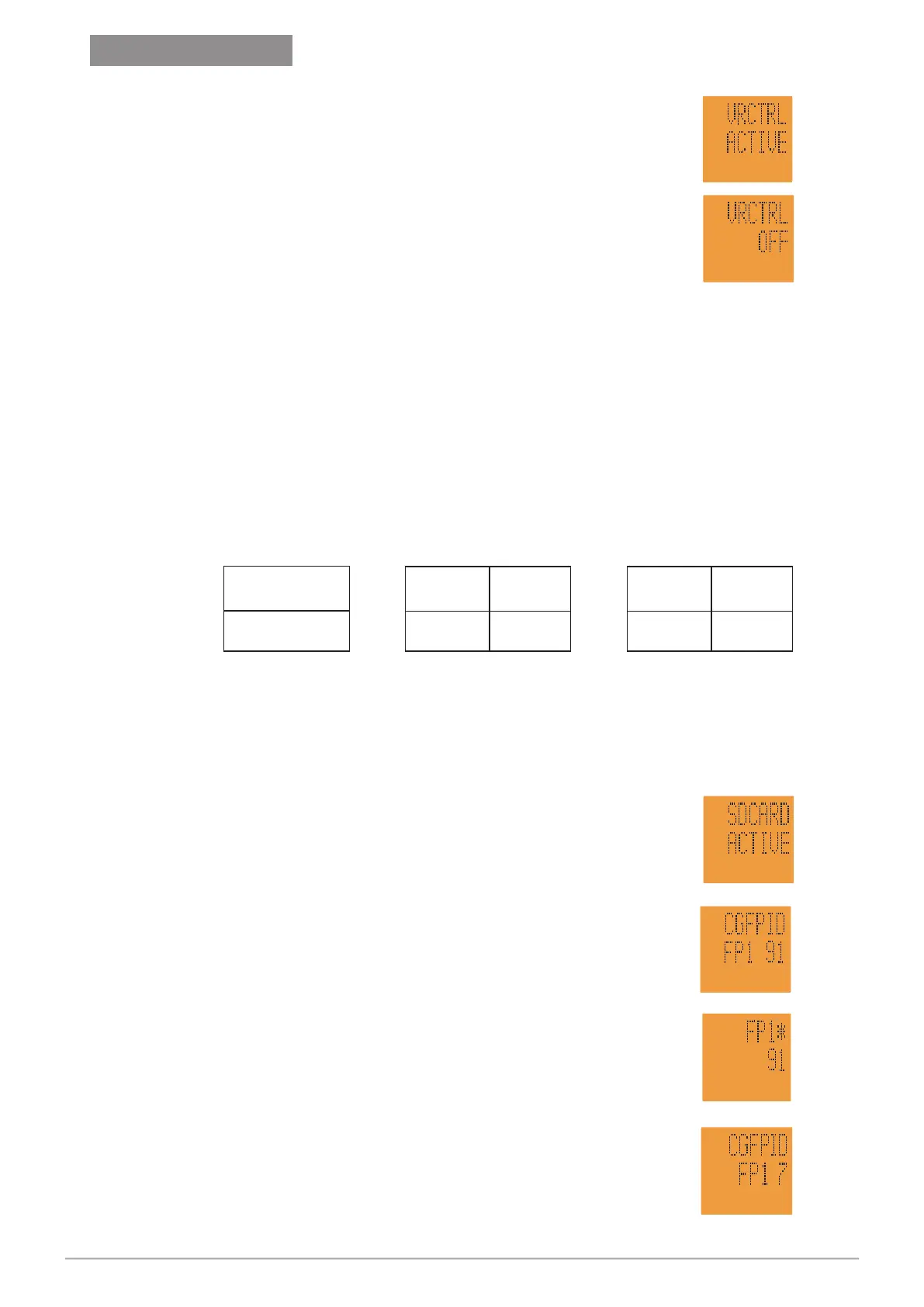

12.5 Setting VR Active - VRCTRL
For non-VR sites VR Control can be set as either ACTIVE or OFF.
12.6 Setting Pump Numbers - CGFPID
Setting pump numbers is done at the User Interface via the Service Mode.
The front of the dispenser has the key on the left of the User Interface which contains the
Central Controller. This is referred to as Fuel Point 1 and the rear of that cabinet as Fuel
Point 2.
Where other Fuel Points (FP’s) are present, FP3 will be on the front and FP4 on the rear.
The dispenser leaves the factory with the following default pump numbers:
$
L
$
L
$
L
Once in Service Mode the SDCARD ACTIVE screen is
displayed.
Scroll up or down, using keys
2
or
8
to access the
CGFPID FP1 (Fuel Point 1) screen.
CGFPID = Change Fuel Point ID.
Press the
F
key.
Enter the desired number (for example
7
).
Then press the
F
key.
Once allocated scroll using keys
4
or
6
to access
other Fuel Points and repeat this process.

Hold
4
for 3 seconds to exit Service Mode.
$
L
$
L
$
L
For VR equipped sites VR Control must be set to ACTIVE.
VR Control can be set to OFF to disable alarms and
forced shutdown. This will enable servicing, testing or
calibration.
Press
5
to toggle between ACTIVE and OFF.
C

Inactive Fuel Points are numbered 99 and should not be altered.
FP ID 92
FP ID 91
Dispenser Rear
Standard PULSE
More than 2 Fuel Points C More than 2 Fuel Points L
Dispenser Front
FP ID 94 FP ID 92
FP ID 93 FP ID 91
FP ID 92 FP ID 94
FP ID 91 FP ID 93
Dispenser Rear Dispenser Rear
Dispenser Front Dispenser Front
