Gallagher PULSE Series - Target Torques for Gasket Sealing; Figure 25� Target Torques for Gasket Sealing

SERVICING
56
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
4G85424 Flange Gasket (T) Meter
Torque = 11 Nm
4G82768 Meter Gasket Lobe
Torque = 16.5 Nm
4G100065 Benne Outlet Gasket
Torque = 23 Nm
4G82765 Tri Gasket
Torque = 16.5 Nm
4G00269 Sucon Flange Gasket
Torque = 15.5 Nm
4G02167 Gasket In/Out Tatsuno DEF Meter
Torque = 15 Nm
4G87912 Pump Unit Gasket
Torque = 11 Nm
1.4 Target Torques for Gasket Sealing
Tighten all fasteners diagonally, ensuring that the tightening load to each bolt is applied
as uniformly as possible, in three or four stages up to the final torque value.

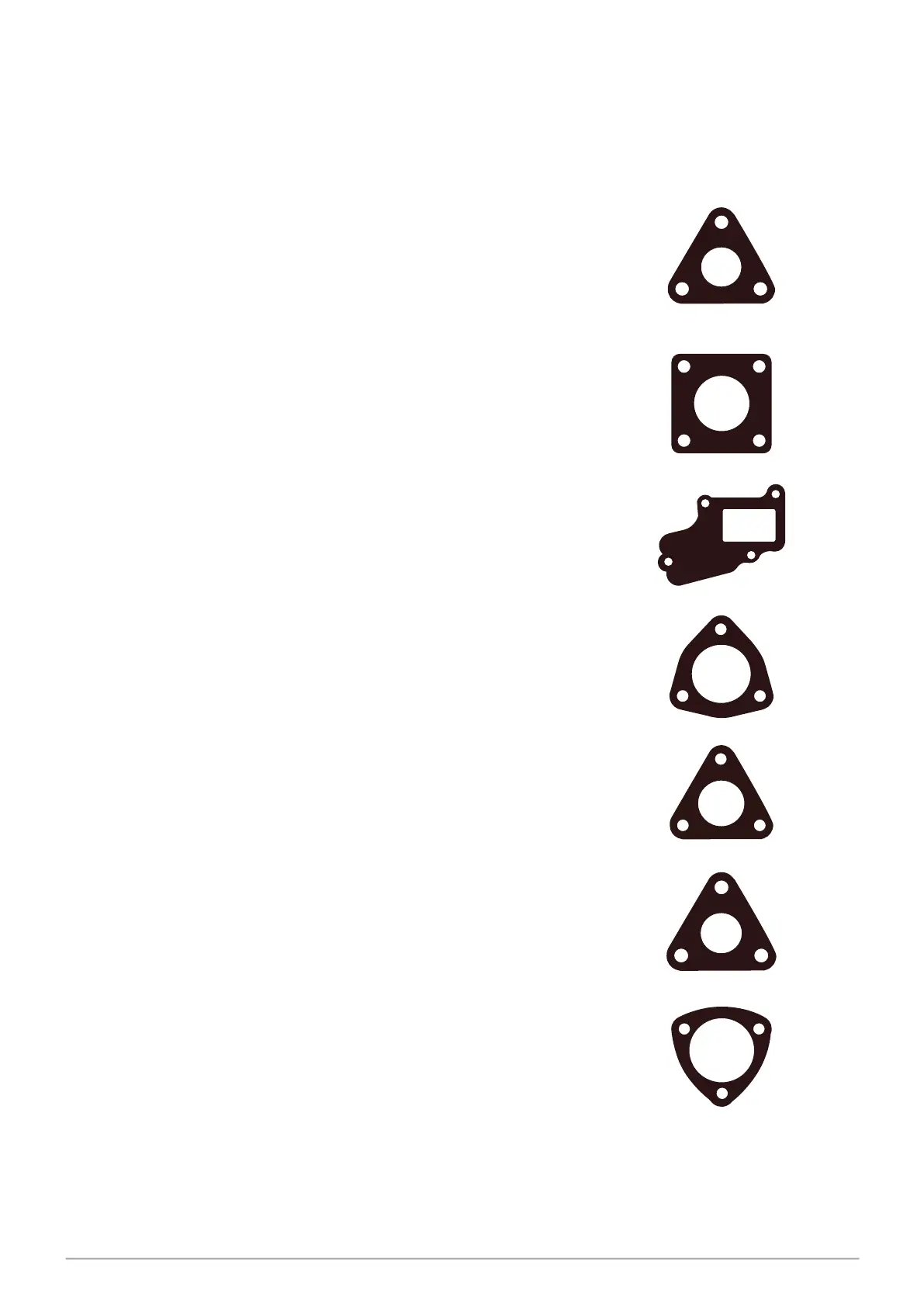

Figure 25. Target Torques for Gasket Sealing
