5.6 Refit Panels
The final step is to replace the spreader panels and reconnect the holster switch before
replacing the holster panel.

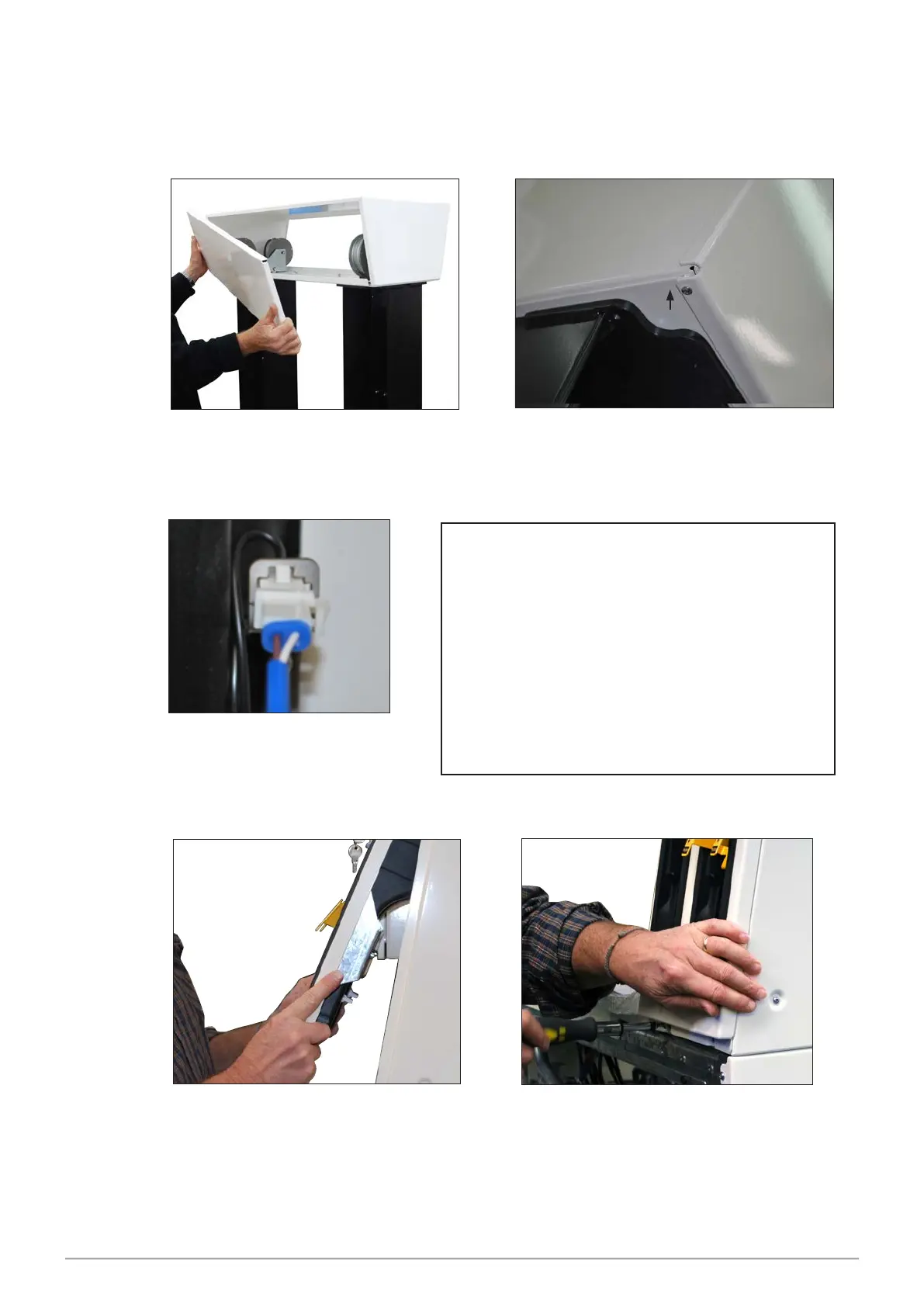

a Replace front and rear spreader
panels.
b Fasten the Phillips screws at the top
and the bottom of the spreader panels.
c Connect the holster switch
cable. (See Secon 6)
d Replace the holster panel. e Fasten the two screws at the
bottom of the holster panel. (Refer
to General 6. Fastening of Panel
Screws.)
TYING BACK UNUSED
NOZZLE SWITCH CABLES
Holster switch cables come in sets of 2 (for
1 or 2 products) and 4 (for 3 or 4 products).
A single product dispenser has the Grade 2
switch cable tied back.
A three product dispenser has the Grade 4
switch cable tied back.
