Gallagher PULSE Series - C SERIES HOSE INSTALLATION (RETRACTOR)

INSTALLATION
23
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
5 C SERIES HOSE INSTALLATION (RETRACTOR)
This process requires the following steps:
i. Removing the spreader panels.
ii. Preparing the cable from the spring reel to be connected to the hose.
iii. Removing the holster panel to allow access to connect the hose.
iv. Connecting the hoses.
v. Attaching the hose clamps to the hoses and retractor cables.
vi. Replacing the holster panels and the spreader panels.

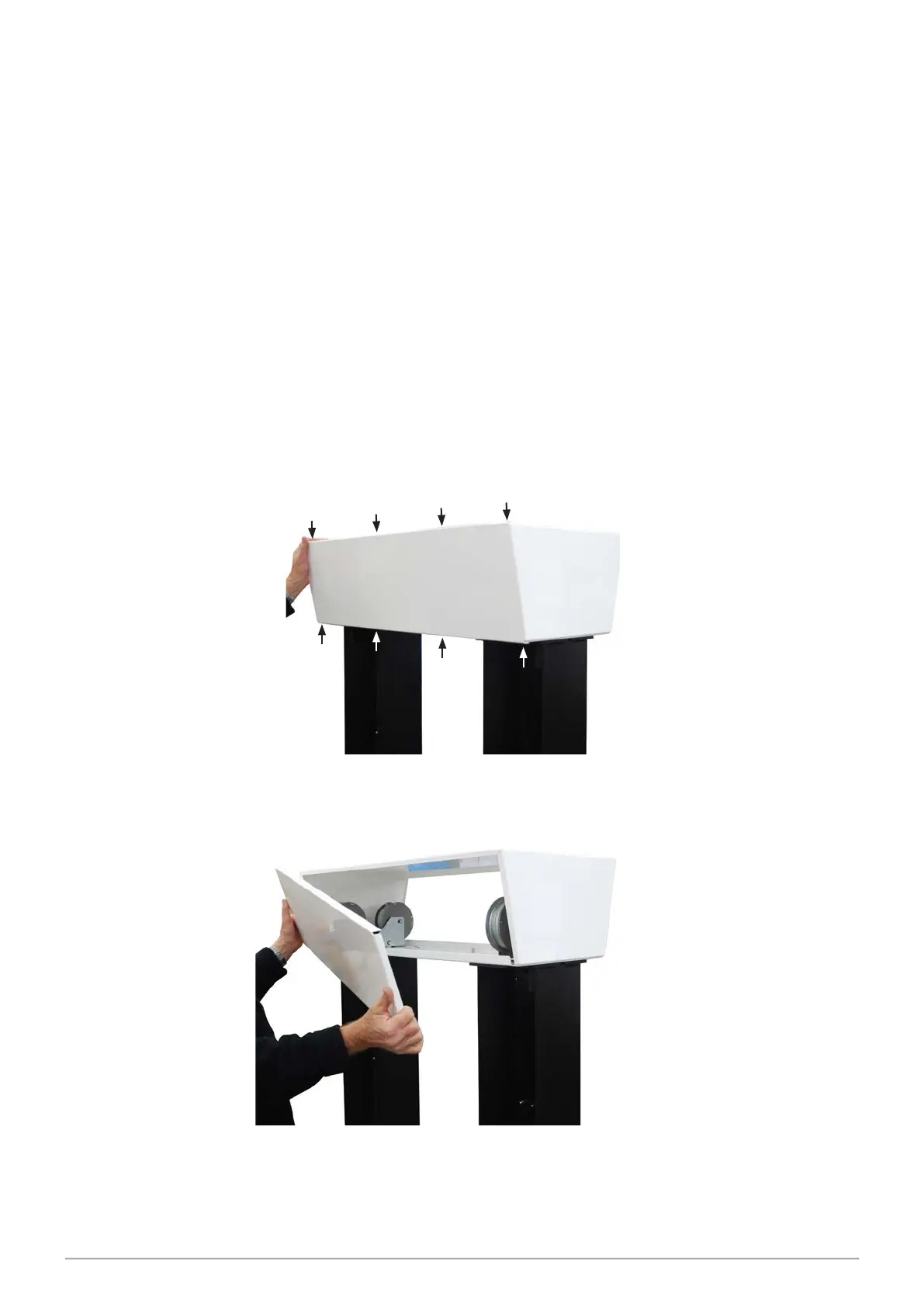

5.1 Remove the Spreader Panels
a Unfasten screws.
b Remove panels.
