INSTALLATION
22
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
3 Hanger Point
Connect the hanger points.

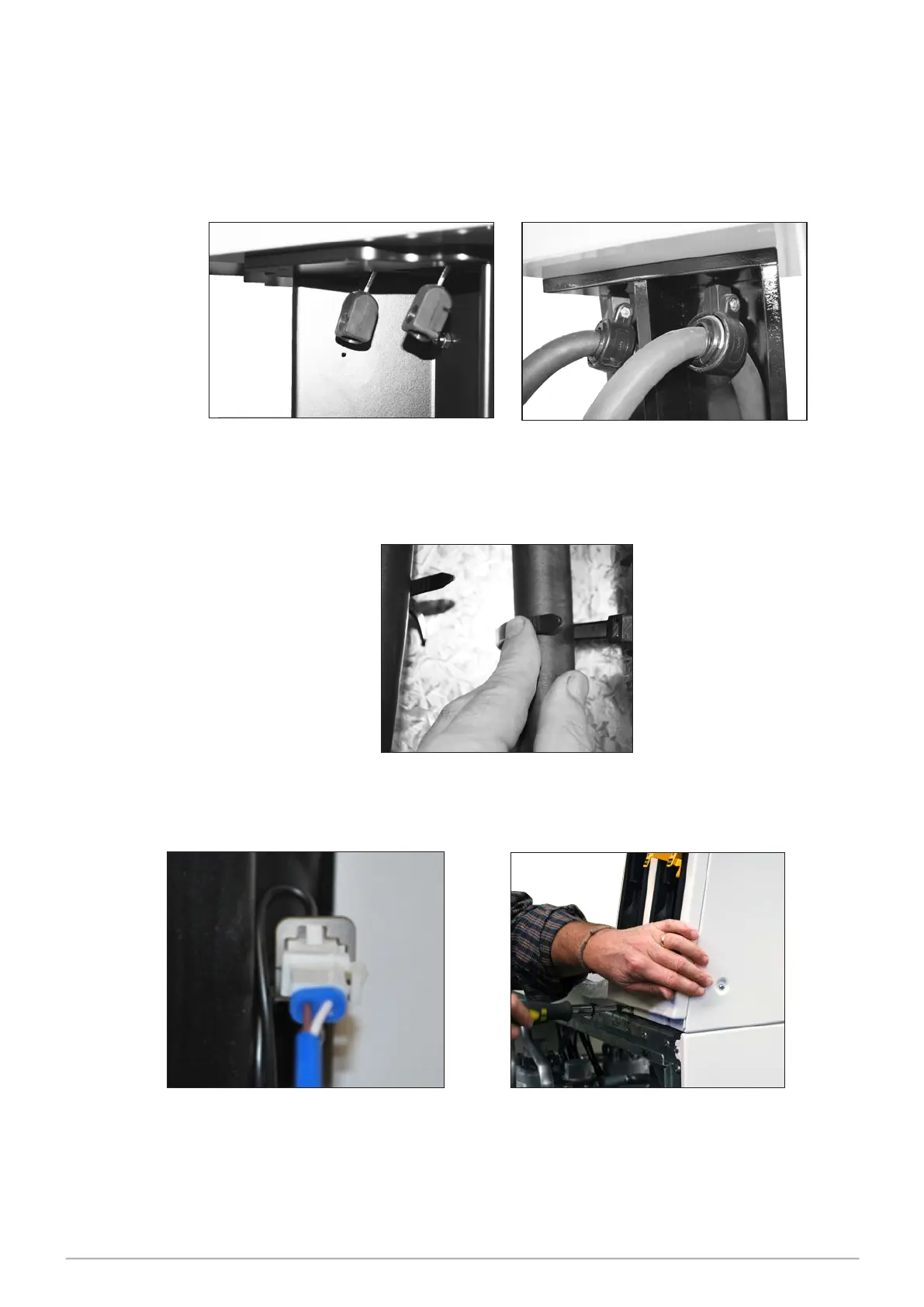

• The clamp attached to the hose hanger point will fit to the anchor points suspended
from the spreader. Secure the clamp to the anchor points using the M5 Screw and
nut inside the clamp. Repeat for all hoses.
The hose clamp attached to the
anchor points
• Once all hoses are in place, secure each pair (front and back) in the column behind
holsters using cable ties.
Anchor points underneath the
C-Spreader
b Replace the holster panels and
their 2 screws. (Refer to General
6. Fastening of Panel Screws.)
a Insert the nozzle switch cable
into the correct nozzle switch on
the holster panel. (See Section 6)
4.4 Replace the Holsters
To Next Page
