Gallagher PULSE Series - Figure 59� 1 or 2 User Interface Modules

APPENDIX
129
PULSE Installaon, Commissioning and Servicing Manual - Revision 19
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D C C B B A A
(C)2018 Gallagher Fuel Systems Ltd. This document remains the property of Gallagher Fuel Systems Ltd.,Marton, New Zealand, and is not to be copied or used without written permission from Gallagher Fuel Systems Ltd.
DATE DRAWN BY DESIGNED CHECKED
DAT EREV. MODIFICATION
DRG No. Part Name
REV.
SHEET /
DISPENSER CONTROL SYSTEM
DWG-011403 01.28
10 16
11/04/2018
RS KK RS
USER I.F (DISPLAY)
J22
PRICE DISPLAY
J41
TOTE DRIVE
J7
FRONT DISPLAY
USER I.F (DISPLAY)
P80 P81
J22
PRICE DISPLAY
J41
P10
TOTE DRIVE
J7
REAR DISPLAY
MECH.TOTE MECH.TOTE MECH.TOTE MECH.TOTE MECH.TOTE
MECH.TOTE MECH.TOTE MECH.TOTE MECH.TOTE MECH.TOTE
10-WAY RIBBON
10-WAY RIBBON
16-WAY RIBBON
16-WAY RIBBON
PRICE DISPLAY BOARD IS OPTIONAL
PRICE DISPLAY BOARD IS OPTIONAL
MECHANICAL TOTES AND DRIVE ARE OPTIONAL
PRICE DISPLAY BOARD IS OPTIONAL
P80 P81
P10
LOCAL BUS
EITHER P80 OR P81 CAN BE USED
TO STACK CONTROLLER
TO CENTRAL CONTROLLER
LOCAL BUS LOCAL BUS LOCAL BUS
EITHER P80 OR P81 CAN BE USED
98315 98315
98312 98312

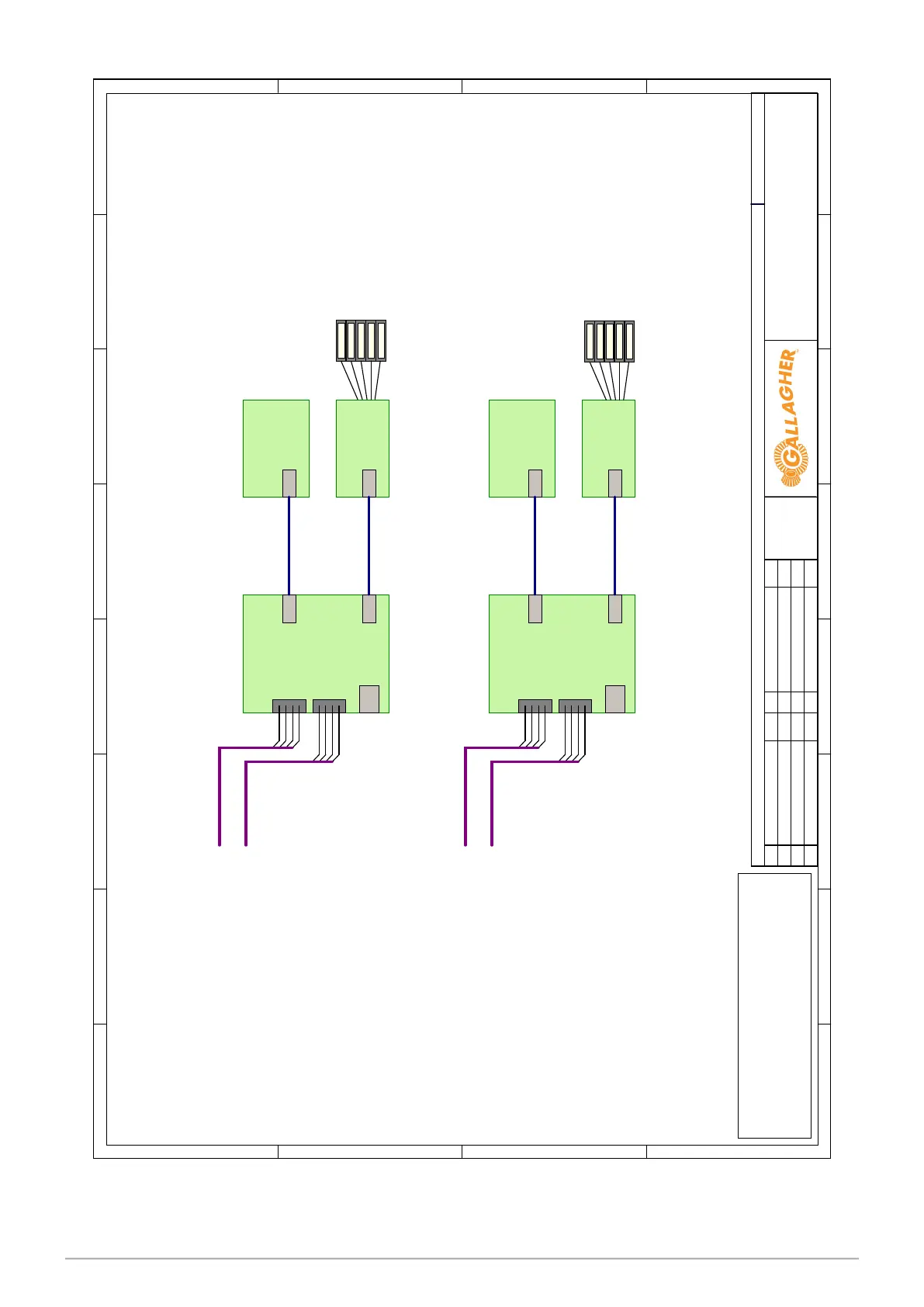

1 OR 2 USER INTERFACE MODULES
THIS DIAGRAM SHOWS THE IMPLEMENTATION OF 2 DISPLAY (USER INTERFACE)
BOARDS. 1 OF THE USER INTERFACES CAN BE OMITTED IF REQUIRED.
THIS IMPLIMENTATION CAN ACCOMODATE 2 PRICE DISPLAY BOARDS AND 2
MECHANICALTOTE DRIVE BOARDS (10 TOTES). THE PRICE DISPLAYS,TOTE
DRIVESAND TOTESARE OPTIONAL.
THE BOARDSARE POWERED VIA THE CENTRALCONTROLLER MODULE. THE
CONNECTIONS TO P80 AND P81 ARE INTERCHANGEABLE.
J6 J6
98326 98326
Figure 59. 1 or 2 User Interface Modules
