4 C SERIES HOSE INSTALLATION (HANGING)

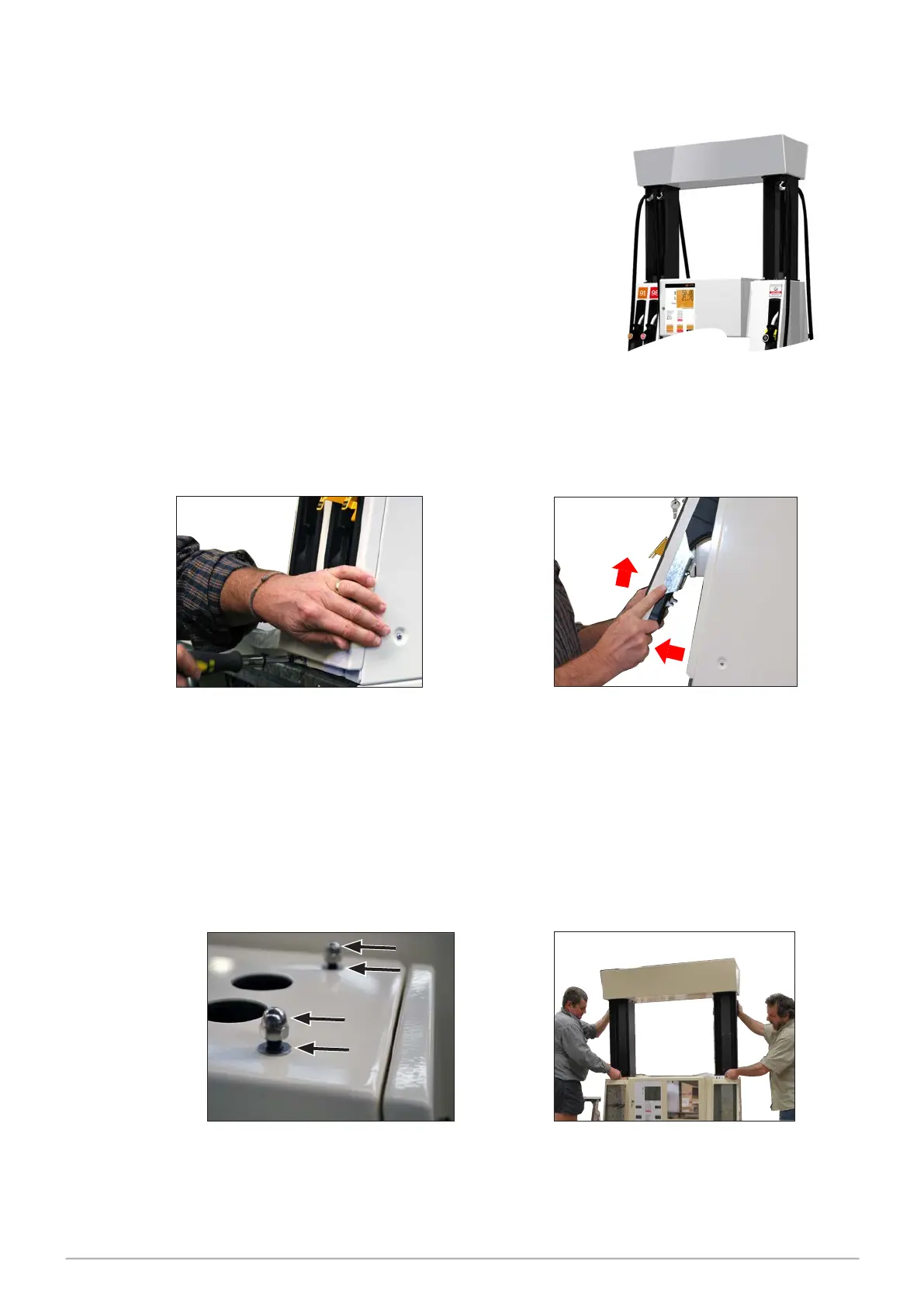

4.1 Remove the Holsters
Remove each holster as follows:
The installation of the spreader and hoses must be
carried out in a specific order of steps, namely:
i. Remove the holsters.
ii. Fit the spreader on top of the lower assembly.
iii. Fit the hoses.
iv. Refitting of holsters.
Hoses SHOULD NOT be fitted to the spreader prior to
placing it on top of the lower assembly. Placing the
spreader will require two people.
(a) Remove the 2 screws at the
bottom of the holster panel.
(b) Pull the holster panel out at the
bottom and lift up to remove
from the top panel.
4.2 Fit the Spreader
Inspect the spreader unit and dispenser to confirm they are free from damage. Then complete
the following steps: (Note that there is no front or back, both sides are the same)
(a) Remove all nuts and washers
from the top of the dispenser.
(b) Carefully lower the base of the
spreader unit down on the top
of the dispenser.
(c) Disconnect the holster switch.
