5.5 Attach the Hose Clamp to the Hose and Retractor Cable
Prepare the clamp by using single sided tape to retain the captivated nut in place.
tape

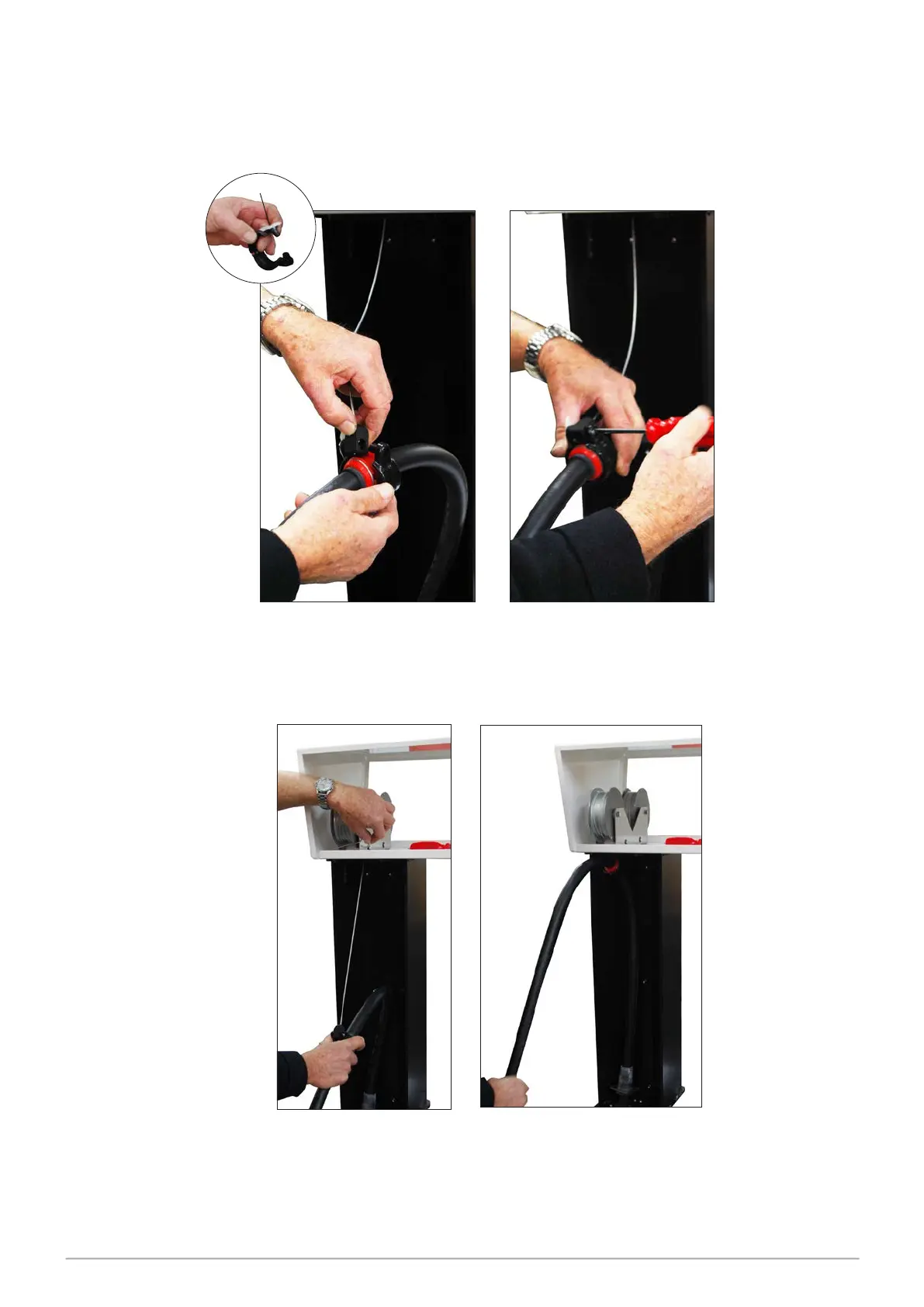

1. Place the clamp around the hose sleeve and fit the cable connector between the two
sides of the clamp.
2. Close the clamp and insert the screw into it, engage into nut and tighten.
3. Maintain tension on the cable while pulling the hose down to remove the locking pin.
4. Slowly allow the cable to slide upwards to the reel.
1.
2.
3.
4.
