Gallagher PULSE Series - Mains Connections; Figure 9� Comms Connections

INSTALLATION
32
PULSE Installaon, Commissioning and Servicing Manual - Revision 19

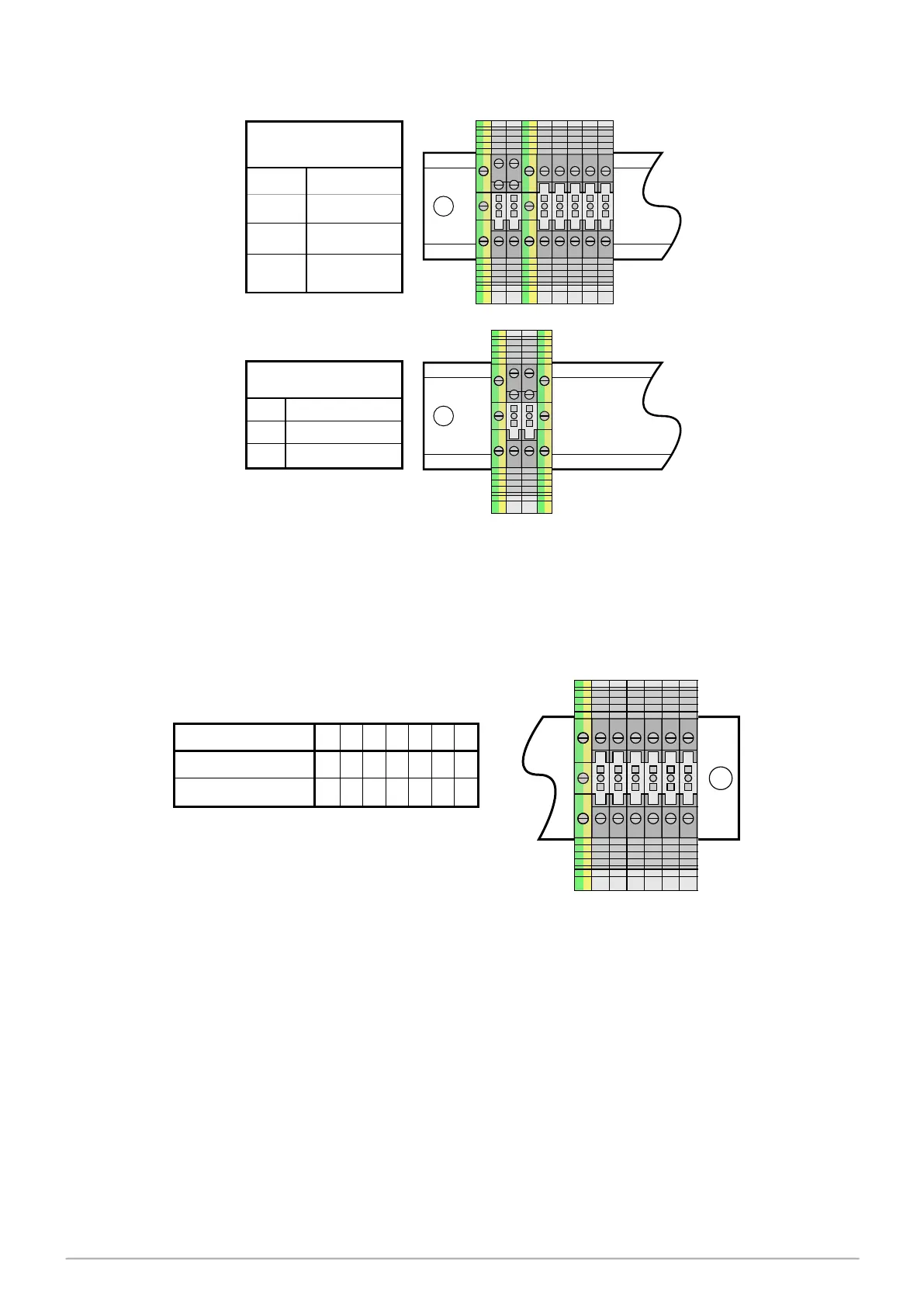

Figure 8. Mains Connections
PEPE
N
L
R1 R2 R3 R4 R5
Mains Supply
230/240 VAC, 10A, 50Hz
PE
Mains Earth
N
Neutral
L
Live/Phase
STP Control
Relays (L)
R4,R5
R1,R2,R3
Dispenser
Single Phase Pump
Mains Supply
230/240 VAC, 16A, 50Hz
PE Mains Earth
N Neutral
L Live/Phase
PEPE
N
L
61 2 3 4 5PE
Communications PE 1 2 3 4 5 6
2 Wire Pump Comms + -
Vapour Recovery dG dA dB SP SN
Dispenser, Single Phase Pump
Figure 9. Comms Connections
