INSTALLATION
24
PULSE Installaon, Commissioning and Servicing Manual - Revision 19

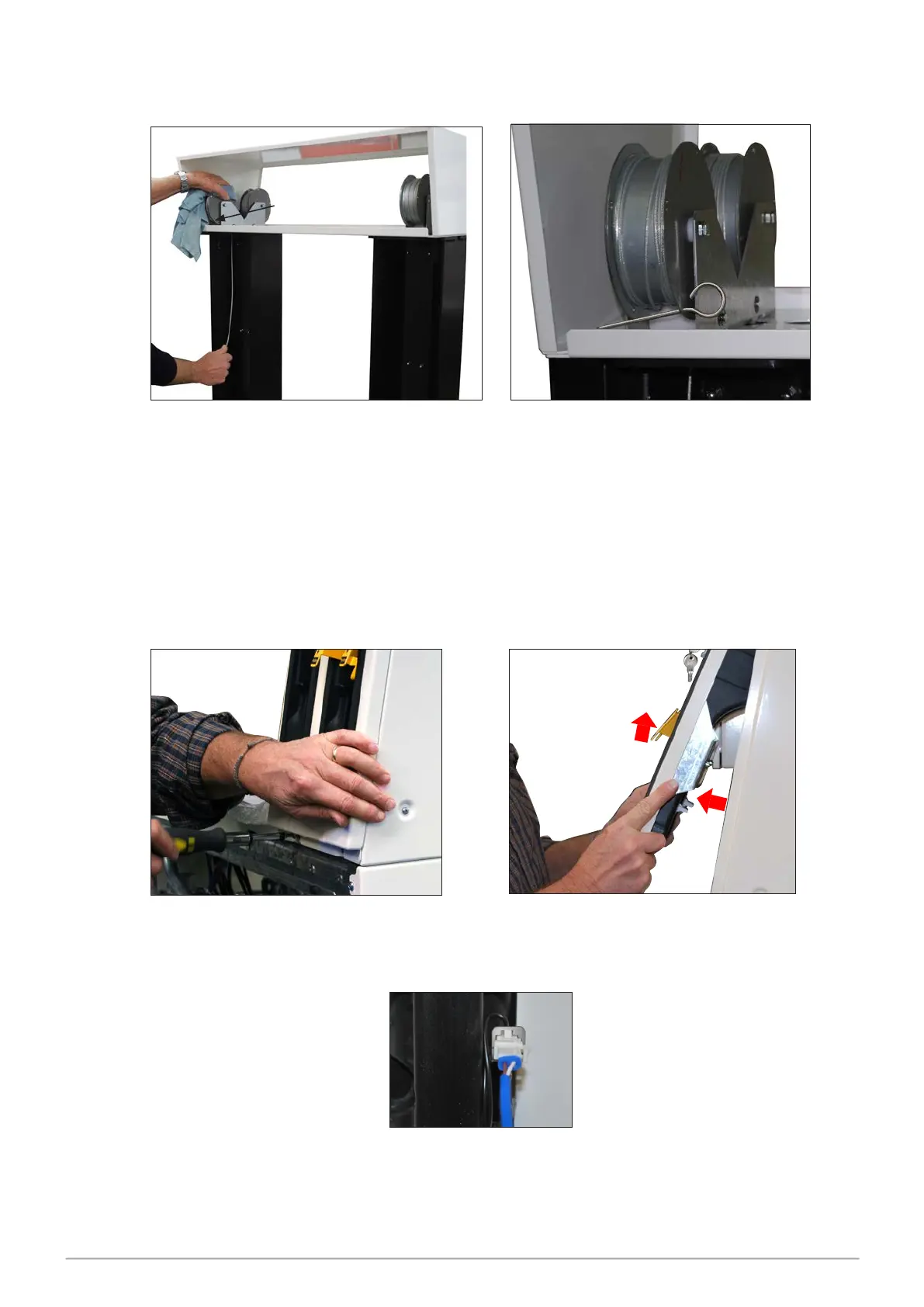

a Secure the spring reel while pulling the
cable down, until the hole in the spring
reel is visible next to the metallic support.
5.2 Prepare Spring Reel Cable for Connection to Hose
locking pin
hole
b While maintaining the tension on
the reel, secure it by inserting the
locking pin as shown above.
a Remove both screws at the bottom
of the holster panel.
b Pull the holster panel out at the
bottom and lift up to remove from
the top panel.
5.3 Remove Holster Panels to Allow Access to Hoses
The holsters and holster panels will need to be removed to allow access to hose connections.
The holster switch cable will also need to be disconnected to release the holster panels.
c Disconnect the holster switch cable.
(See Section 6)
