User Manual G3 units : Version 37, Firmware V4.0
• The Diesel Particulate Filter is replaced
• The dierential pressure sensor is replaced
• The Engine ECU is replaced
DPF Diesel Particulate Filter Replacement (L316-12, L405 4.4L, L494 4.4L, L319 3.0L
L320 3.0L, 2017+)
Usage
This routine is required when the Diesel Particulate Filter is replaced.
This routine should only be used after the Diesel Particulate Filter is replaced.
DPF Dynamic Regeneration (VIN Locked, L319, L320, L322-06, L322-10, L405, L462, L494,
L538, L550, L551, L560, L663, X540, X761, X590, X760, X260)
Usage
This routine is used when a forced regeneration is required (red warning lamp illuminated) . The same
condition required by a normal regeneration are to be meet.

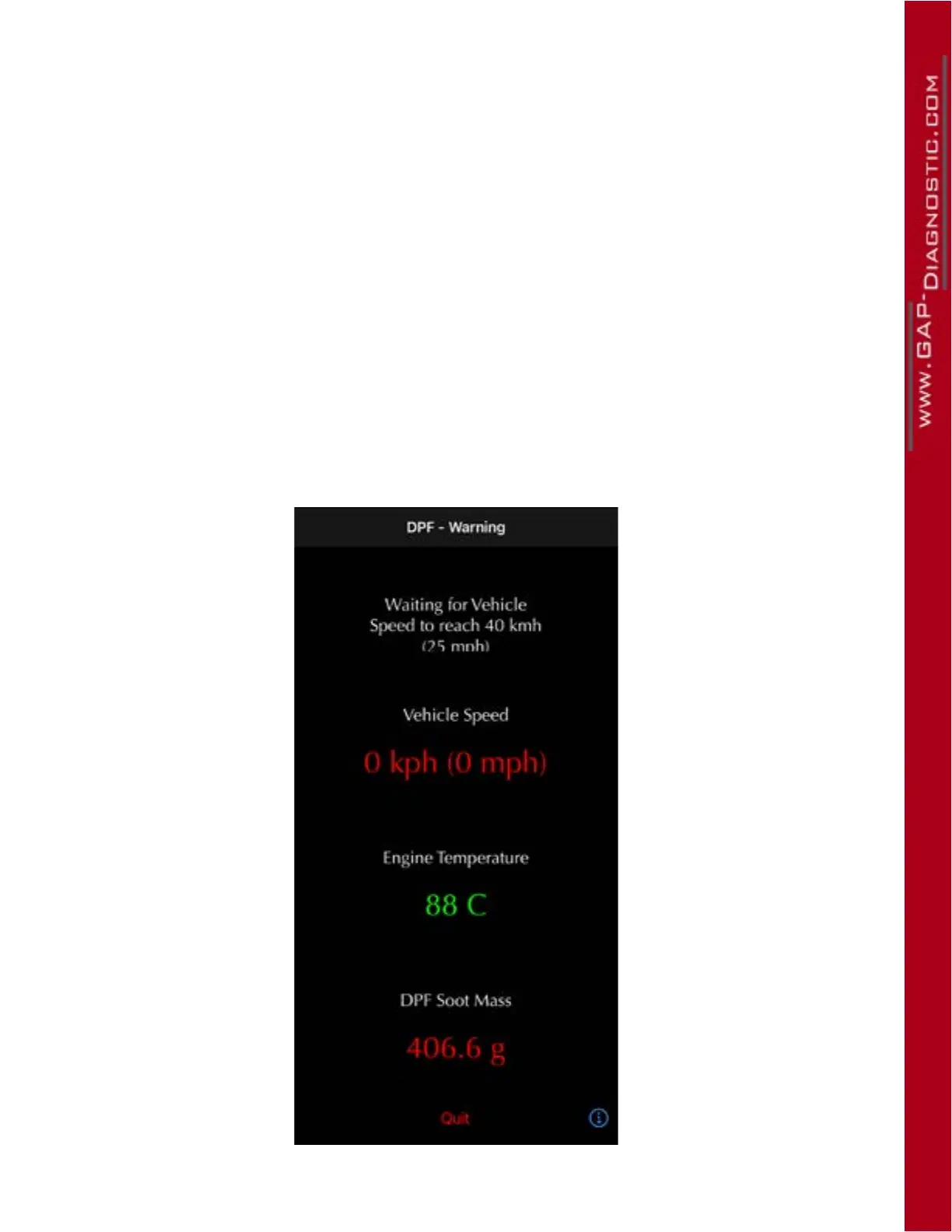

Figure 56. DPF Regen
