IIDTool
GAP Diagnostic 2023-09-12 All Rights Reserved
User Manual G3 units: Version 37, Firmware V4.0
For additional denitions or descriptions of abbreviations used in this manual, refer to the Glossary
located at the end of this manual.
The complete list of products and selected distributors contact information are available on the manu-
facturer’s website www.gap-diagnostic.com
1.3 Connectors descriptions

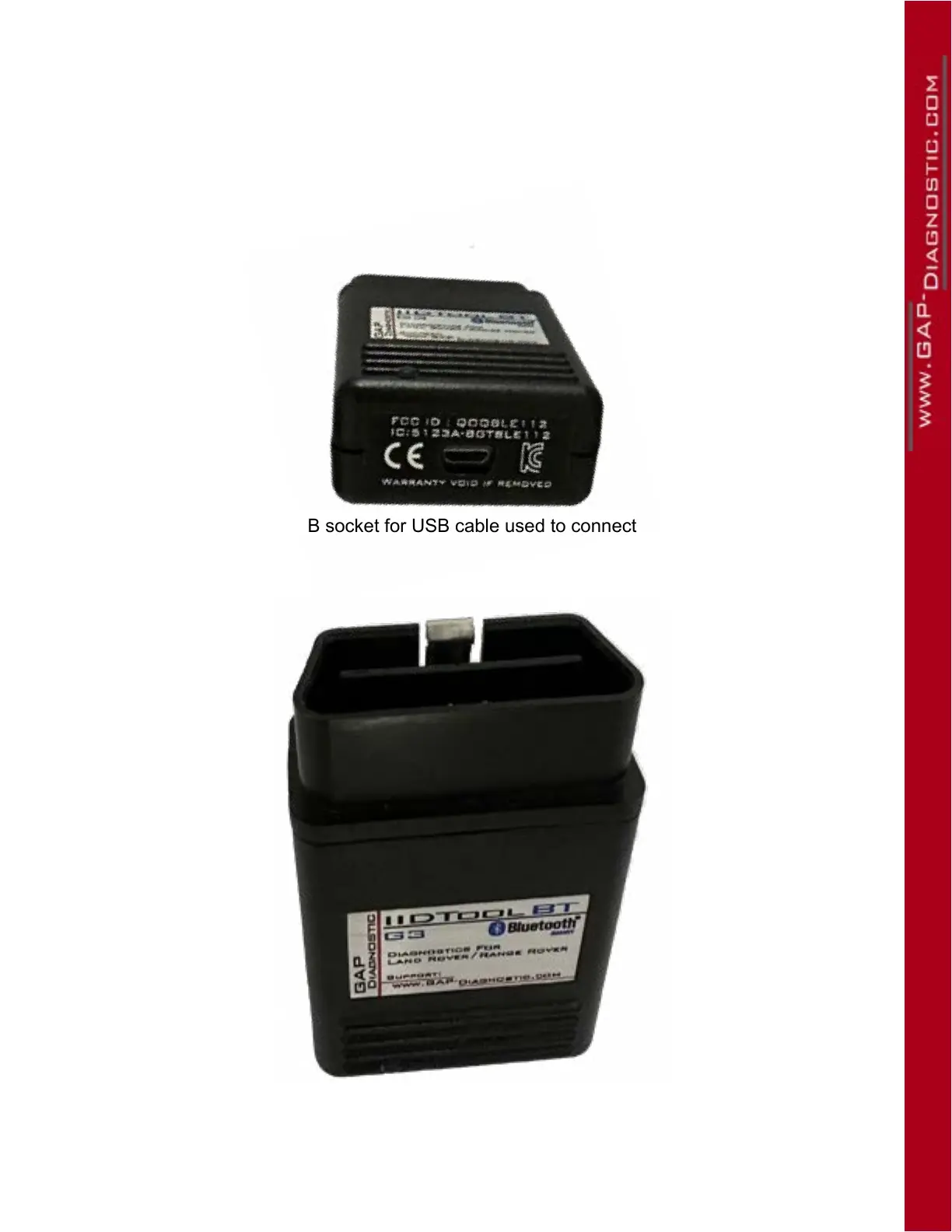

Figure 3. Micro or Mini USB socket for USB cable used to connect the IIDTool to a computer
Figure 4. OBDII connector allowing connection of the IIDTool to a vehicle
