IIDTool
GAP Diagnostic 2023-09-12 All Rights Reserved
User Manual G3 units: Version 37, Firmware V4.0

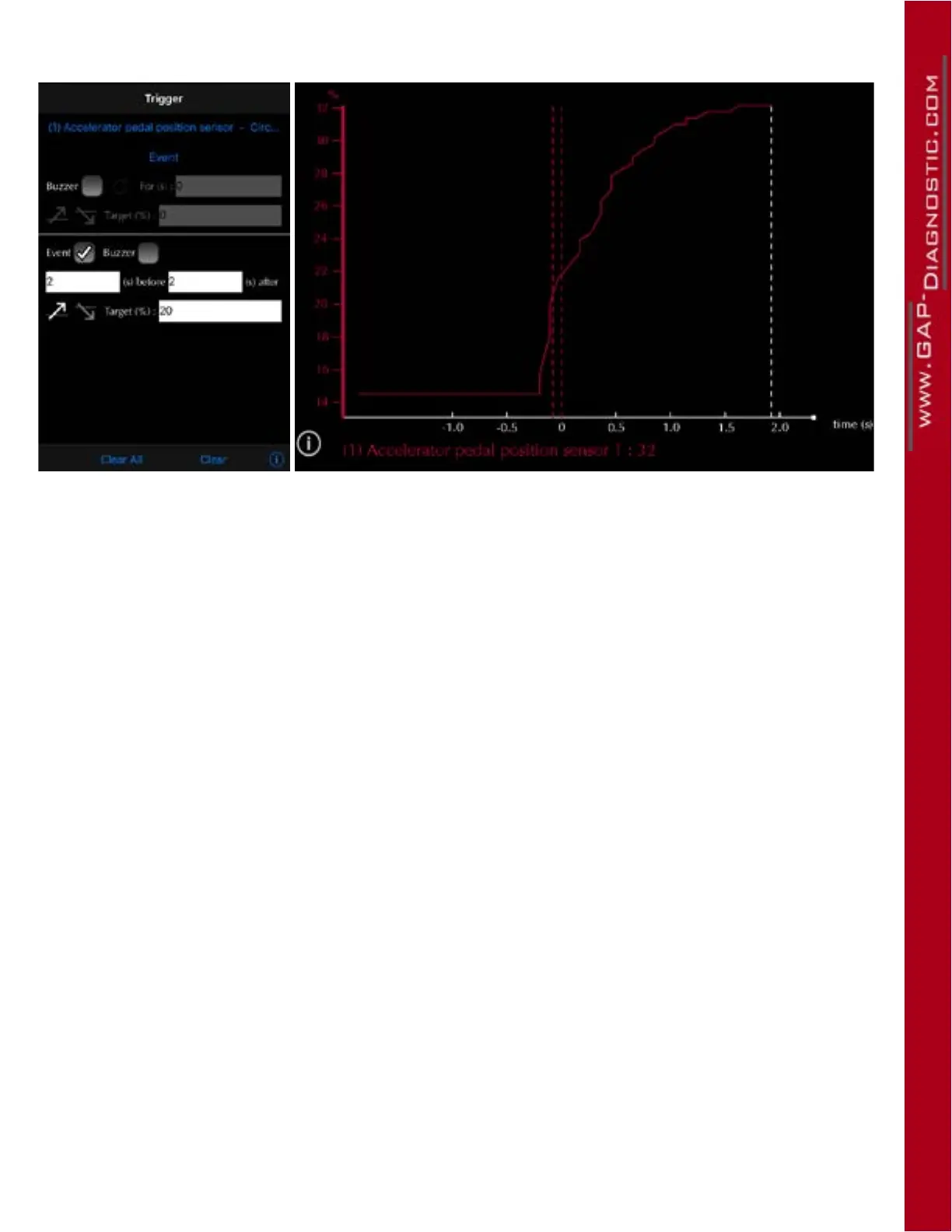

Event usage example
Figure 88. LV : Event usage example
• The live value increases and passes the Event target of 20 %.
• Recording begins and the previous data is kept (2 seconds).
• Recording continues for 2 seconds.
