3-50 Pilot’s Guide 190-02488-01 Rev. B
Navigation
Intersection, VOR, VRP, and NDB information pages have a uniform layout.
COMMON PAGE FEATURES
All waypoint information pages share the following features.
1 Waypoint Identifier key 5 Nearest NAVAID information
2 Location Information 6 Waypoint coordinates
3 Preview key 7 Waypoint distance and bearing
4
Waypoint specific information
(e.g., class, station declination, frequency)
Data Controls
• Distance and bearing from current
aircraft position
• Latitude and longitude
• Applicable city, state, country
and/or region (e.g., “NW USA”)
• Identifier and type icon
• Waypoint Identifier key with
access to multiple search tabs
• Preview key for displaying a 2-D
map of the surrounding area
(includes SafeTaxi airport
depictions)
As you approach an airport, use the Preview function to orient yourself for such
things as pattern entry or runway alignment.

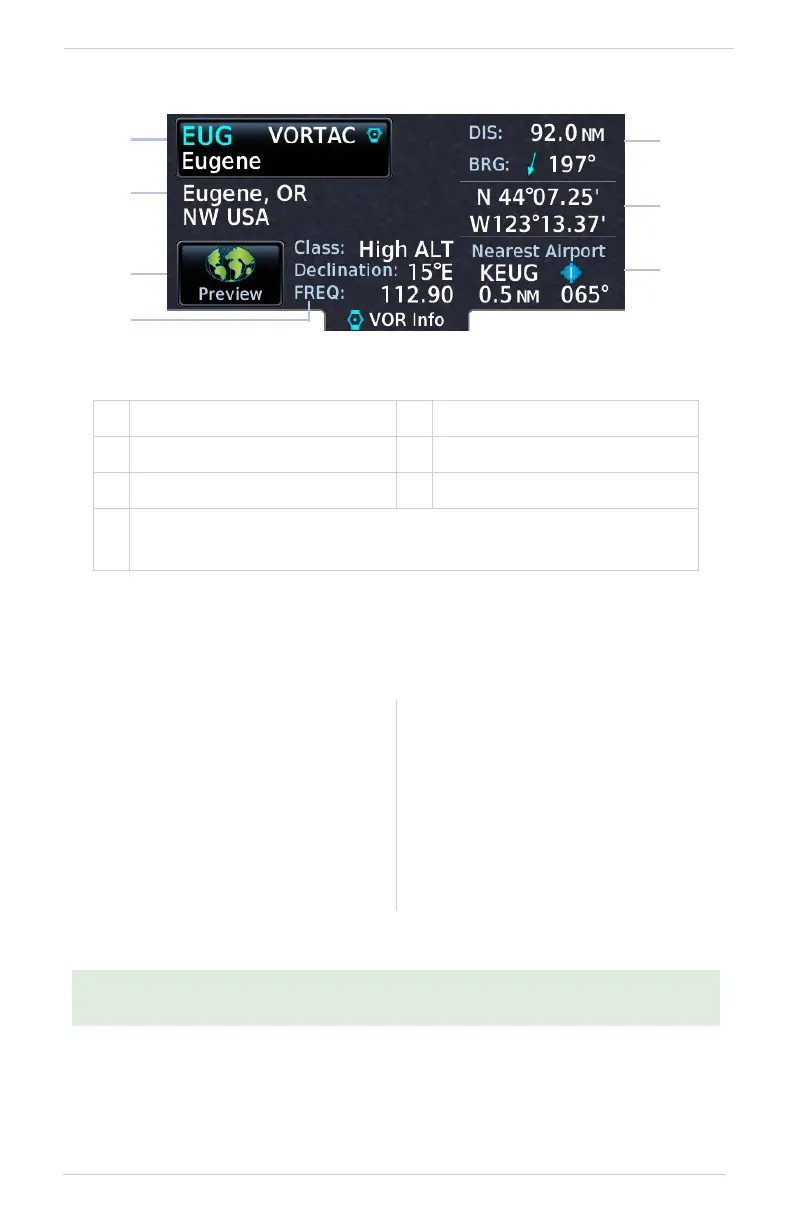

VOR Information Page
1
7
6
5
2
3
4
To Next Page
