ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
REV 11 (ISS 08/03/2010) Page 107

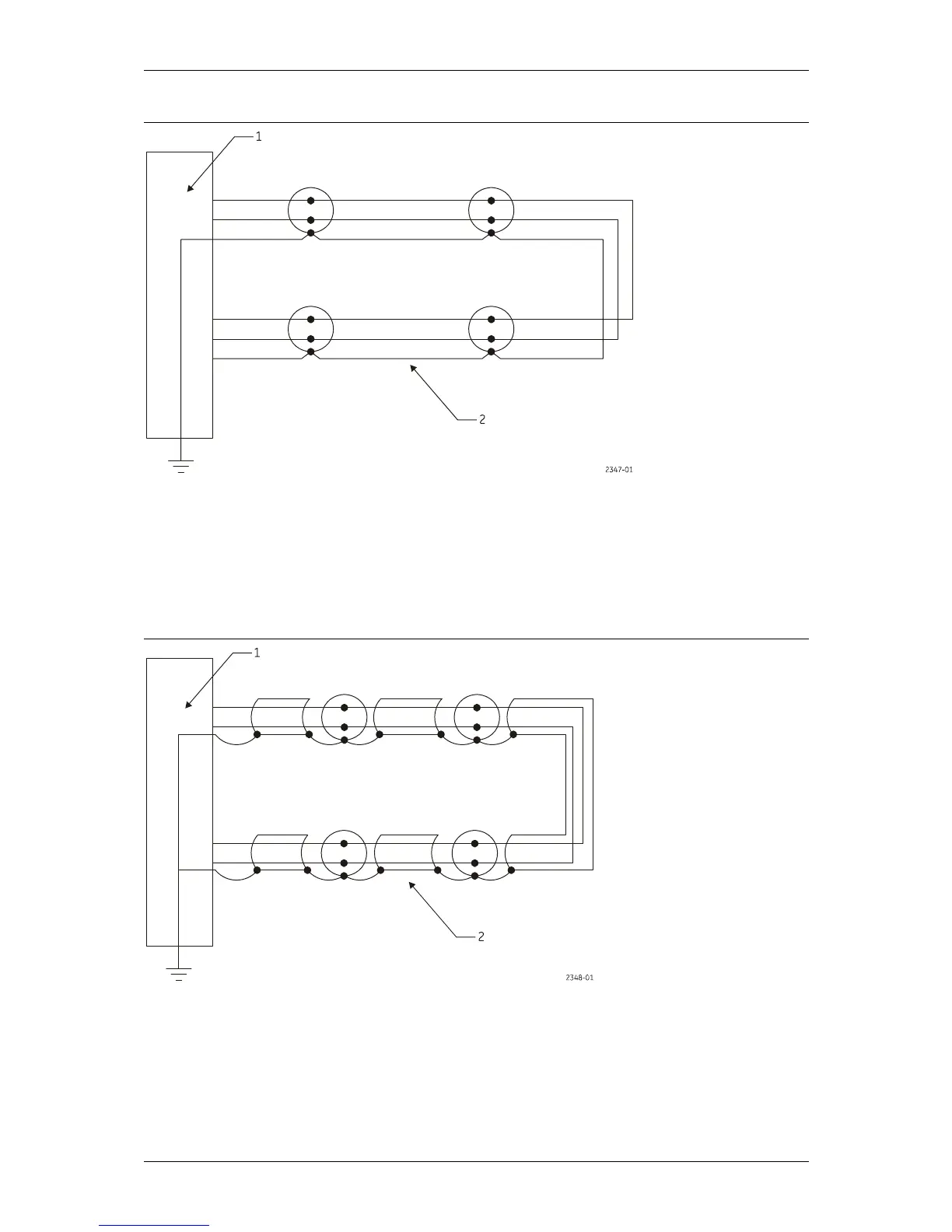

Figure 66: Shielded cable
Legend:
Item Description Item Description
1 Control Unit 2 Isolators
Figure 67: MICC
Legend:
Item Description Item Description
1 ZP Panel 2 Shield connected through
