ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
REV 11 (ISS 08/03/2010) Page 37
Preparatory work

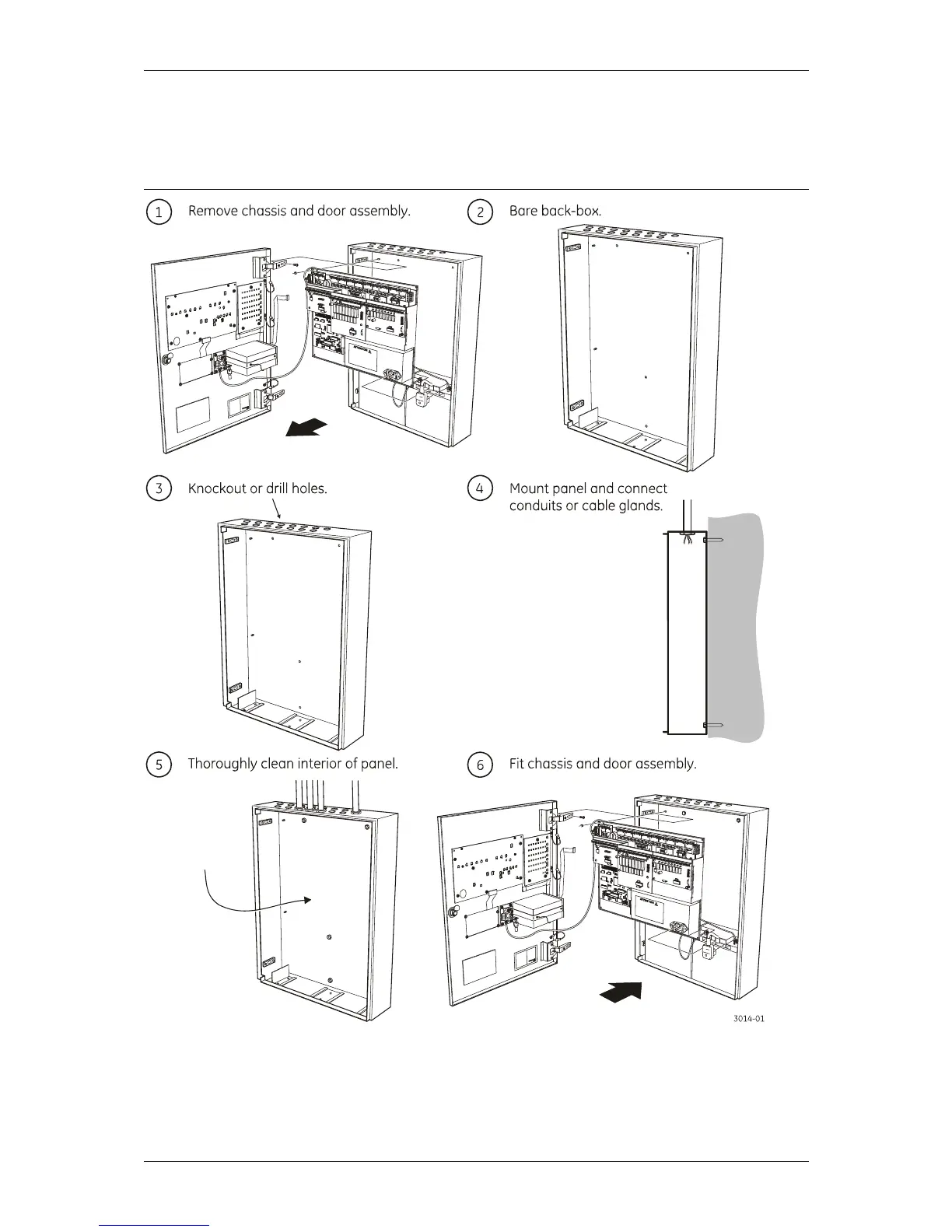

Figure 30 shows the basic steps to mounting a ZP3 fire panel on the wall.
Figure 30: Mounting a ZP3 Fire panel on the wall
