Printer
An optional ZP3-PR2 dot-matrix printer kit can be fitted to the door of a ZP3 control panel. The
printer kit consists of an ABLE printer, a Ziton Printer PCB and the necessary mounting hardware
to fit to the ZP3 panel.
The printer (see Figure 24) can be used to give a hard copy of panel alarms, fault events, panel
operations and report requests. The response to alarms, faults and panel operations can be
individually enabled/disabled in the panel software.

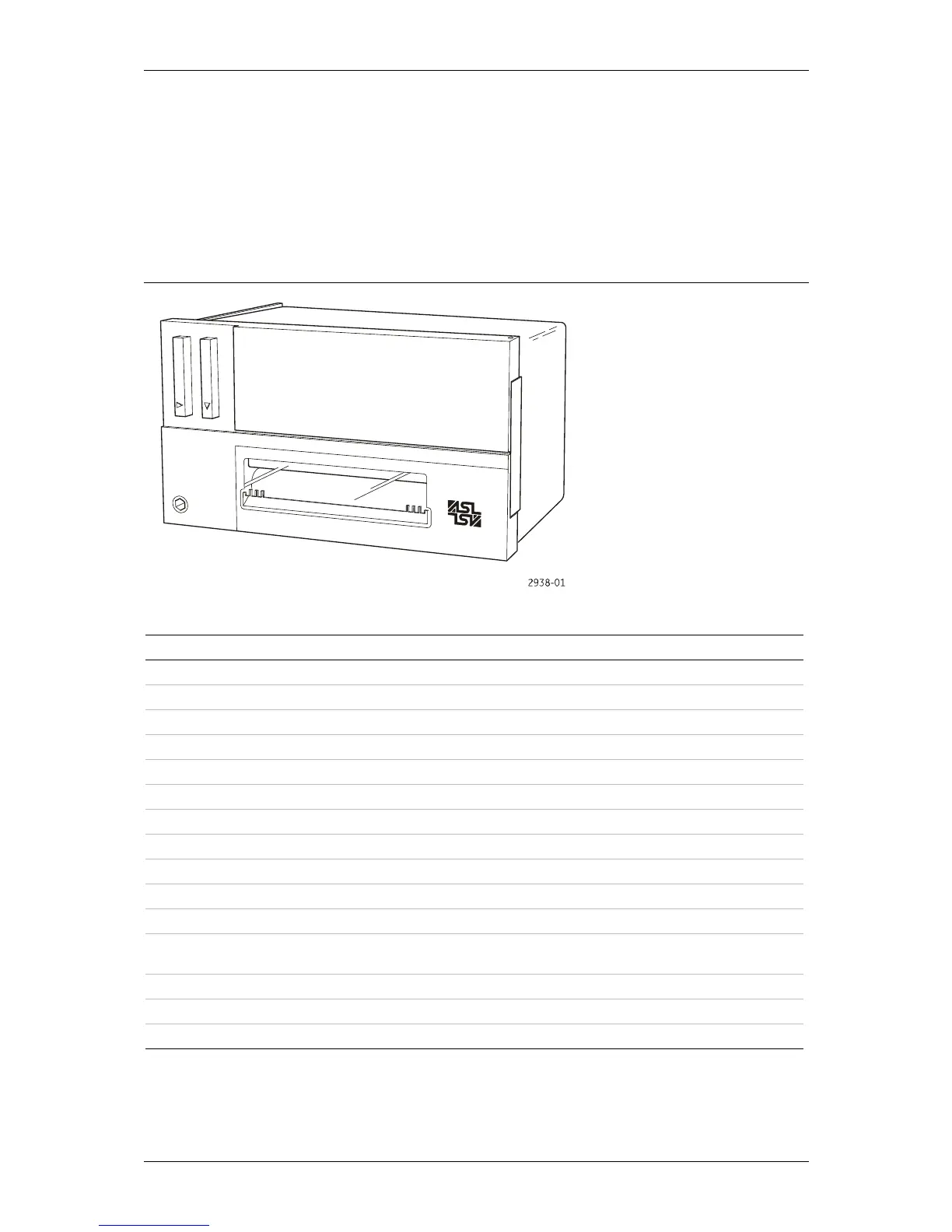

Figure 24: ZP3-PR2 Printer
Printer specification
Parameter Remarks
Description Printer Kit
Model No. ZP3-PR2
Part No. 172201
Character set IBM 224 Character set (ASCII Characters 32 to 255)
Character format When connected to the panel : ASCII 24 characters
Power Supply
Voltage 24 VDC
Current (standby) 23 mA
Current (printing) 180 mA
Printer Consumables
Ink ribbon cartridge ZP-PRC, Ziton Part Number 24201. 0.5 Million characters life
Paper roll ZP-PRR, Ziton part number 23701 or equivalent. 57.5 ± 0.5 mm (W), thickness 0.07
mm, outer diameter < 40 mm
Dimensions (W x H x D) 130 x 66 x 103 mm
Weight 404 g including full length paper roll
EN60529 Rating IP 00
