ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
Page 26 REV 11 (ISS 08/03/2010)
Modem
Introduction
The Digi One 1A Modem as shown in Figure 20 allows remote dial in access to the ZP3 panel for
diagnostic purposes.
The Modem communicates to the ZP3 panel via the serial port connector JP3 on the ZPAB-RS232
board located on the ZP3 panel. Legacy Modems were additionally controlled via a Modem
Control board connected on the panel’s SSB (serial synchronous bus).

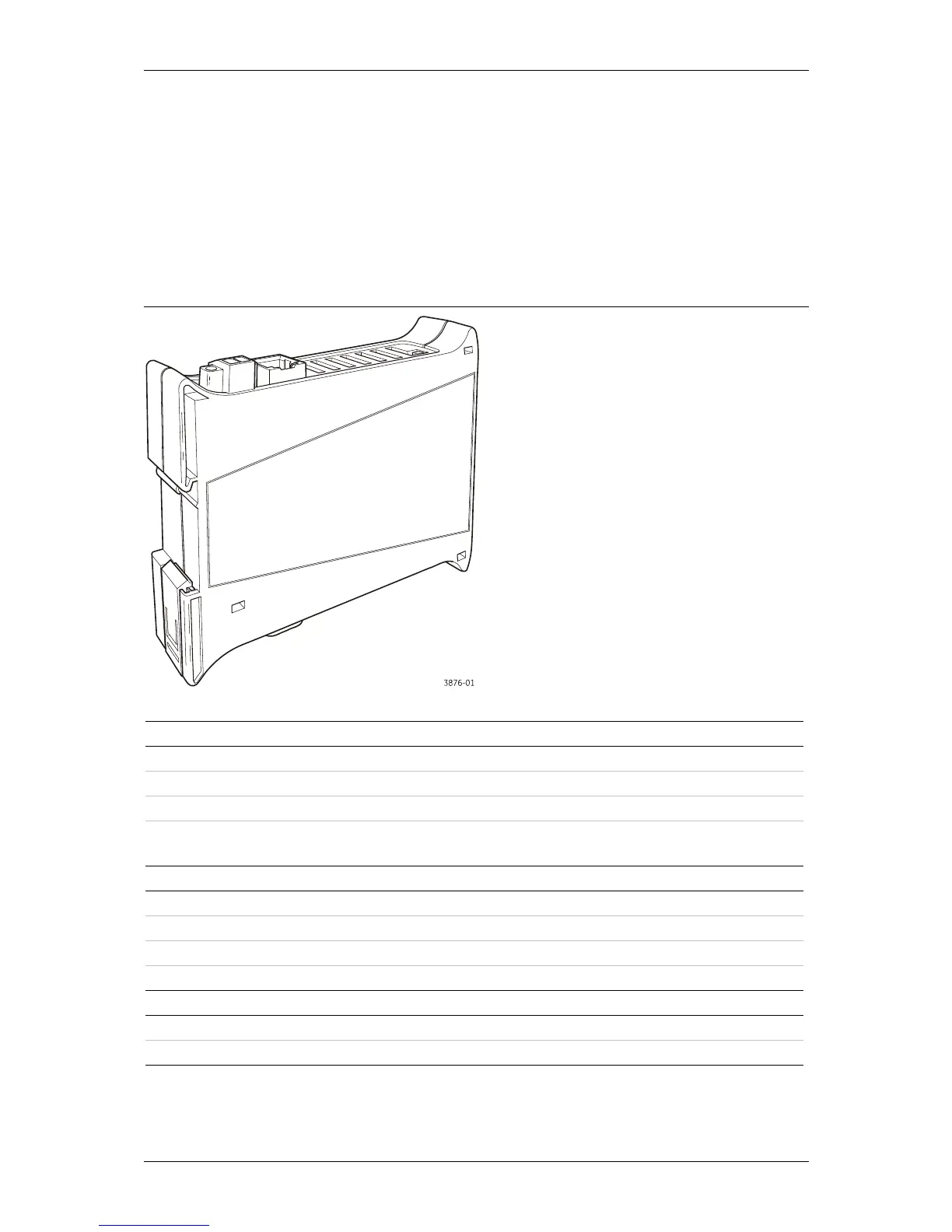

Figure 20: ZP3AB-MD3 Modem
Modem specifications
Parameter Remarks
Description Remote diagnostics modem
Mounting On the ZP3 accessory plate
Wiring Via connecting lead to the ZPAB-RS232 board
Power requirements:
2-contact barrel connector
+9 to +30 VDC
Environmental
Ambient temperature 0 to 55 °C
Relative humidity 5 to 90% non-condensing
Altitude 0 to 3658 m
EN60529 rating IP00
Construction
Dimensions (W x L x H) 83 x 133 x 19 mm
Weight 227g
