Earth bonding

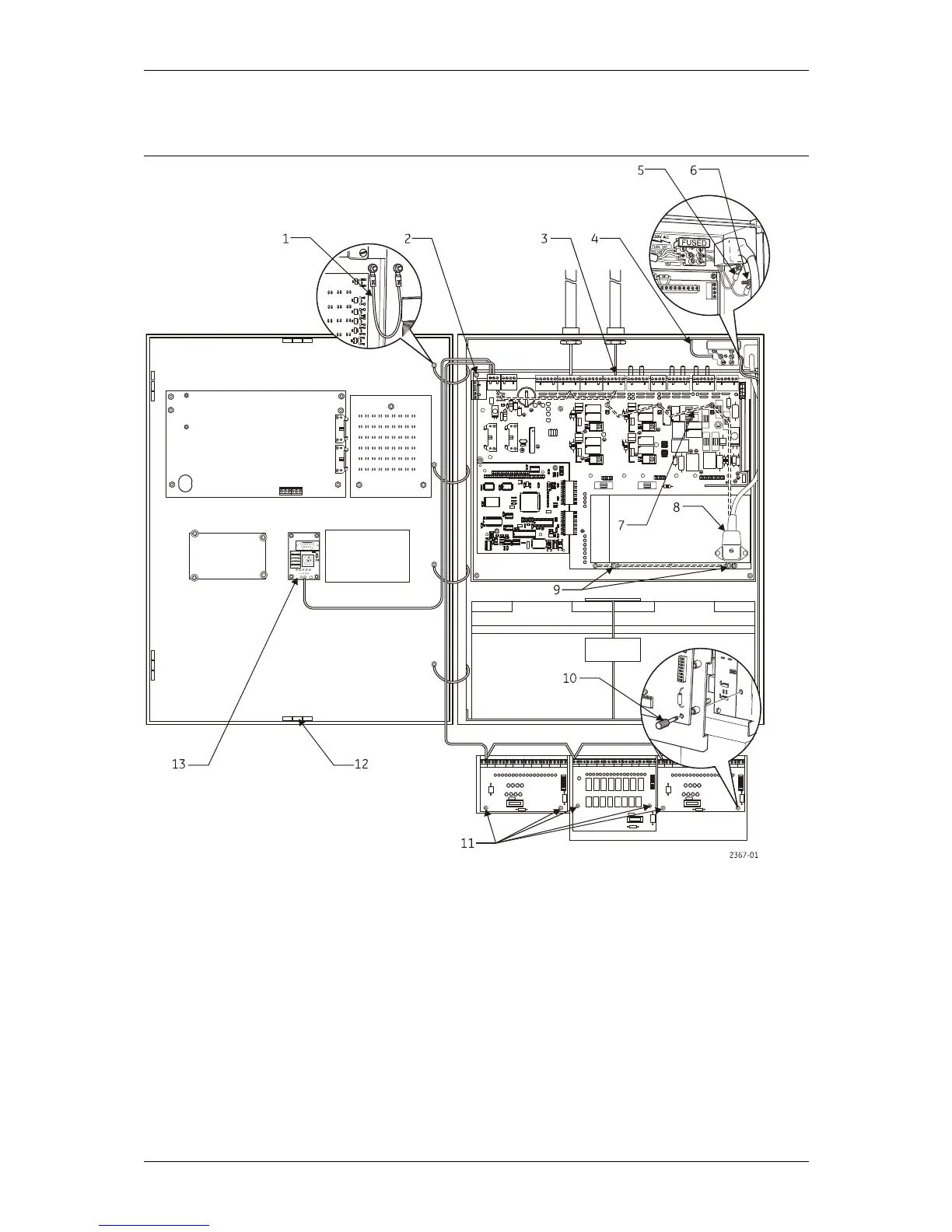

Figure 9: ZP3 Fire control panel – earth bonding

Legend

Item Description Item Description

1 Earth straps 8 Earth in cable to PSU

2 Chassis earthing nuts 9 Earth path to power supply cover

3 Earth connection to detector loop screens 10 Accessory plate earthing screw to chassis

4 Building earth 11 Earth path to accessory plate

5 Filter earth 12 Contact clips

6 Panel enclosure earthing stud 13 Commissioning board

7 Earth path to chassis
