ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
Page 38 REV 11 (ISS 08/03/2010)
Installation information
Cable entry

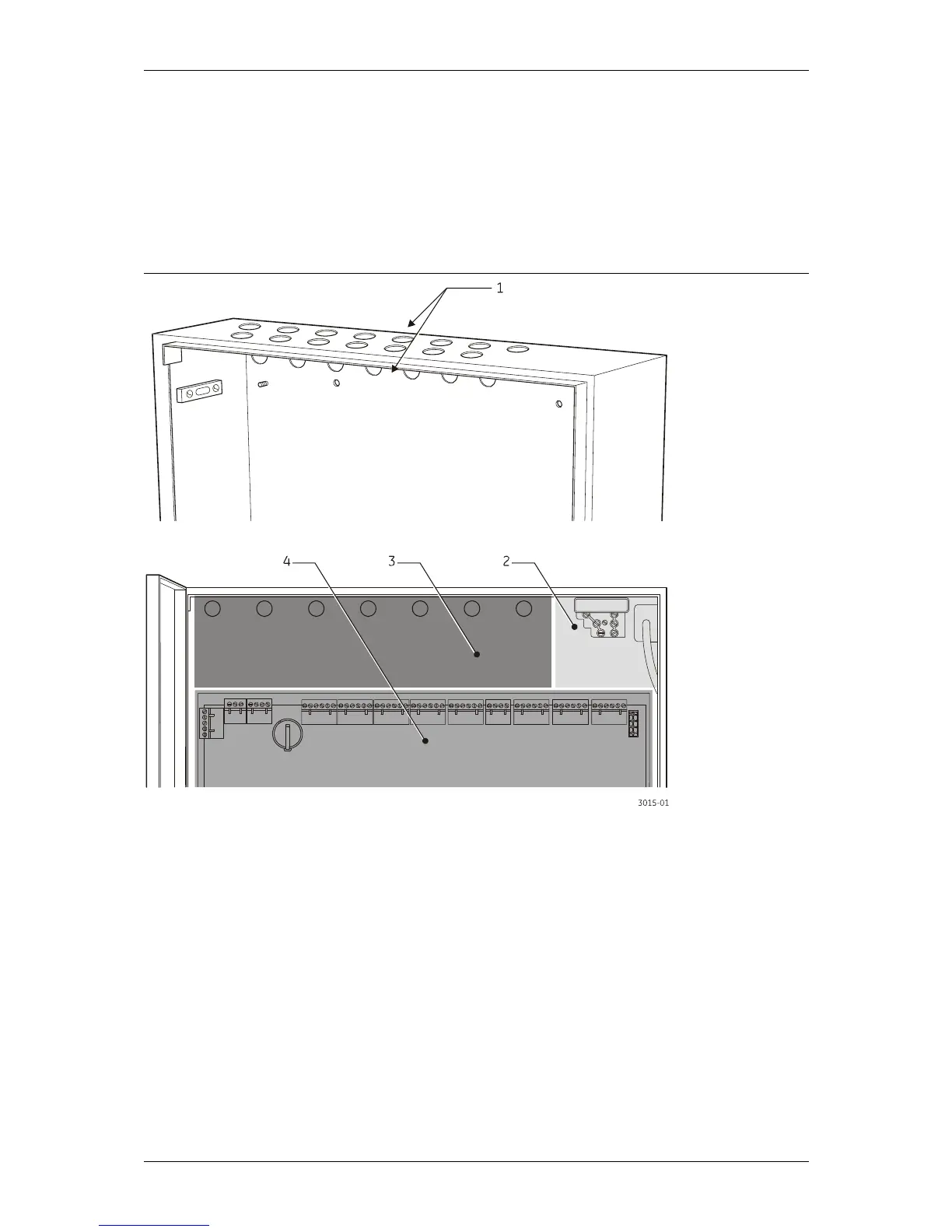

Cable entry and wiring areas to the ZP3 panel are restricted to specific areas as shown in Figure
31.
Figure 31: Cable entry to the ZP3 panel
Legend:
Item Description
1 Knockout conduits
2 Mains cable area
3 Low voltage cable area
4 Electronics chassis
It is very important to follow the above rules carefully. This ensures that cables are properly
separated from the electronic circuit boards. It also prevents physical damage to components
and removes noise interference.
