ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
REV 11 (ISS 08/03/2010) Page 9
Panel construction
Modular format
The ZP3 fire control panel (see Figure 4) is of modular design so that it can be configured for any
required application. It consists of a basic panel, which is fully functional, and available in 3
models, 1-loop, 2-loop, and 4-loop. The basic panel operates as a complete system without any
extras.

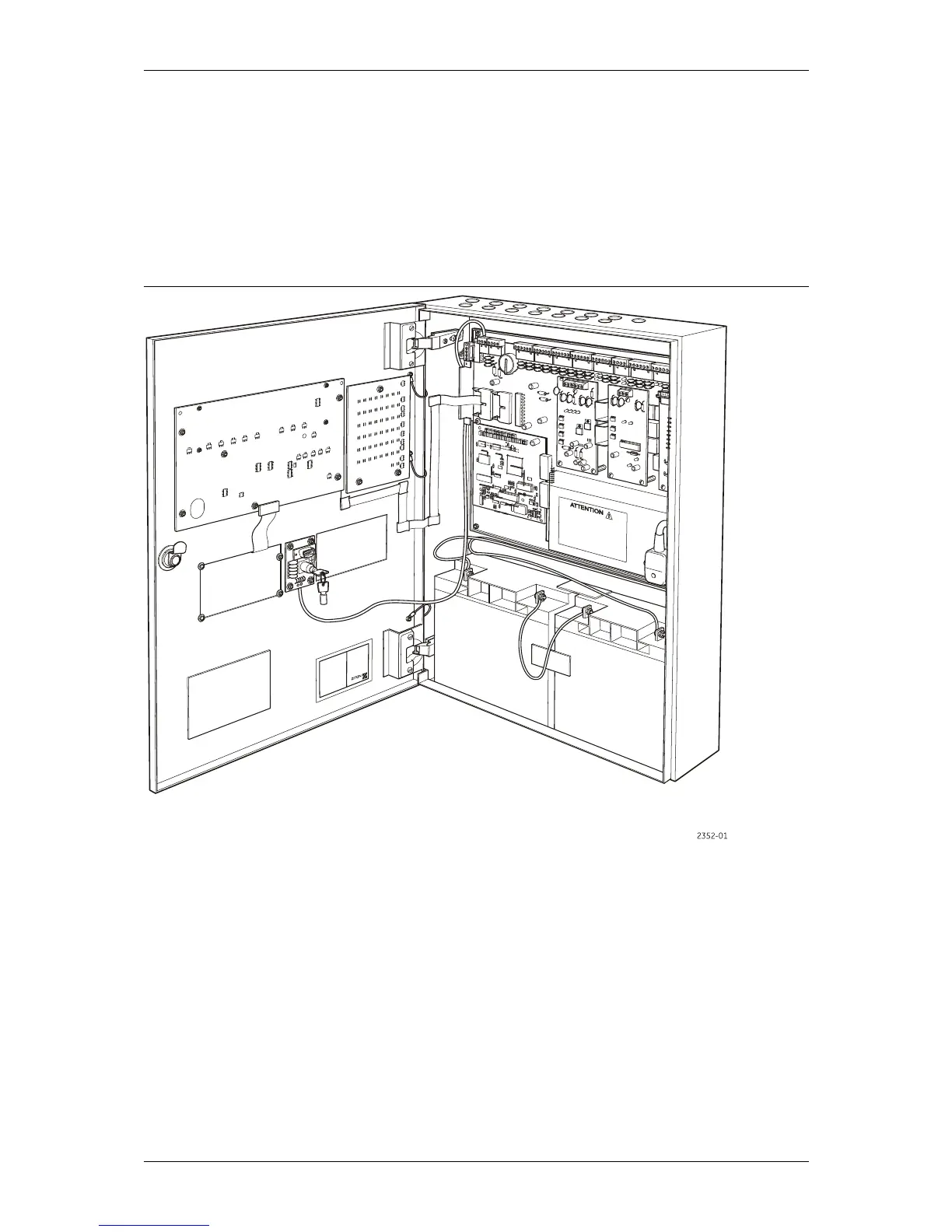

Figure 4: ZP3 Fire control panel - modular construction
Figure 4 shows the basic fire panel. The elements shown provide all required functions, and form
the core of the ZP3 panel. No optional I/O modules or printer are shown in this illustration. Three
comms boards are fitted.
