ZP3 Fire Control Panel Installation, Commissioning and Maintenance Manual
REV 11 (ISS 08/03/2010) Page 45
Chapter 3: Field wiring
Terminal layout
Terminal layout and locations are shown in Figure 37. Detailed connections for each function are
shown on the following pages.

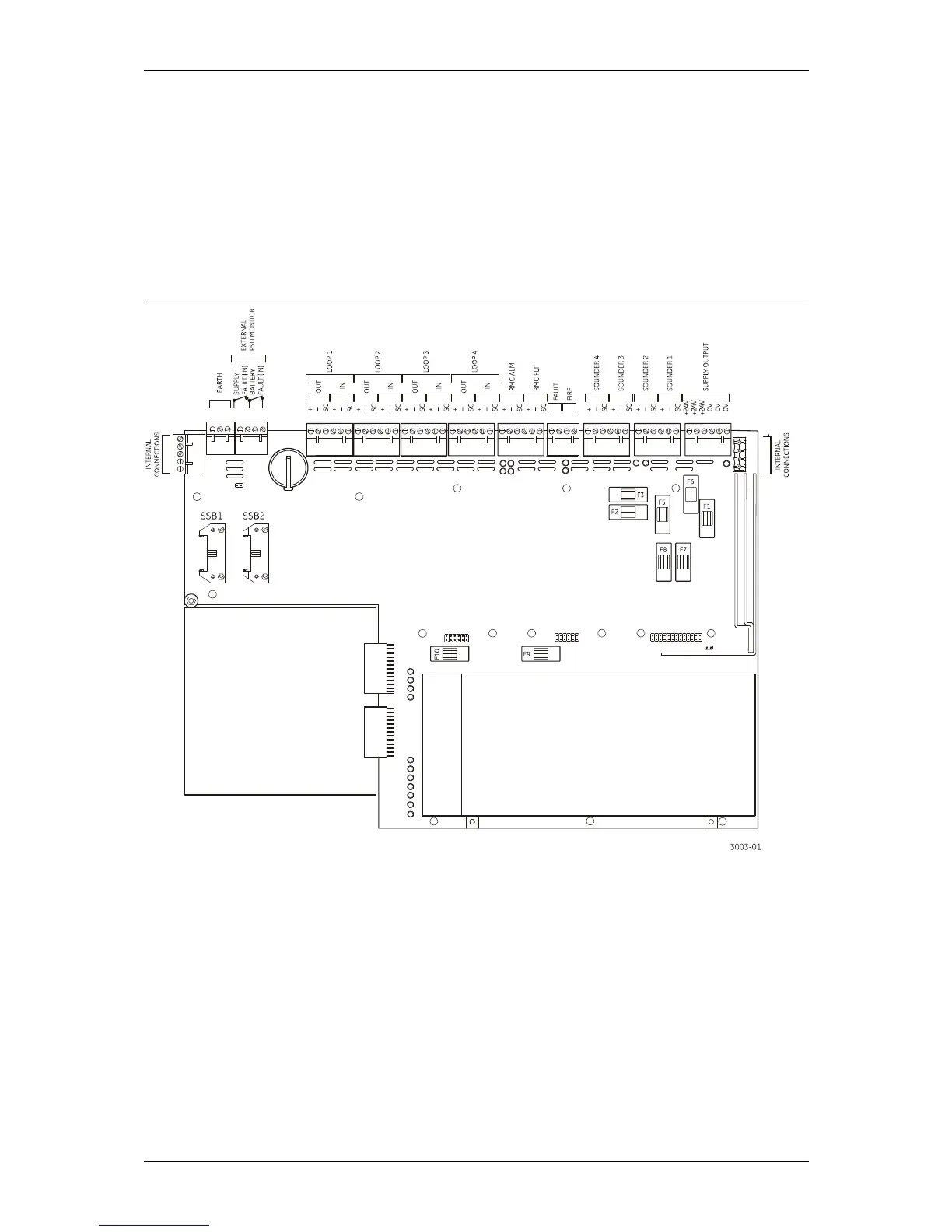

Figure 37: ZP3 Fire control panel main board terminal layout
Note: All terminals accept wiring sizes from 0.5 mm² to 2.5 mm².
Wiring size and type must be as specified in the Ziton ZP Wiring Guide. See “Appendix A: ZP Wiring guide” on
page 99 for more details.
