[EN] English - K0460 Instrument parts, accessories and options 1-3
Issue 1
1.3 The display
This is a OLED with a colour display with a touch-screen. To
make a selection, lightly tap on the applicable display area with
a finger; see Section 2.7 (Display operation).
1. Status bar: This includes:
a. Battery indicator b. Date and time
c. Indicators for a Pressure connection, a HART protocol
resistor, Datalog and wireless operation; for example:
: Pressure; : HART
2. CH1: Window for the channel 1 settings and values; see
Section 2.8.1.
d. Measure or source indication:
: Measure; : Source
e. Function (voltage, current, pressure ...)
f. Source process indicator; for example:
: Nudge; : Span check; : Ramp
g. Full scale (FS) range h. Function units
3. Other windows: The number of windows seen on the display is
set by the number of task selections and external modules you
are working with (maximum: 6); see Section 2.7.
4. Tap this button to set up the Task, set up the instrument
(Configure) and to access Help (?). see Section 2.8 (Menu
sequence).
5. Tap this button to maximise each of the available
windows in sequence; see Section 2.7.4
6. Pause (II) or Play (X): Tap (II) to hold (freeze) all the data on the
display. To release the display and continue, tap (X).

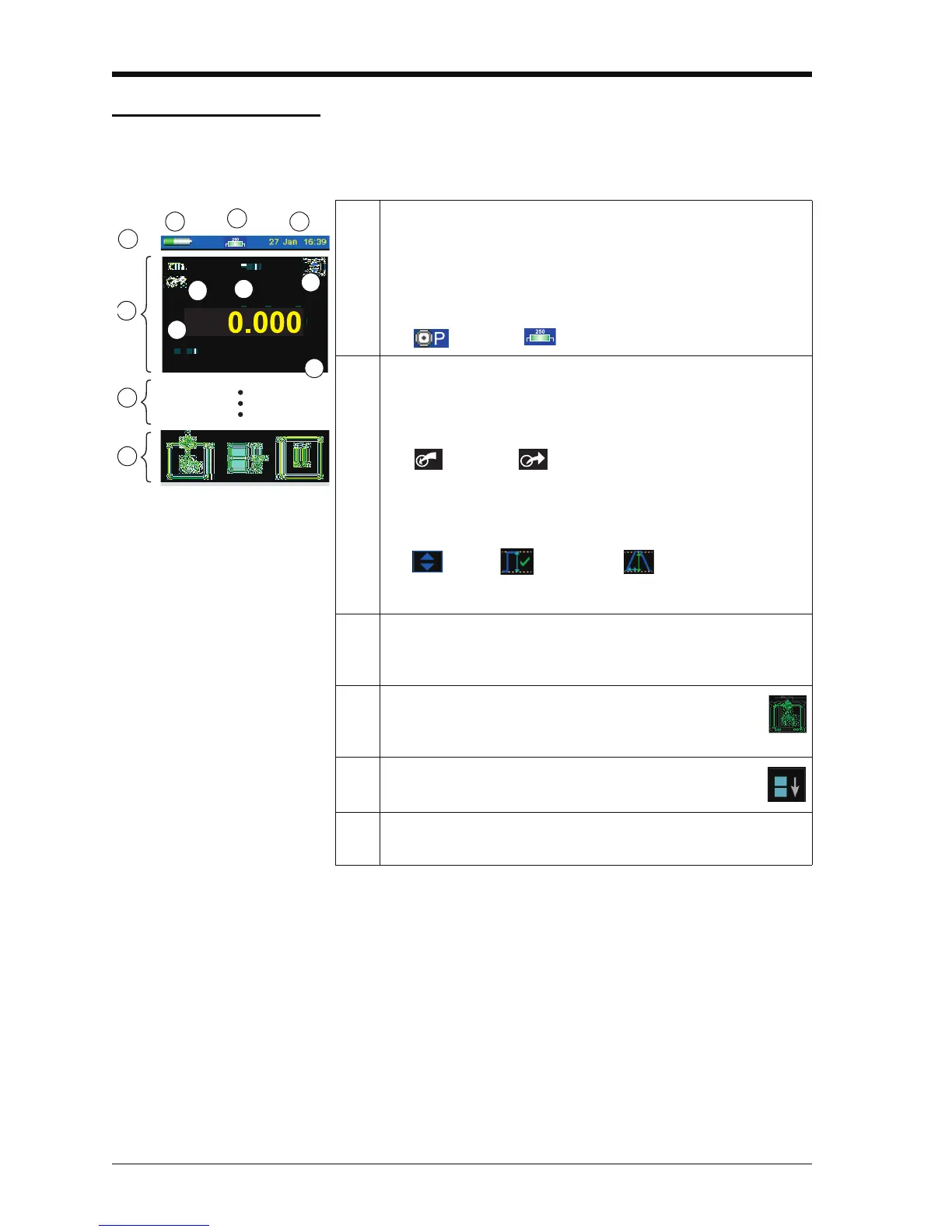

Figure 1-6: Example display
h
b
1
2
4
3
g
a
d
c
e
f
