• If necessary, change the Process for the CH1 and/or CH2
measure functions: item
This includes: Tare, Alarm, Filter, Flow, Scaling; see
Section 2.9.1.
There are more optional Settings for the TC, Frequency, and
RTD functions.
• If necessary, change the Automation options for the CH1
and/or CH2 source functions: item
This includes: Nudge, Span Check, Percent Step,
Defined Step, Ramp; see Section 2.9.2.
There are more optional Source Settings for the TC,
Frequency, and RTD functions.
There are other Settings for Observed functions; see
Section 2.9.3.
• When all the software selections are complete, make the
applicable electrical connections.

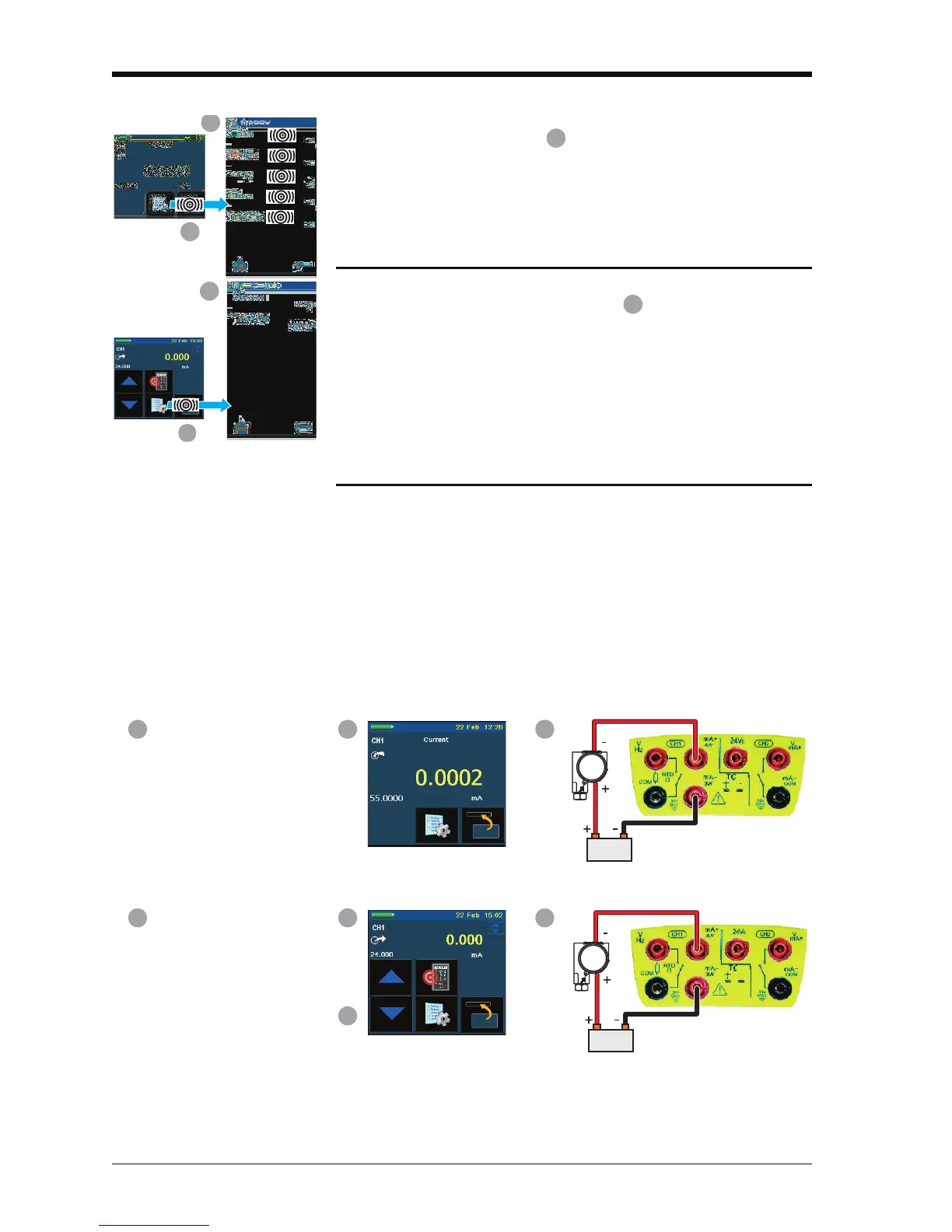

3.2.2 Example procedure: Measure or source current
These examples (A and B) show Channel 1 (CH1) set-up to
measure or source a current with external loop power.
Note: Using Channel 2 (CH2) connectors, use Channel 2 to
measure or source these ranges with internal or external loop
power (internal loop power = 24 V).
1
D
TAP
1
E
TAP
D
E
2
Maximum: 30V
Source current on
channel 1 (CH1)
Range: 0 to 24 mA
Automation: Nudge
(Section 2.9.2)
2
Maximum: 30V
1
B
3
Measure current on
channel 1 (CH1)
Range: ±55 mA
A
1
