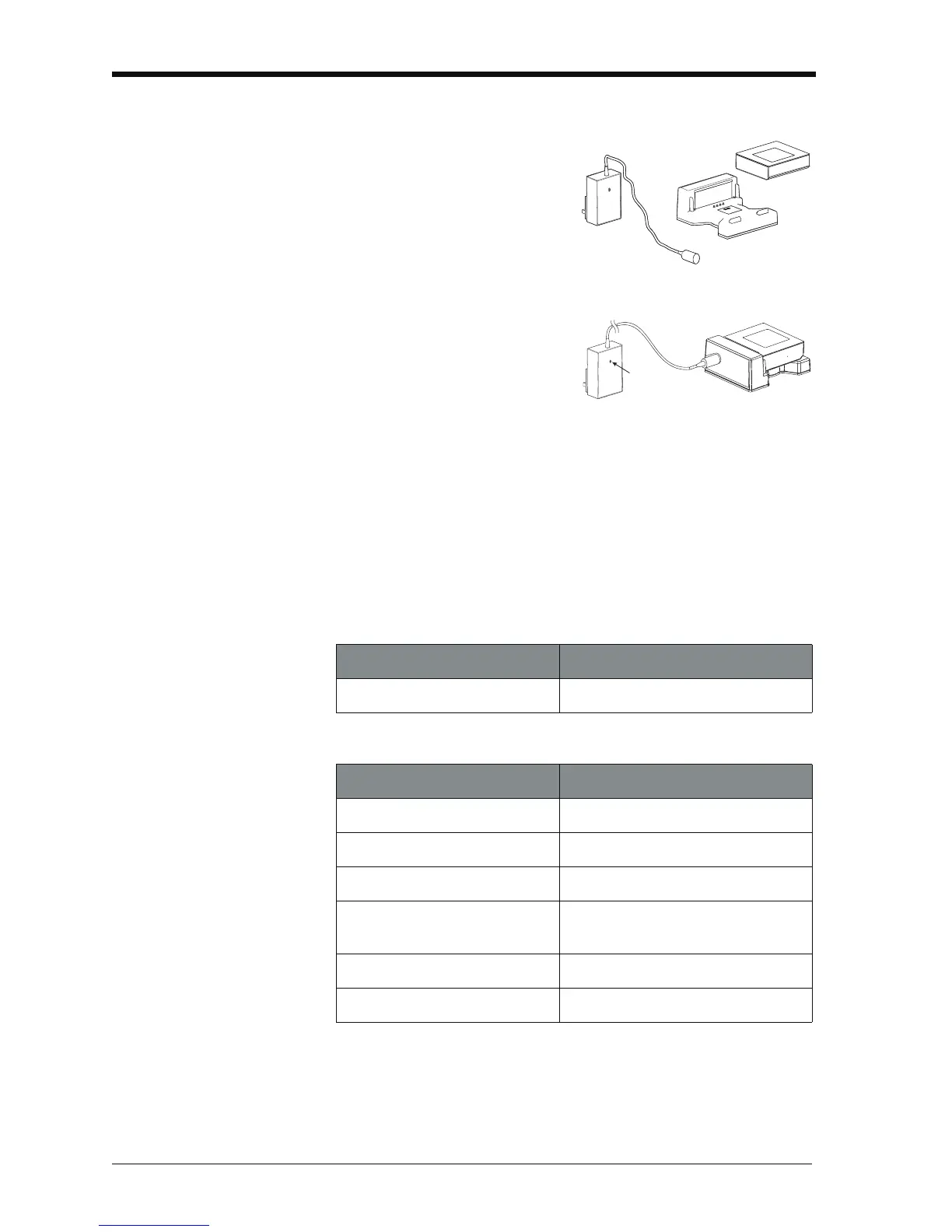

2.5.3 Charge the battery
Fully-charge the battery, using
the charger and cradle, in a
safe area.
• The battery pack [a] (part
number: IO620IS – Battery)
will be partly-charged, it is
recommended to fully
charge the battery pack
before using the instrument:
• Connect the charger [b]
(part number:
IO620IS-Charger) to a
power supply.
• Connect the charger to the cradle [c] (part number:
IO620IS-Cradle).
• Correctly insert the battery into the cradle (making sure the
battery pack label faces upwards).
• The battery charger LED [d] indicates the different charge
states. When the LED shows green the battery pack is
fully-charged and ready to use. The battery pack takes
approximately 8 hours to fully charge.
2.5.4 Charge times
During the charge cycle the charger LED indicator changes
colour:
[a]
[b]
[c]
[d]
Charge method Charge time (to full capacity)
External battery charger
≈ 6.5 hours
LED Indicator Mode
Yellow Battery not connected
Yellow Battery initialisation and analysis
Orange Fast charge
Green with intermittent yellow
flash
Top-off charge
Green Trickle charge
Alternating orange - green Error
