Chapter 8 Replacement Procedures 8 - 55
8-5-8-4 Removal Procedure (cont’d)
7.) Unscrew five screws (3-7) and remove OP Side L Cover. Refer to Figure 8-53.
NOTE: Different screw in length is used in the location Number (7).
8.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-5-8-5 Mounting procedure
Install the new parts in the reverse order of removal.

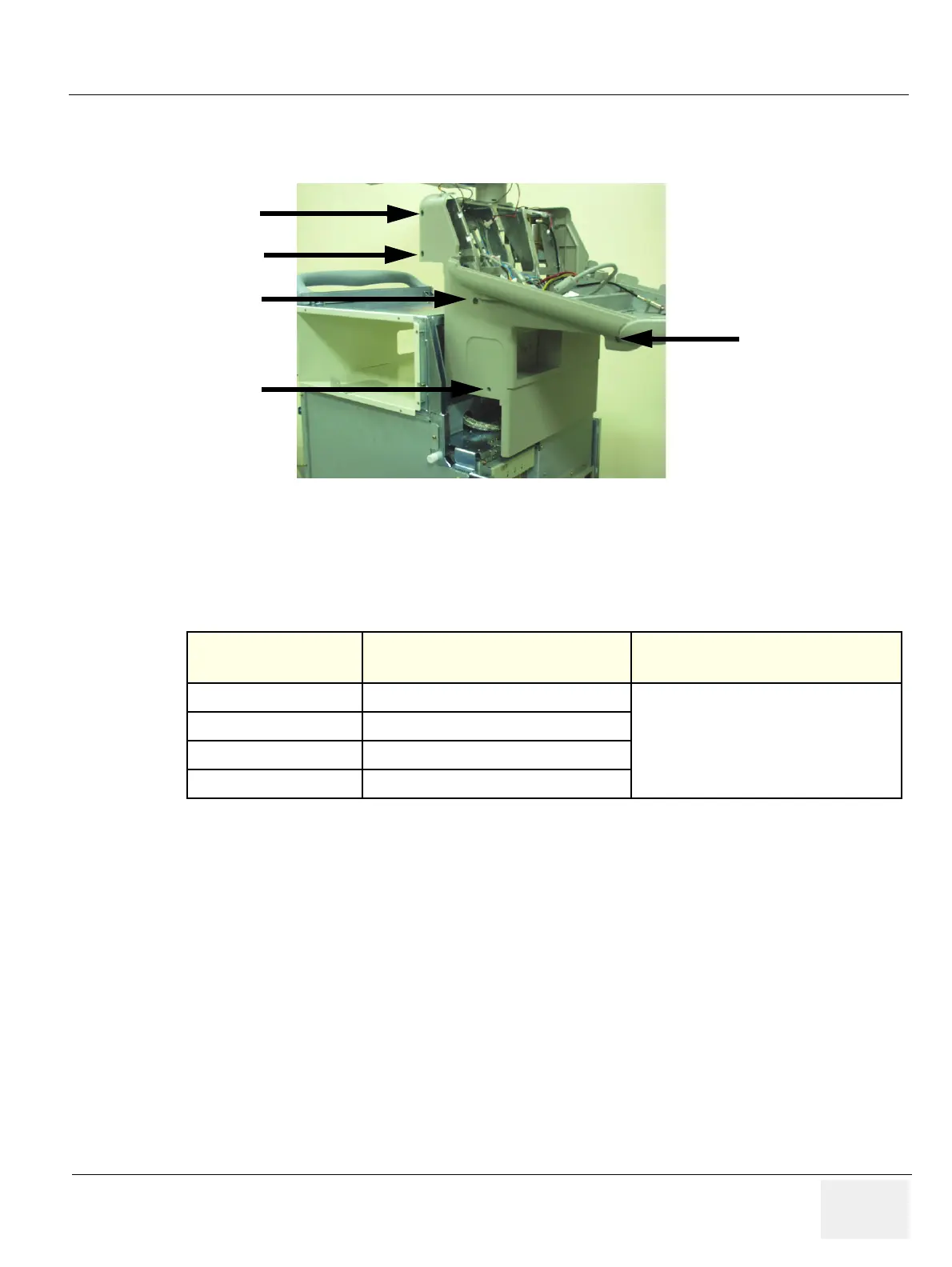

Figure 8-53 Unscrew 5 screws to remove OP L Cover
Table 8-27 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2380207, Rev 7+, Section 8-5-8. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-12-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
(3)
(4)
(5)
(6)
(7)
