Gefen EXT-GAVA - Page 91

page | 79
Adding Rooms
Using the GAVA Wizard
3. Click the Save and Congure button in the lower right corner of the screen.

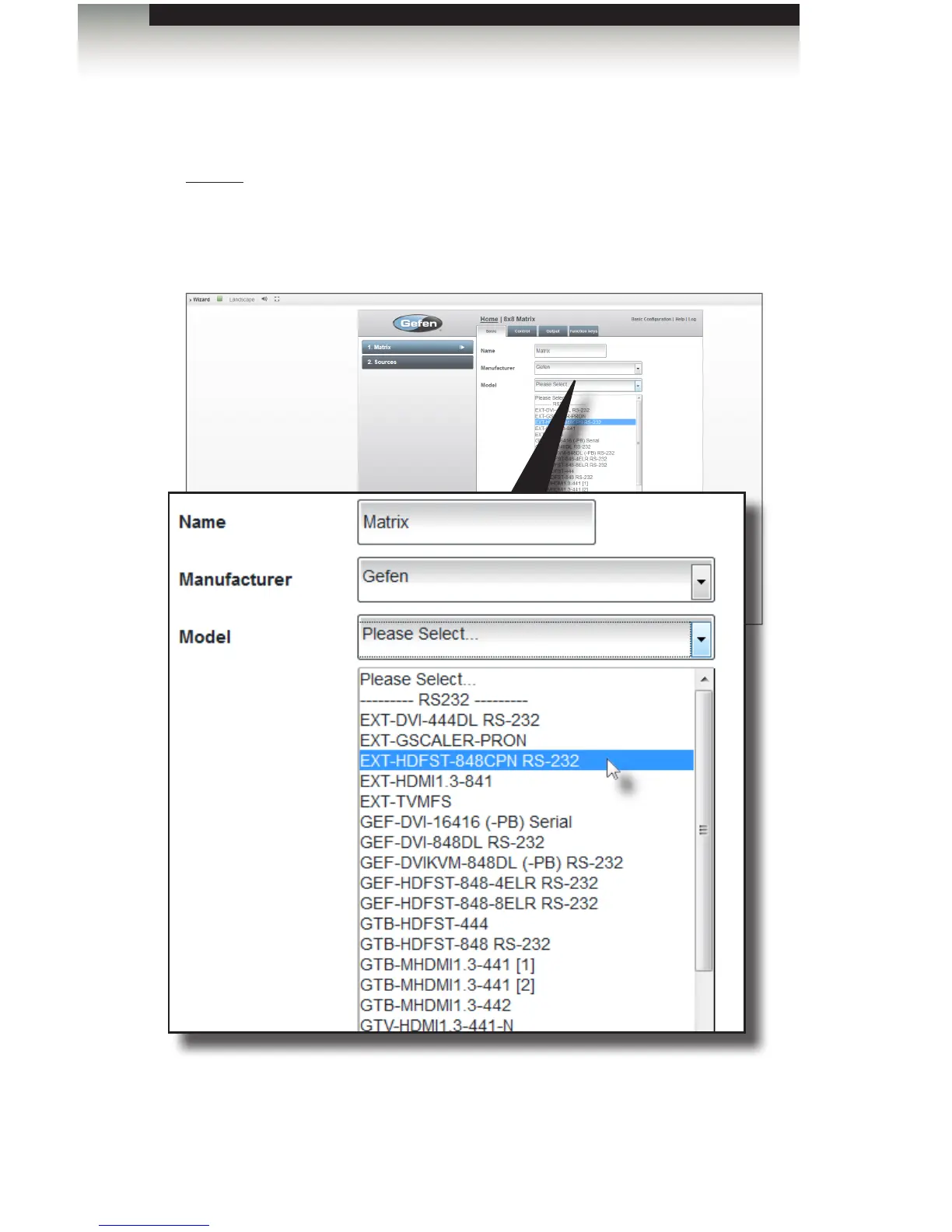

4. Enter a description of the source device in the Name eld. This name must be
different than the matrix name provided in step 2.
5. Use the drop-down lists to select the Manufacturer and Model of the source device.
6. Click the Next button in the lower-right corner of the screen to continue to the
Control tab.
